3.2 FIXING THE REAR OPERATOR MOUNTING

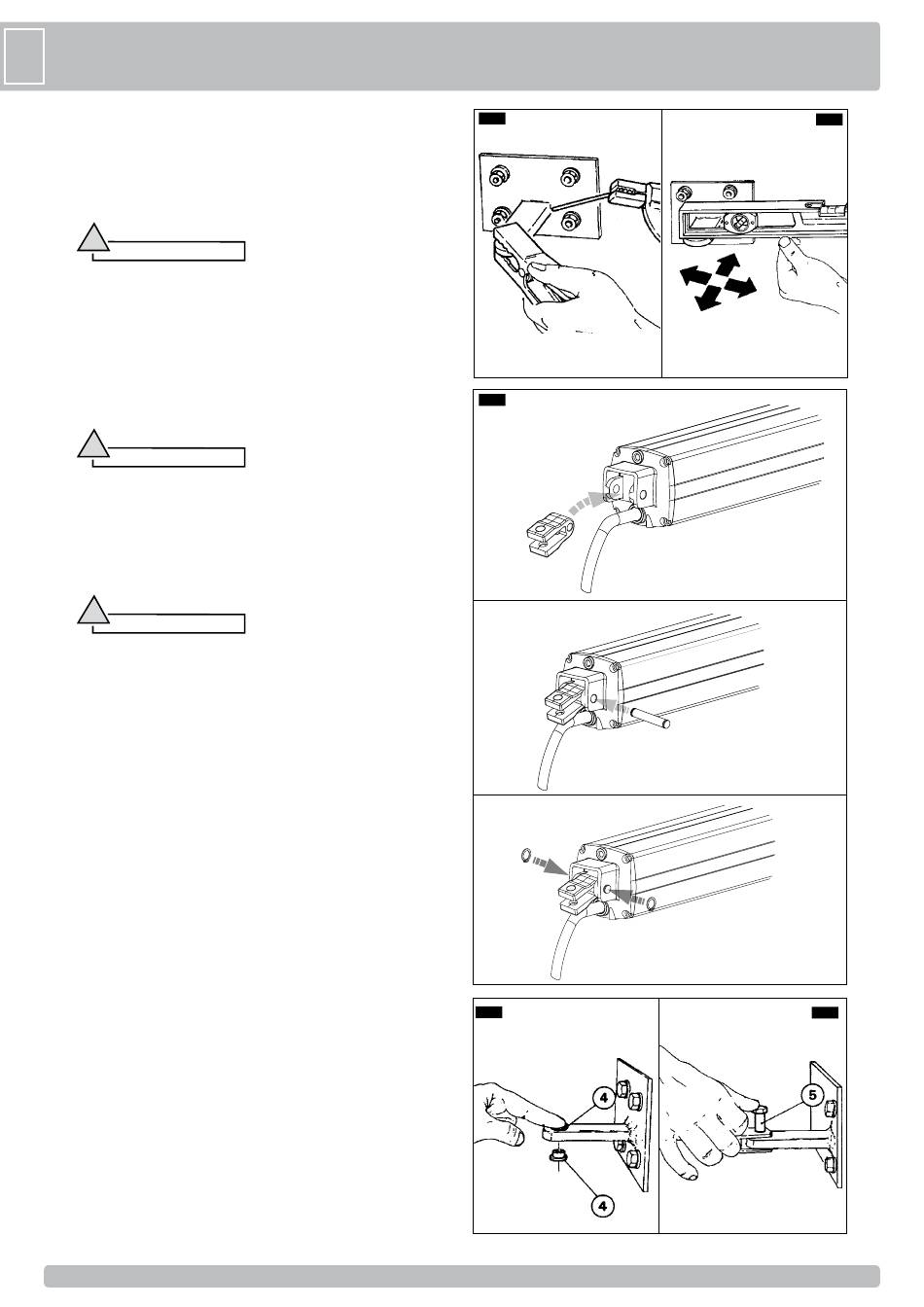

Position the rear mounting at the height previously measured and weld
it on the anchorage plate with two weld points (C11).
Check the lengthwise and crosswise alignment of the mounting (C12)
with a water level.
Complete the welding and clean away the residues with a wire
brush.
!
Warning
• Before welding, ensure that there are no bushes (B4 pos. 5)
in the mounting, and that the fitting hole is properly protected
from weld residues.
• When the welded zone has cooled down, apply a coat of anti-
rust paint.
3.3 TEMPORARY INSTALLATION OF THE
OPERATOR
Temporarily mount the operator to find the correct fixing position of
the front mounting.
!
Warning
Handle the operator with care during assembly.
Fit the fork (C13 pos. 1) to the operator bottom. Lock the fork with the
special pin (C13 pos. 2) and fix both with the two snap rings (C13
pos. 3).
Fit the two vibration damping bushes (C14 pos. 4) above and below
the mounting.
Position the fork of the operator on to the mounting and lock it with the
vertical pin (C15 pos. 5) after greasing abundantly.
!
Warning
Grease both the pin and the housings abundantly.
