Published on Jisc community (https://community.jisc.ac.uk)
Home > Advisory services > Video Technology Advisory Service > Product evaluations > Product evaluation reports >
Radvision XT5000 > Radvision XT5000 - Evaluation results main document
Radvision XT5000 - Evaluation results main
document
Radvision XT5000 - Evaluation results main document
Radvision XT5000
Manufacturer: RADVISION, an Avaya company
Model: XT5000
Software Version: 3.1.0.36
Optional Features and modifications: Nine Site Multipoint Conference Unit (MCU) 12 Mbit/s
Extended IP
Date of Test: 3rd ? 7th December 2012
Advertisement
Related Manuals for Avaya Radvision XT5000
Summary of Contents for Avaya Radvision XT5000
- Page 1 Published on Jisc community (https://community.jisc.ac.uk) Home > Advisory services > Video Technology Advisory Service > Product evaluations > Product evaluation reports > Radvision XT5000 > Radvision XT5000 - Evaluation results main document Radvision XT5000 - Evaluation results main document Radvision XT5000 - Evaluation results main document...

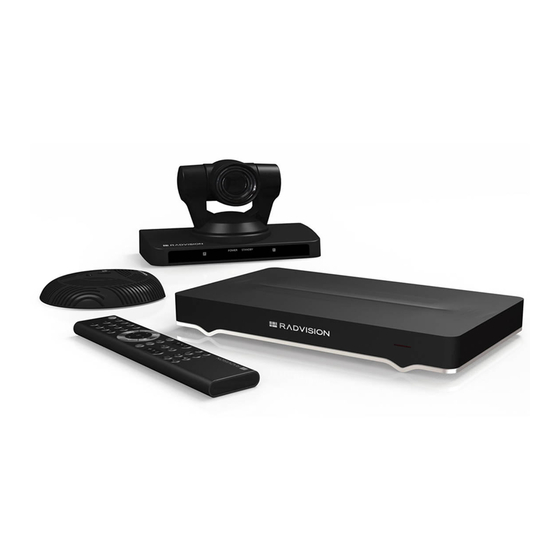

- Page 3 Setup Procedure Setting up the XT5000 system was straightforward. The compact CODEC and the HD camera can both be mounted adjacent to the picture monitor/s. A system microphone pod, infrared remote control and an external power supply completed the package. The connections for basic operation were clearly illustrated on the installation guide and in the documentation and involved: Mounting the camera adjacent to the monitor(s)
- Page 4 The basic CIF format resolution of 352 x 288 pixels. wCIF (512 x 288). Optimal resolution w448p (768 x 448). High definition w720p (1280 x 720). High definition w1080p (1920 x 1080). The achievable image resolution and frame rate are dependent not only on the call connection bandwidth but also on whether the ?Video Quality Sharpness? is set to ON or OFF.
- Page 5 POP is particularly useful when a single large screen display device such as a plasma/LCD panel or video/data protector is used as it permits greater flexibility in the choice of image layout. In single monitor mode a maximum of two images may be displayed, it is thus not possible to view the near, far and presentation images simultaneously.
- Page 6 The ?PIP? button on the remote control selects between the following layouts: Full screen of the far end image with near image PIP Near and far end images side by side POP Large far end image, small near image POP Full screen of the far end image The ?Layout? button swaps images around so for example it would toggle between Large far end image, small near image POP...
- Page 7 the set-up menu which adjusts the size of the display images to preserve all of the information. Presentation images from a PC may similarly be adjusted to avoid cropping. The PTZ (Pan Tilt and Zoom) 1080p HD camera supplied has a native resolution of 1920 x 1080 pixels and horizontal viewing angles of 70 degrees.
-
Page 8: System Operation
1920x1080 1920x1080 1280x720 1920x1080 1280x720 1920x1080 2Mbit/s 1280x720 1280x720 1280x720 1920x1080 1280x720 1920x1080 1Mbit/s 1280x720 1280x720 848x480 1920x1080 848x480 1920x1080 768 Kbit/s 848x480 848x480 512x288 1920x1080 848x480 1920x1080 384 Kbit/s 416x240 624x352 416x240 1920x1080 416x240 1920x1080 128 Kbit/s The reported frame rates in the table above reflect ?target? frame rates, for example in a lower bandwidth connection with significant motion within the image the actual frame rate achieved was observed to be significantly lower than the reported target. - Page 9 Image not found file:///var/privatewebfiles/privatefiles/public_images/on%20screen%20menu%20and%20remote%20control_0.JPG The remote control includes a comprehensive selection of single operation control buttons. As the same remote control is also used on the companies XT1000 CODEC the four multifunction colour coded buttons are redundant on the XT5000. The CODEC remote control includes a single start/finish presentation source button: Pressing this button for a short period selects the PC presentation source and opens an H.239 connection...
- Page 10 Image not found file:///var/privatewebfiles/privatefiles/public_images/web%20video.JPG The XT5000 proprietary microphone pod includes three microphones to guarantee 360 degree coverage, audio beam forming is used to steer the overall microphone pod pickup in the direction of the speaker. The pod includes a mute button; this button is illuminated red when muted.
- Page 11 Excellent DATA TESTS A PC may be directly connected to the XT5000 CODEC via the DVI-I interface. CONNECTIVITY H.323 There were no problems connecting between the Radvision XT5000 units. Time to Connect with encryption On H.323 All speeds 5 seconds...
- Page 12 During an H.323 call the network connection was removed and reconnected after a specific time. 5 Seconds Picture froze ?successful reconnection, call does not terminate 15 Seconds Picture froze ?successful reconnection, call does not terminate 30 Seconds Picture froze - call then terminates on network reconnection Connectivity with Other Machines (models listed with comments) H.323 Successful connections were made in each direction with the following CODECs, where the...
- Page 13 Connectivity with JANET Videoconferencing Service Cisco C60 (Prem Res) 6 Mbit/s w1080p @ 25 w720p @ 60 H.323 S/W TC4.2.1 The XT5000 system connected successfully to the Janet Codian MCU negotiating H.264 video at 720p resolution with corresponding audio coding of AAC-LD 64Kb/s receive and Cisco C90 (Prem G.722.1 48Kb/s transmit.
