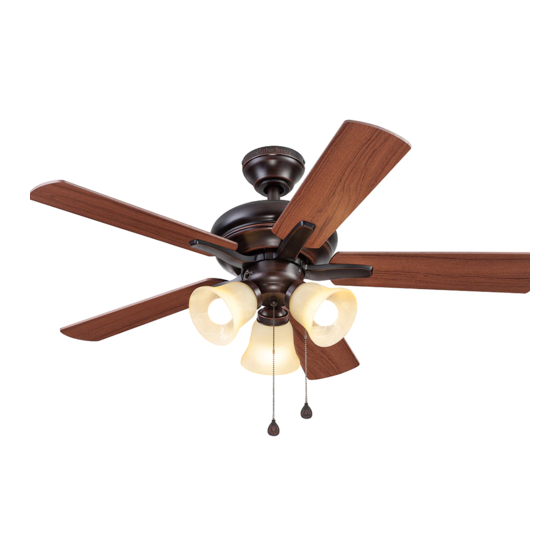

Lansing ceiling fan

Advertisement

Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
BM18022
ITEM #0176493, 0179178, 0922357, 0922356

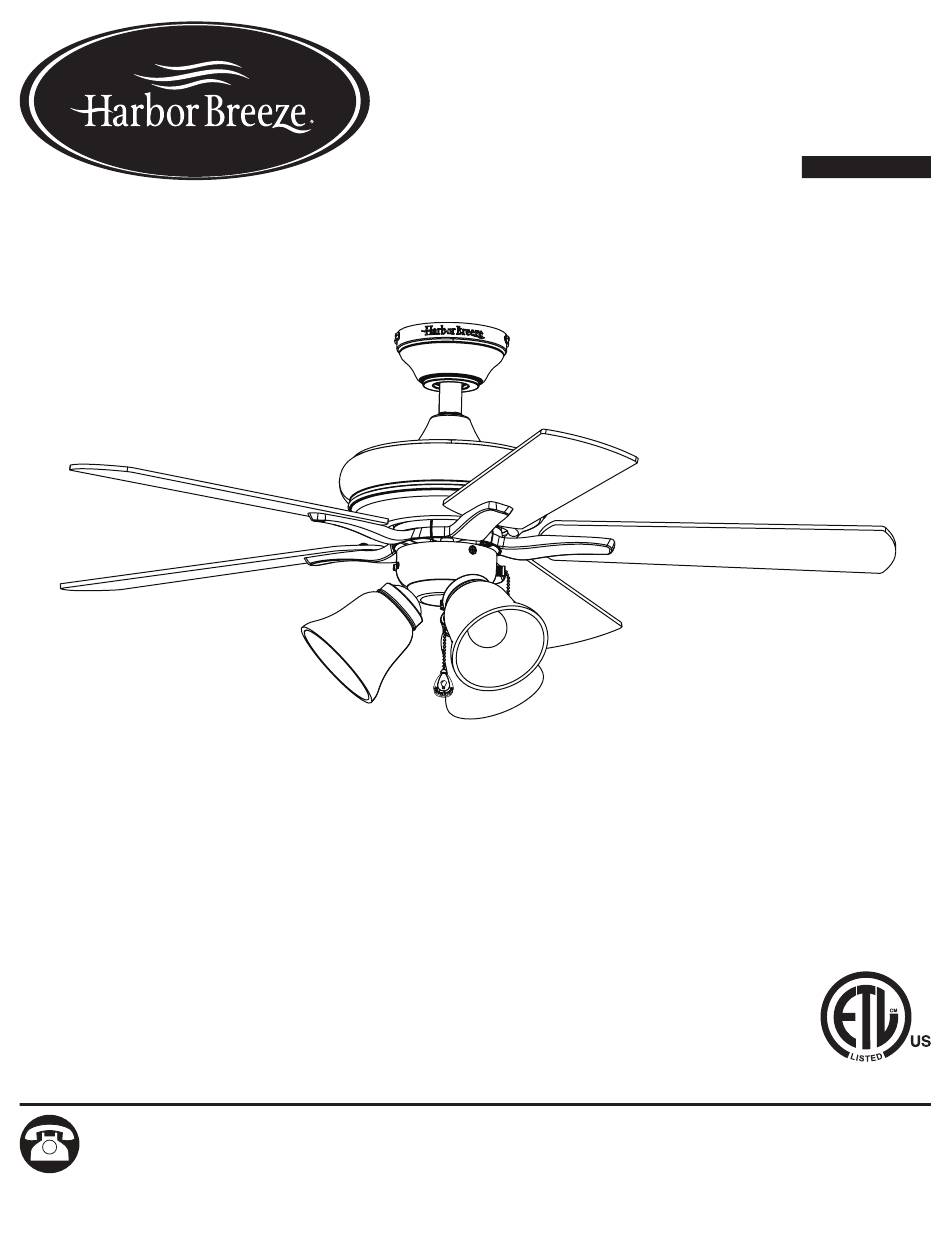

LANSING CEILING FAN
MODEL #40948, 40949, 41108, 41107
1
Español p. 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 41107 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harbor Breeze 41107

  • Page 1 ITEM #0176493, 0179178, 0922357, 0922356 LANSING CEILING FAN MODEL #40948, 40949, 41108, 41107 Español p. 21 Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents ..............3 Hardware Contents .
  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket (preassembled to Canopy [E]) Canopy Canopy Cover (preassembled to Canopy [E]) Light Kit Glass Shade Motor Assembly Fitter Plate (preassembled to Motor Assembly [I]) Yoke Cover Blade Arm Blade...
  • Page 4: Hardware Contents

    HARDWARE CONTENTS Wire Blade Screw Blade Washer Pull Chain Extension Connector Qty. 15 Qty. 15 Qty. 2 Qty. 3 + 1 extra + 1 extra + 1 extra Motor Screw 1 extra...
  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199.
  • Page 6: Preparation

    SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured.
  • Page 7: Initial Installation

    INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft.
  • Page 8 INITIAL INSTALLATION 4. Loosen all four mounting bracket screws (R), then completely remove the two mounting bracket screws (R) from the round holes of canopy (E). Set aside for later use. Detach mounting bracket (D) from canopy (E). 5. Attach mounting bracket (D) to outlet box (not Standard and included) using screws and washers provided with the Closemount...
  • Page 9: Standard Or Angled Mounting Instructions

    STANDARD OR ANGLED MOUNTING INSTRUCTIONS 1. Remove the downrod clip (C) and downrod pin (B) from the downrod (A). Then partially loosen the set screws (P) in the yoke at the top of the motor assembly (I). Yoke 2. Insert the downrod (A) through the canopy (E) and yoke cover (K).
  • Page 10 STANDARD OR ANGLED MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested that you do so in the following manner: Take the lead wires and make sure that you have pulled them all the way through the top of the downrod and measure 8 in.
  • Page 11: Closemount Instructions

    CLOSEMOUNT INSTRUCTIONS Helpful Hint: The downrod (A), canopy cover (F) and yoke cover (K) are not used in this type of installation. 1. Remove the canopy cover (F) from the bottom of the canopy (E). 2. Remove three Phillips-head closemount screws (Q) from the top of the motor assembly (I).
  • Page 12: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
  • Page 13: Final Installation

    FINAL INSTALLATION Note: Closemount installation will not have the downrod (A), yoke cover (K) or canopy cover (F). 1. Align the canopy (E) over the loosened mounting bracket screws (R) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (R) and rotate the canopy (E) clockwise.
  • Page 14 FINAL INSTALLATION 3. Partially insert three blade screws (BB) along with three blade washers (CC) through one blade (M) and into one blade arm (L). Tighten each blade screw (BB) with a Phillips screwdriver (not included), starting with the one in the middle.
  • Page 15 FINAL INSTALLATION 6. Assemble the light kit (G) to the fitter plate (J) using the previously removed fitter plate screws (S). 7. Screw the twist-on glass shades (H) onto the sockets of the light kit (G). 8. Install bulbs (N) into the sockets of the light kit (G). Important: Make sure to allow the bulbs (N) and light kit (G) to cool before you replace the bulbs.
  • Page 16 FINAL INSTALLATION 9. Attach the pull chain extensions (DD) or custom pull chain extensions (not included) to the fan and light pull chains. Hardware Used Light Pull Fan Pull Pull Chain Chain Chain Extensions 10. Turn on power supply to the fan. Assembly is complete.
  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS 1. The fan pull chain has four positions to control the fan speed. One pull is HIGH, two is MEDIUM, three is LOW, and four turns the fan OFF. The pull chain in the center of the light kit (G) turns the lights ON and OFF. Light Pull Chain Fan Pull Chain 2.
  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Bulb Replacement: Use 60-watt max.
  • Page 19: Limited Lifetime Warranty

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan operates 1. The bulb(s) not installed 1. Re-install the bulb(s). correctly. correctly, but 2. Ensure that the male and female the lights are 2. The light kit wire plugs are not plugs in the light kit fitter are not working (if connected properly.
  • Page 20: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. PART DESCRIPTION 0179178 & 176493 & 0922356 0922357 PART # PART # Downrod 4L000006400 4L000006340...
