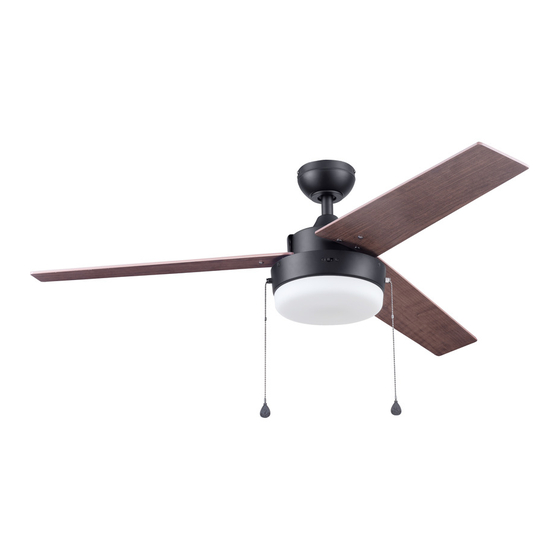

CANTLEY CEILING FAN
1
ITEM #43105036, 1607179
MODEL #41557
Français p. 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CANTLEY 41557 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harbor Breeze CANTLEY 41557

Summary of Contents for Harbor Breeze CANTLEY 41557

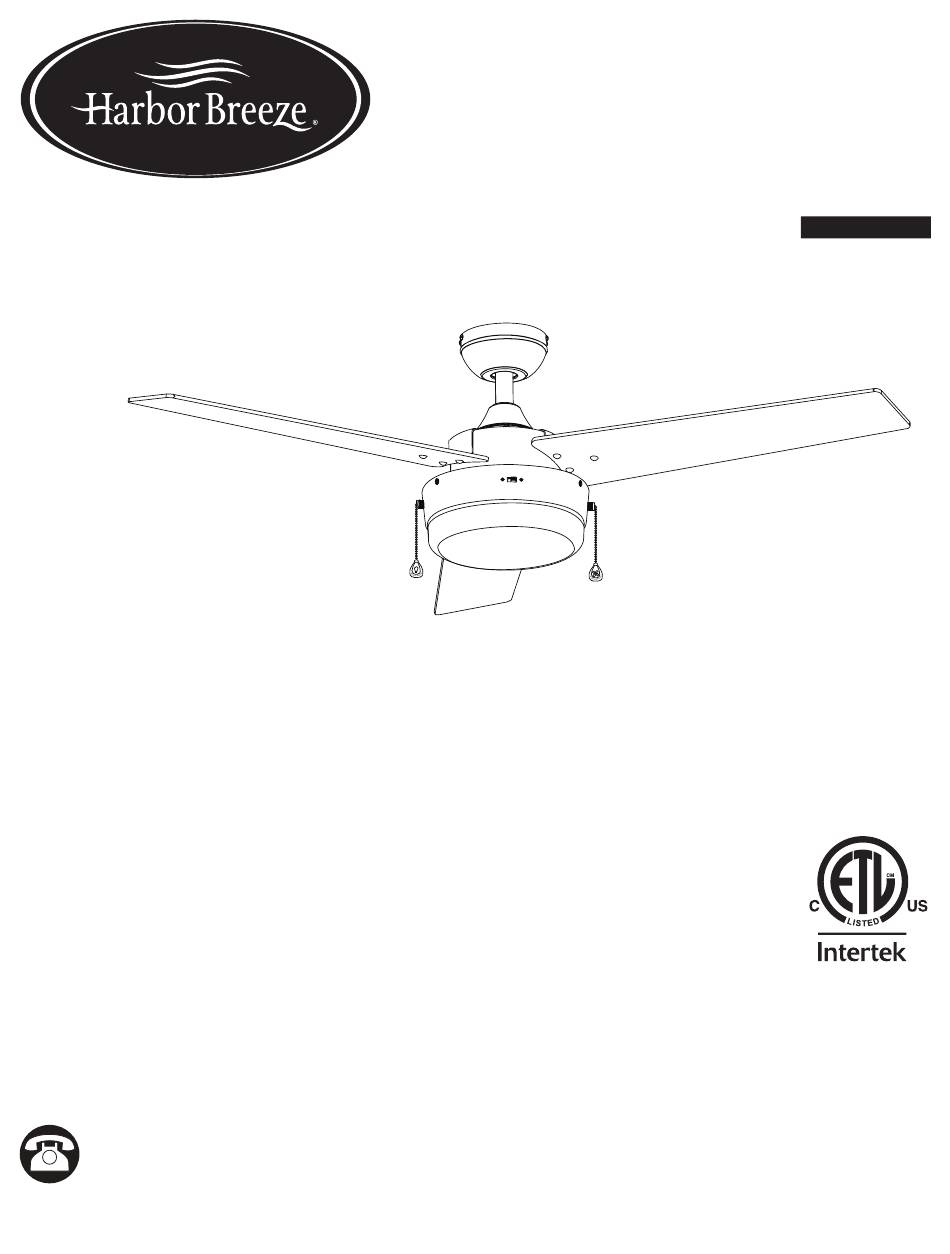

  • Page 1 ITEM #43105036, 1607179 CANTLEY CEILING FAN MODEL #41557 Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Français p. 21 ATTACH YOUR RECEIPT HERE Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents..............3 Hardware Contents.

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Mounting Bracket Canopy (preassembled to Mounting Bracket [D]) Canopy Cover Motor Assembly Fitter Plate (preassembled to Motor Assembly [G]) Fitter Plate Screw (preassembled to Fitter Plate [H]) Motor Screw (preassembled to Motor Assembly [G]) Set Screw (preassembled to Motor Assembly [G]) Yoke Cover...

  • Page 4: Hardware Contents

    HARDWARE CONTENTS (shown actual size) Wire Connector Blade Screw Blade Washer Pull Chain Extension Qty. 3 Qty. 9 Qty. 9 Qty. 2 + 1 extra + 1 extra + 1 extra Secondary Support Support Washer Screw Cap Secondary Spring Motor Screw Screw Qty.

  • Page 5: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199.

  • Page 6: Preparation

    SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured.

  • Page 7: Initial Installation

    INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Standard Mounting is best suited for ceilings 8 ft.
  • Page 8 INITIAL INSTALLATION 4. Loosen all four mounting bracket screws (P) on mounting bracket (D), then completely remove the two mounting bracket screws (P) from the round holes of canopy (E). Set aside for later use. Detach mounting bracket (D) from canopy (E). 5.

  • Page 9: Standard Or Angle Mounting Instructions

    STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Remove the downrod pin (B) and downrod clip (C) from the downrod (A). Then partially loosen the set screws (K) in the yoke at the top of the motor assembly (G). 2. Insert the downrod (A) -- or a longer downrod, if Braided required -- through the canopy (E) and yoke cover (L).
  • Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Depending on the length of downrod you use, you may Braided Cable need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner: Take the lead wires and make sure you have pulled them all the way through the top of the downrod.

  • Page 11: Secondary Hanging System

    SECONDARY HANGING SYSTEM WARNING: Secondary support is required for this Braided Cable product. Failure to follow the steps below could result in property damage and/or personal injury. 1. Feed the loop of the braided cable, preassembled to the motor assembly (G), up through the outlet box mounted Brace in the ceiling.

  • Page 12: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

  • Page 13: Final Installation

    FINAL INSTALLATION 1. Align the canopy (E) over the loose mounting bracket screws (P) preassembled on mounting bracket (D). Place the keyholes of the canopy (E) onto the mounting bracket screws (P) and rotate the canopy (E) clockwise. Secure the canopy (E) with the mounting bracket screws (P) previously removed (Step 4, page 8).
  • Page 14 FINAL INSTALLATION 4. Remove one of the fitter plate screws (I) from the fitter plate (H) and loosen (do not remove) the other two screws. Then, insert the wires from the motor assembly (G) through the hole in the light pan (S). Attach the light pan (S) to the fitter plate (H) by twisting the light pan (S) until the loosened fitter plate screws (I) engage the key slots on light pan (S).
  • Page 15 FINAL INSTALLATION 7. Attach the glass bowl (R) to the light kit (M) by twisting the glass bowl (R) tightly in a clockwise direction until it is secure. 8. Attach pull chain extensions (DD) to the pull chains. Note: When facing the reverse switch on the light kit (M), the fan pull chain is on the right and the light pull chain is on the left.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS 1. The pull chain has four positions to control the fan speed. One pull is HIGH, two is MEDIUM, three is LOW, and four turns the fan OFF. The light pull chain is used to turn the lights ON or OFF. Light Pull Chain Fan Pull Chain 2.

  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not recommended for this item.
  • Page 18 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades and/or blade 1. Check and tighten all screws that hold arms are loose. the fan blades to the blade arms and the blade arms to the motor. 2. The blades are unbalanced. 2.

  • Page 19: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.

  • Page 20: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Downrod 4L000010280 Mounting Bracket 4L000004480 Canopy 4L000006320 Canopy Cover 4L000008290 Yoke Cover 4A000003540 Light Kit 4L000012090 Blade Arm (x 3) 4A073750003...

This manual is also suitable for:

431050361607179

Table of Contents
