Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
XXXXXXX

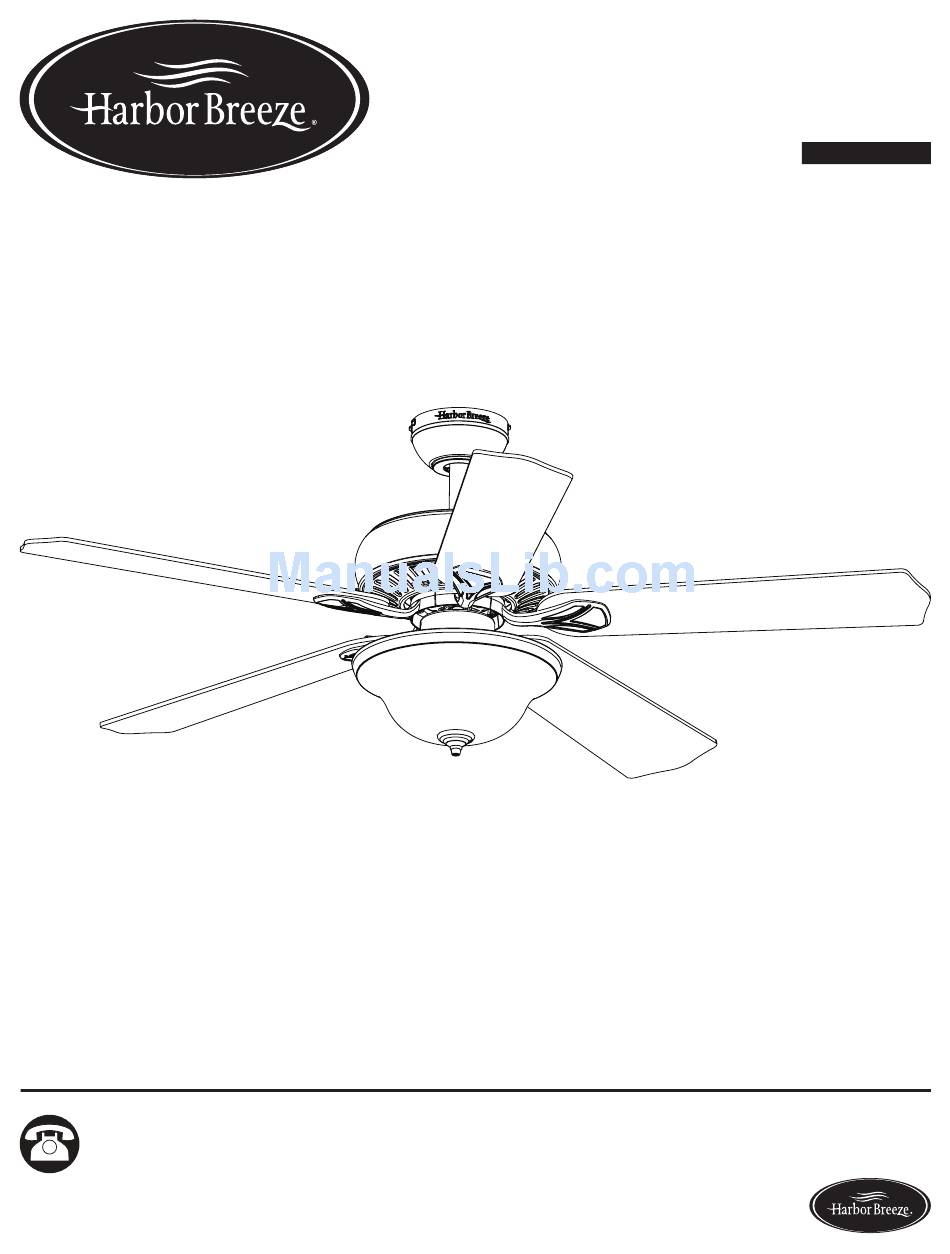

CROSSWINDS II CEILING FAN
Purchase Date _________________________
1
ITEM #0599849, 0599656, 0599848
MODEL #40821, 40823, 40822
Lowes.com/harborbreeze
Español p. 23
Advertisement
Table of Contents
Related Manuals for Harbor Breeze 40821
Summary of Contents for Harbor Breeze 40821
- Page 1 ITEM #0599849, 0599656, 0599848 CROSSWINDS II CEILING FAN MODEL #40821, 40823, 40822 Español p. 23 Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Serial Number _________________________ Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ..............3 Hardware Contents . -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Downrod Downrod Pin (preassembled to Downrod [A]) Downrod Clip (preassembled to Downrod [A]) Canopy Mounting Bracket (preassembled to the Canopy [D]) Canopy Cover (preassembled to Canopy [D]) Motor Assembly Switch Housing (preassembled to Motor Assembly [G]) Switch Housing Cap (preassembled to Light Kit [J]) Light Kit Finial Cap (preassembled to Light Kit [J]) -
Page 4: Hardware Contents
HARDWARE CONTENTS (shown actual size) Plug Button Wire Connector Qty. 1 Qty. 1 +1 extra Lowes.com/harborbreeze... -
Page 5: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. -
Page 6: Preparation
SAFETY INFORMATION CAUTION: Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present. CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are secured. -
Page 7: Initial Installation
INITIAL INSTALLATION 1. Turn off the circuit breakers and the wall switch to the fan supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Determine the mounting method to use. Helpful Hint: Standard mounting is best suited for ceilings 8 ft. - Page 8 INITIAL INSTALLATION 4. Loosen all four mounting brackets screws (W), then completely remove the two mounting bracket screws (W) from the round holes of canopy (D). Set aside for later use. Detach mounting bracket (E) from canopy (D). Note: Do NOT remove the mounting bracket screws (W) from the slotted holes.
-
Page 9: Standard Or Angle Mounting Instructions
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 1. Partially loosen the two set screws (X) in the yoke at the top of the motor assembly (G) to allow for installation of the downrod (A). Yoke 2. Remove the downrod pin (B) and downrod clip (C) from the downrod (A). - Page 10 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 4. Install the ball end of the downrod (A) into the opening of the mounting bracket (E). Rotate the fan in the mounting bracket (E) until a slot in the ball end of the downrod (A) engages the tab in the mounting bracket (E).
-
Page 11: Closemount Instructions
CLOSEMOUNT INSTRUCTIONS 1. Remove and discard the canopy cover (F) from the bottom of the canopy (D). Note: The downrod (A) and canopy cover (F) are not used in this type of installation. 1. Remove the three Phillips-head closemount screws (Y) from the top of the motor assembly (G). -
Page 12: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12 gauges and/or there is more than one house wire to connect to the fan lead wire (red), consult an electrician for the proper size wire connectors to use. -
Page 13: Final Installation
FINAL INSTALLATION Note: Downrod (A) is shown/referenced, but instructions are applicable to both standard and closemount-style installations. Closemount installation will not have the downrod (A) or canopy cover (F). 1. Read and discard the paper tag attached to the wire hooks. - Page 14 FINAL INSTALLATION 3. Align the canopy (D) over the loose mounting bracket screws (W) preassembled on mounting bracket (E). Place the keyholes of the canopy (D) onto the mounting bracket screws (W) and rotate the canopy (D) counterclockwise. Note: While raising the canopy (D), avoid pinching wiring or antenna from the receiver of remote pack (P) between the mounting bracket (E) and the canopy (D).
- Page 15 FINAL INSTALLATION Note: If you wish to install the fan without the light kit, proceed to step 11. 6. To install the light kit (J), first remove all three switch housing screws (V) from the switch housing cap (I). Then connect the single-pin connectors from the switch housing (H) to the single-pin connectors Single-pin from the light kit (J) -- blue to black and white to white.
- Page 16 FINAL INSTALLATION 9. Remove the preassembled finial (L), finial cap (K), hex nut (T) and rubber washer (S) from the light kit (J). 10. Lift the glass bowl (M) onto the threaded rod at the bottom of the light kit (J). Re-install rubber washer (S) and secure with hex nut (T). Lift the finial cap (K) onto the threaded rod, securing with finial (L). Proceed to step 13. 11.
- Page 17 FINAL INSTALLATION 12. Remove all three switch housing screws (V) from the switch housing cap (I). Align the notch in the switch housing cap (I) with the reverse switch located on switch housing (H), then re-install all three switch housing screws (V).
-
Page 18: Operating Instructions
OPERATING INSTRUCTIONS 1. Remove the battery cover from the back of the remote Remote found in remote pack (P). Insert the battery from remote pack (P) into the remote; ensure polarity of LED Indicator battery matches the polarity indicated in the battery compartment -- positive (+) to positive (+) and negative (-) to negative (-). -
Page 19: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection. Bulb Replacement: Use 40-watt max. candelabra-base bulbs or CFL equivalent. Battery Replacement for Remote: Use A23 12-volt battery. - Page 20 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. The blades are loose. 1. Check and tighten all screws that hold the fan blades to the blade arms and the 2. There is a cracked blade. motor. 3. The outlet box is not secure. 2.
-
Page 21: Limited Lifetime Warranty
LIFETIME LIMITED WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 22: Replacement Parts List
0599849-K 0599656-K 0599848-K Blade Arm 0599849-L 0599656-L 0599848-L Blade 0599849-M 0599656-M 0599848-M Remote Pack 0599849-O 0599656-O 0599848-O Hardware Kit 0599849-HW 0599656-HW 0599848-HW Printed in China Harbor Breeze ® is a registered trademark of LF, LLC. All Rights Reserved. 9085 • 051614 Lowes.com/harborbreeze...
