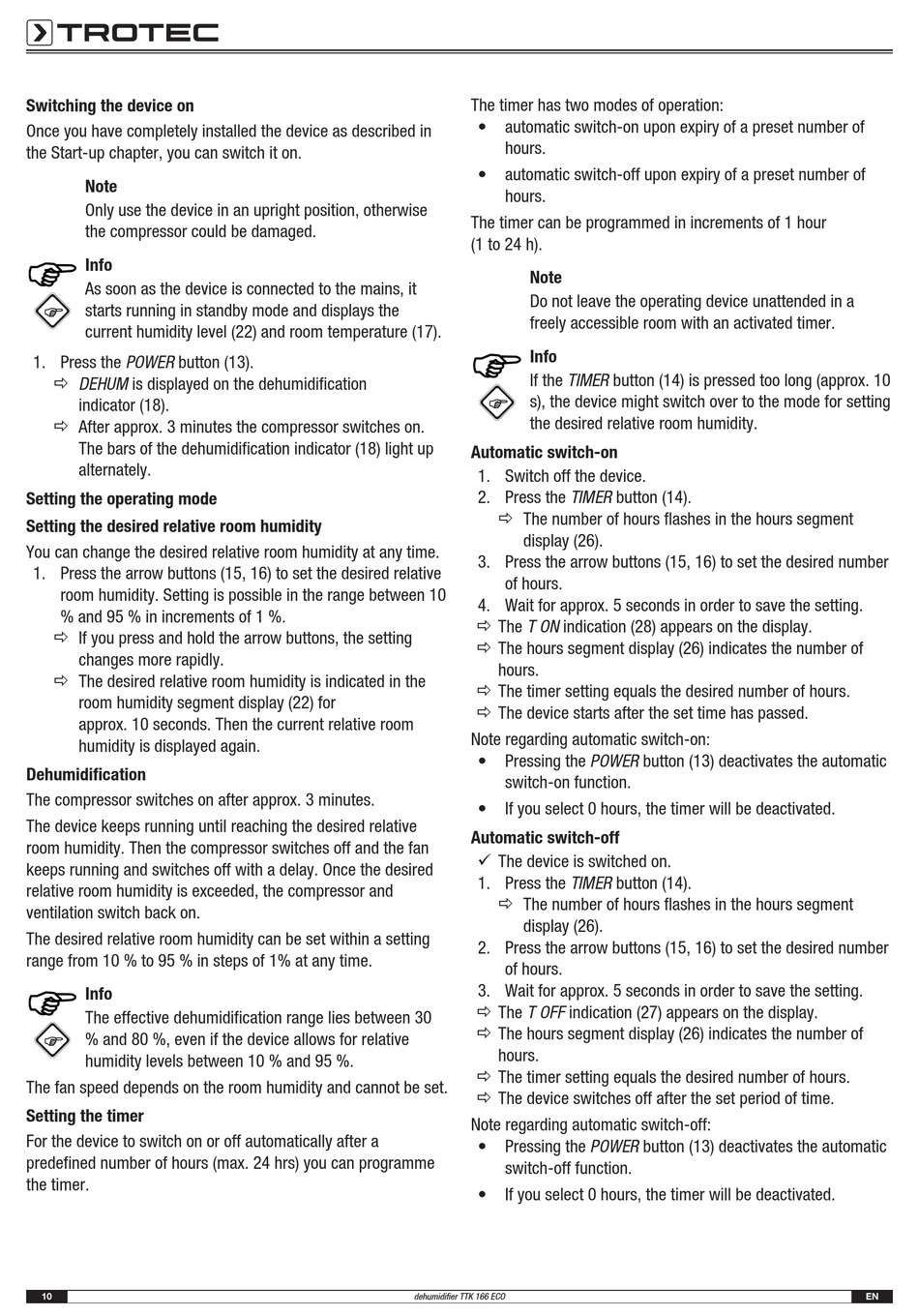

Trotec TTK 166 ECO Operating Manual page 10

Switching the device on
Once you have completely installed the device as described in
the Start-up chapter, you can switch it on.
Note
Only use the device in an upright position, otherwise
the compressor could be damaged.
Info
As soon as the device is connected to the mains, it
starts running in standby mode and displays the
current humidity level (22) and room temperature (17).
1. Press the POWER button (13).
ð DEHUM is displayed on the dehumidification
indicator (18).
ð After approx. 3 minutes the compressor switches on.
The bars of the dehumidification indicator (18) light up
alternately.
Setting the operating mode
Setting the desired relative room humidity
You can change the desired relative room humidity at any time.
1. Press the arrow buttons (15, 16) to set the desired relative
room humidity. Setting is possible in the range between 10
% and 95 % in increments of 1 %.
ð If you press and hold the arrow buttons, the setting
changes more rapidly.
ð The desired relative room humidity is indicated in the
room humidity segment display (22) for
approx. 10 seconds. Then the current relative room
humidity is displayed again.
Dehumidification
The compressor switches on after approx. 3 minutes.
The device keeps running until reaching the desired relative
room humidity. Then the compressor switches off and the fan
keeps running and switches off with a delay. Once the desired
relative room humidity is exceeded, the compressor and
ventilation switch back on.
The desired relative room humidity can be set within a setting
range from 10 % to 95 % in steps of 1% at any time.
Info
The effective dehumidification range lies between 30
% and 80 %, even if the device allows for relative
humidity levels between 10 % and 95 %.
The fan speed depends on the room humidity and cannot be set.
Setting the timer
For the device to switch on or off automatically after a
predefined number of hours (max. 24 hrs) you can programme
the timer.
10
The timer has two modes of operation:
• automatic switch-on upon expiry of a preset number of
hours.
• automatic switch-off upon expiry of a preset number of
hours.
The timer can be programmed in increments of 1 hour
(1 to 24 h).
Note
Do not leave the operating device unattended in a
freely accessible room with an activated timer.
Info
If the TIMER button (14) is pressed too long (approx. 10
s), the device might switch over to the mode for setting
the desired relative room humidity.
Automatic switch-on
1. Switch off the device.
2. Press the TIMER button (14).
ð The number of hours flashes in the hours segment
display (26).
3. Press the arrow buttons (15, 16) to set the desired number
of hours.
4. Wait for approx. 5 seconds in order to save the setting.
ð The T ON indication (28) appears on the display.
ð The hours segment display (26) indicates the number of
hours.
ð The timer setting equals the desired number of hours.
ð The device starts after the set time has passed.
Note regarding automatic switch-on:
• Pressing the POWER button (13) deactivates the automatic
switch-on function.
• If you select 0 hours, the timer will be deactivated.
Automatic switch-off
ü The device is switched on.
1. Press the TIMER button (14).
ð The number of hours flashes in the hours segment
display (26).
2. Press the arrow buttons (15, 16) to set the desired number
of hours.
3. Wait for approx. 5 seconds in order to save the setting.
ð The T OFF indication (27) appears on the display.
ð The hours segment display (26) indicates the number of
hours.
ð The timer setting equals the desired number of hours.
ð The device switches off after the set period of time.
Note regarding automatic switch-off:
• Pressing the POWER button (13) deactivates the automatic
switch-off function.
• If you select 0 hours, the timer will be deactivated.
