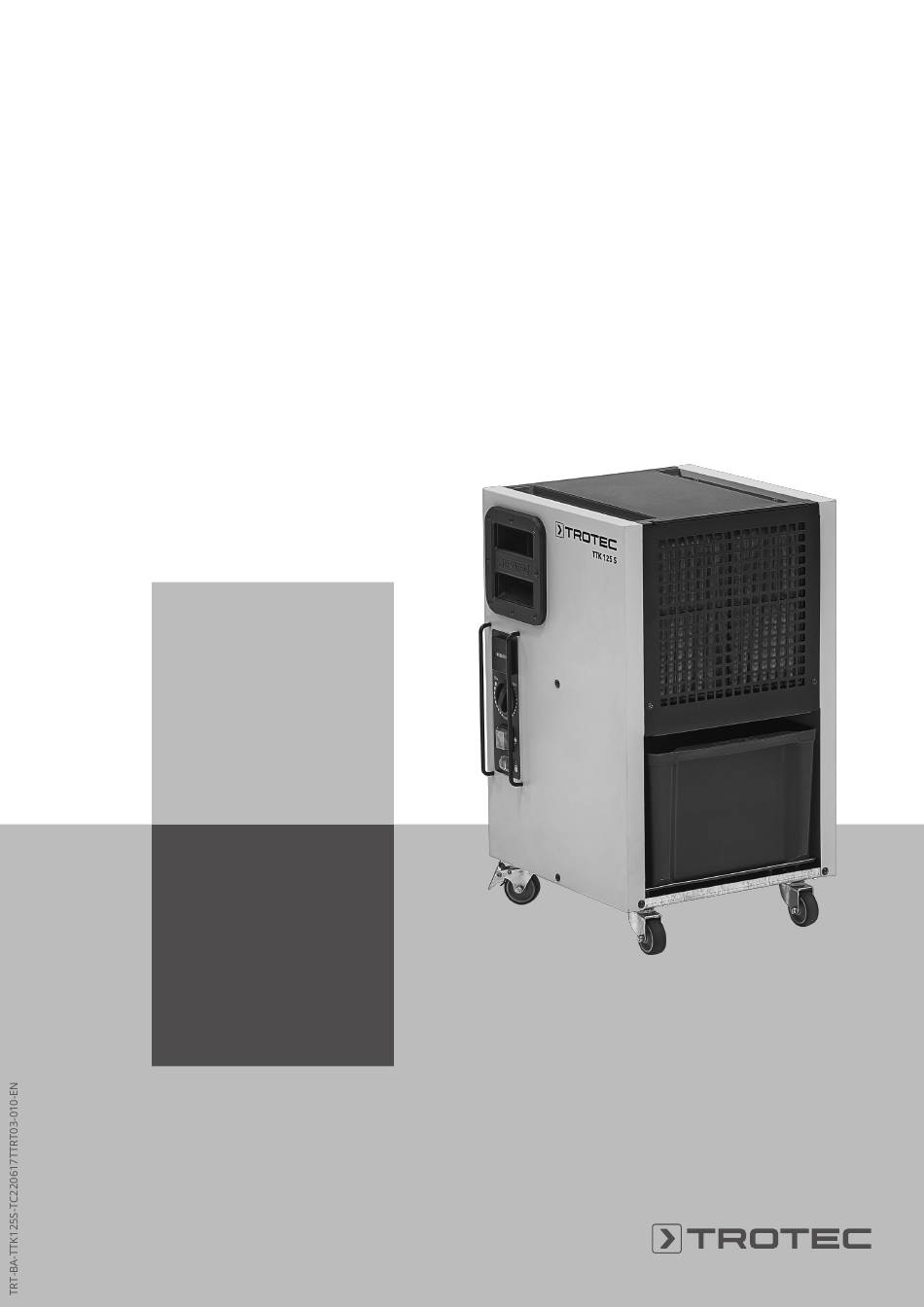

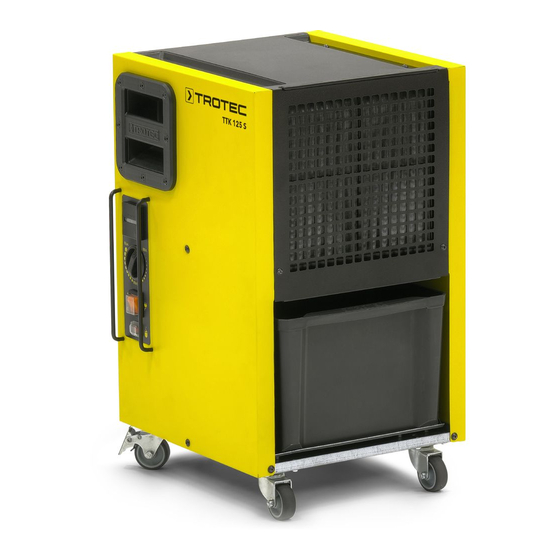

- Page 1 TTK 125 S ORIGINAL INSTRUCTIONS DEHUMIDIFIER...
-
Page 2: Table Of Contents
• Only put up the device in an upright, stable position on firm ground. • Let the device dry out after a wet clean. Do not operate it when wet. dehumidifier TTK 125 S... - Page 3 • Discharge the collected condensate before transport and repaired by specialist companies for cooling and air- storage. Do not drink it. Health hazard! conditioning or by Trotec. dehumidifier TTK 125 S...
- Page 4 P410+P403 – Protect from sunlight. Store in a well- ventilated place. Warning of electrical voltage Work on the electrical components must only be carried out by an authorised specialist company! dehumidifier TTK 125 S...
-
Page 5: Information About The Device
Connection for optional condensate pump mains socket. Hose connector for condensation drain hose 3. Do not reconnect a defective device to the mains. Condensation tank Wheels Control panel Air outlet Carrying handle Air filter dehumidifier TTK 125 S... -
Page 6: Transport And Storage
(e.g. open flames, an active gas appliance or an • Place no further devices or objects on top of the device to electric heater). prevent it from being damaged. • Only put up the device in an upright, stable position on firm ground. dehumidifier TTK 125 S... - Page 7 Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. • Make sure that the air filter is installed before switching the device on. dehumidifier TTK 125 S...
- Page 8 TTK 125 S...
-
Page 9: Operation
The device does not have the appropriate protection class for use in wet rooms. There is a risk of electric shock! Never use the device in wet rooms (e.g. in laundry rooms) and never immerse the device in water! dehumidifier TTK 125 S... - Page 10 Max. Directive 2004/22/EC). The kWh display is factory-calibrated Automatic defrost and may be used for accounting purposes. Contact your Trotec If the room temperature is below 11 °C, the evaporator will customer service. freeze during dehumidification. The device will then carry out an The Status LED (15) flashes once a second during normal...
-
Page 11: Available Accessories
Only use accessories and additional equipment specified in the instructions. Using insertion tools or accessories other than those specified in the instructions may cause a risk of injury. Designation Article number Air filter TTK 125 S 7.160.000.006 External condensate pump 6.100.003.030 Protective cover 6.100.003.101... -
Page 12: Errors And Faults
Wait for at least 10 minutes after maintenance and specialist company or by Trotec. repair work. Only then switch the device back on. The device is running, but there is no formation of... -
Page 13: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... dehumidifier TTK 125 S... - Page 14 Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. dehumidifier TTK 125 S...
- Page 15 S S T T A A T T U U S S TANK FULL If the condensation tank is full or not installed correctly, the Condensation tank LED (14) will be illuminated. The compressor and fan will switch off. dehumidifier TTK 125 S...
-
Page 16: Technical Annex
45635-01-KL3) Dimensions (length x width x 375 x 345 x 603 mm height) Minimum distance to walls and other objects A: top: 50 cm B: rear: 50 cm C: side: 50 cm D: front: 50 cm Weight 26 kg dehumidifier TTK 125 S... - Page 17 Wiring diagram With operating hours counter dehumidifier TTK 125 S...
- Page 18 With operating hours counter and MID counter dehumidifier TTK 125 S...
- Page 19 Exploded assembly drawing Info The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions. dehumidifier TTK 125 S...
- Page 20 Spare parts list TTK 125 S No. Spare part No. Spare part No. Spare part Baseplate Condensates water pan Humidistat Main frame Water tank Electronic controller Control´s side panel Air filter Hour counter Left panel Plastic grip Main switch Air outlet grille...
-
Page 21: Disposal
Declaration of conformity in accordance with the EC Machinery Trotec GmbH Directive 2006/42/EC, Annex II, Part 1, Section A Grebbener Straße 7, D-52525 Heinsberg We – Trotec GmbH – declare in sole responsibility that the Phone: +49 2452 962-400 product designated below was developed, constructed and E-mail: info@trotec.de produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC. - Page 22 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
