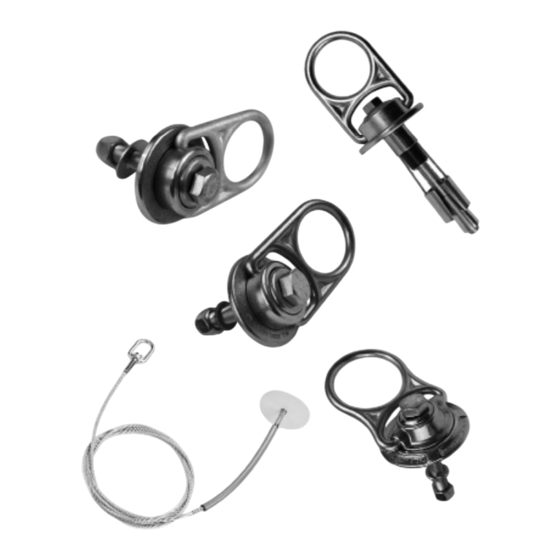

Honeywell Miller RACDTA-5K6/6FT User Instruction Manual

Swivel anchors
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for Honeywell Miller RACDTA-5K6/6FT

  Summary of Contents for Honeywell Miller RACDTA-5K6/6FT

  • Page 2: Table Of Contents

    Table of Contents 1.0 General Requirements, Warnings and Limitations......3-4 2.0 Purpose....................4 3.0 Warnings and Limitations..............4-5 3.1 Compatibility Limitations 4.0 Drop Through Anchor................6 5.0 Zinc Plated Swivel Anchor..............7 6.0 Stainless Steel Swivel Anchors............10 7.0 Zinc Plated Swivel Anchors..............14 8.0 Hybrid Concrete Anchor..............19 Product Labels...................
  • Page 3: General Requirements, Warnings And Limitations

    Us er Ins tru ct ion s - Engl is h Thank You Thank you for your purchase of Miller fall protection equipment manufactured by Honeywell Safety Products. Miller brand products are produced to meet the highest standards of quality at our ISO 9001 certifi ed facility.
  • Page 4: Purpose

    Us er Ins tru ct ion s - Engl is h Do not allow equipment to come in contact work area to make sure potential fall path with anything that will damage it including, is clear. but not limited to, sharp, abrasive, rough Allow adequate fall clearance below the or high-temperature surfaces, welding, work surface.
  • Page 5: Compatibility Limitations

    Us er Ins tru ct ion s - Engl is h This anchorage connector should not be used as part of a horizontal lifeline system that has not been designed and or approved to be used with 5,000-lbf anchorage connectors. Always work directly under the anchor point to avoid a swing-fall injury.
  • Page 6: Drop Through Anchor

    Warnings and Limitations • Use only with Honeywell-approved personal fall arrest or restraint systems. The anchorage must have the strength capable of supporting a static load, applied in the directions permitted by the system, of at least 5,000-lbf (22kN) in the absence of certification.
  • Page 7: Zinc Plated Swivel Anchor

    Warnings and Limitations • Use only with Honeywell-approved personal fall arrest or restraint systems. The anchorage must have the strength capable of supporting a static load, applied in the directions permitted by the system, of at least 5,000-lbf (22kN) in the absence of certification.
  • Page 8 Us er Ins tru ct ion s - Engl is h 7” (178mm) Torque: 60ft-lbs 4” min (102mm) 180˚ 2.25”ø (57.15mm) 8.0”ø (203.2mm) 5.5” (139.7mm) 360˚ 3.0” (76.2mm)
  • Page 9 Us er Ins tru ct ion s - Engl is h LOADING CONDITIONS DIAGRAM LOAD LOAD LOAD LOAD ACCEPTABLE ACCEPTABLE ACCEPTABLE IMPROPER STEEL MOUNTING 1/2”-13 Lock Nut Torque : 45 ft-lbs (61 Nm) 1/2” Lock Washer tapered 1/2”-13 x 4” washer Hex Bolt * drill 1/2”...
  • Page 10: Stainless Steel Swivel Anchors

    Warnings and Limitations • Use only with Honeywell-approved personal fall arrest or restraint systems. The anchorage must have the strength capable of supporting a static load, applied in the directions permitted by the system, of at least 5,000-lbf (22kN) in the absence of certification.
  • Page 11 Us er Ins tru ct ion s - Engl is h CONCRETE MOUNTING - Use a proper drill & bit for concrete. (SDS drill bit) - Drill a 7/8” (22mm) hole no less than 3” to 3-1/2“ (76mm-89mm) deep 9” (229mm) away from any edge.
  • Page 12 Us er Ins tru ct ion s - Engl is h STEEL MOUNTING 5/8”-11 Lock Nut Torque Range: 75 ft-lbs. * Use tapered washer with I- (100Nm) beams that have tapered flanges 5/8” Lock Washer drill 5/8” (16mm)Ø 5/8”-11x4” Hex Bolt * 1/4"...
  • Page 13 Us er Ins truc tion s - En gli s h PART NUMBER KIT CONTENTS RACSWS1SBA-316 (Steel Mounting Hardware Kit) RACSWS100S-316 (Swivel with Steel Mounting kit) RACSWS1DNC-316 (Concrete Hardware Kit) RACSWS100C-316 (Swivel with Concrete Mounting Kit) RACSWP100N-316KIT (Weld-on Mounting Kit) RACDNC-TOOL (Concrete Anchor Tool)
  • Page 14: Zinc Plated Swivel Anchors

    Warnings and Limitations • Use only with Honeywell-approved personal fall arrest or restraint systems. The anchorage must have the strength capable of supporting a static load, applied in the directions permitted by the system, of at least 10,000-lbf (22kN) in the absence of certification.
  • Page 15 Us er Ins tru ct ion s - Engl is h LOADING CONDITIONS DIAGRAM LOAD LOAD LOAD LOAD ACCEPTABLE ACCEPTABLE IMPROPER ACCEPTABLE STEEL MOUNTING 5/8”-11 Torque Range: Lock Nut 75-90 ft-lbs * Use tapered washer with I-beams (100-120 Nm) that have tapered flanges 5/8”...
  • Page 16 Us er Ins tru ct ion s - Engl is h CONCRETE MOUNTING - Use a proper drill & bit for concrete. (SDS drill bit) - Drill a 3/4” (19mm) hole no less than 5” (127mm) deep 9” (229mm) away from any edge. - Hole must be straight &...
  • Page 17 Us er Ins tru ct ion s - Engl is h BACK PLATE MOUNTING Back Plate to be used with 5/8” (16mm) bolts or all thread. Drill hole perpendicu- lar into surface so bolt can pass freely through the substrate. Nut must be fully threaded on the bolt to insure maximum strength ratings and integrity of anchor.
  • Page 18 Us er Ins truc tion s - En gli s h PART NUMBER KIT CONTENTS RACSWY1SBA (Steel Mounting Hardware Kit) RACSWY100S (Swivel with Steel Mounting kit) RACSWY1CSA (Concrete Hardware Kit) RACSWY100C (Swivel with Concrete Mounting Kit) RACSWP100N-KIT (Weld-on Mounting Kit) RACSWX100N (Backing Plate Only)
  • Page 19: Hybrid Concrete Anchor

    Warnings and Limitations • Use only with Honeywell-approved personal fall arrest or restraint systems. The anchorage must have the strength capable of supporting a static load, applied in the directions permitted by the system, of at least 10,000-lbf (22kN) in the absence of certification.
  • Page 20 Us er Ins tru ct ion s - Engl is h LOADING CONDITIONS DIAGRAM LOAD LOAD LOAD LOAD ACCEPTABLE ACCEPTABLE ACCEPTABLE IMPROPER Tensile Strength (UTS): 10,000-lbf (44kN) Working Load (WLL): 1.000 lbs (454kg) Maximum Capacity: One worker, 310 lbs (140kg) Weight: 2.0-lbs (949g) Regulatory Compliance: ANSI Z359.1-2007, ANSI Z359.7- 2011, OSHA 1910.66 , 1926.502...
  • Page 21 Us er Ins tru ct ion s - Engl is h Check for kinked or frayed cables. Look for signs of wear on spoons. Swivel should move freely. INSPECT BEFORE USE Check for deformation of cone. INSTALLATION: 1. Before installing make sure the 2.
  • Page 22 Us er Ins tru ct ion s - Engl is h REMOVAL: 1. Loosen bolt so that at least 3/4” (1.9cm) of threads are exposed. Unscrew min of 3/4” (1.9cm) Step 1. 2. Use a hammer to tap down bolt and disengage cone from the spoons.
  • Page 23 Servicing of Miller fall protection equipment must only be carried out by Honeywell Safety Prod- ucts or persons or entities authorized in writing by Honeywell. A record log of all servicing and inspection dates for this device must be maintained. Only original Honeywell replacement parts are approved for use in this device.
  • Page 24: Product Labels

    Us er Ins tru ct ion s - Engl is h Product Labels Étiquettes de Produit Etiquetas del Producto LABEL LOCATIONS 5K Swivel AnchorRAC- SWY050N 5K Stainless Steel 5k S.S. Swivel Anchor Zinc Plated Steel Max Capacity: Swivel Anchor (1) person 310-lbs Model: RACSWY100N Working Load 2,000-lbs RACSWY100N...
  • Page 25 Us er Ins tru ct ion s - Engl is h 5K Drop-Through Swivel Anchor RACDTA-5K/ Polyurethane Sleeve 4"0 3/16" Plate Aircraft Cable (Length Specified by Customer)
  • Page 26 Us er Ins tru ct ion s - Engl is h 10k Swivel Anchor Zinc Plated Steel Model: RACSWY100N Max Capacity: 10K Zinc-Plated Steel (1) person 310-lbs Working Load 2,000-lbs Swivel Anchor WARNING: All persons using this equipment must read, understand and follow all instructions.
  • Page 27: Inspection And Maintenance Log

    Inspection and Maintenance Log Registre D'inspection et D'entretien Registro de Inspección y Mantenimiento DATE OF MANUFACTURE:_________________________________________________ DATE DE FABRICATION / FECHA DE FABRICACIÓN MODEL NUMBER:________________________________________________________ NUMÉRO DE MODÈLE / NÚM. DE MODELO DATE PURCHASED:______________________________________________________ DATE D’ACHAT / FECHA DE COMPRA INSPECTION MAINTENANCE CORRECTIVE...
  • Page 28 ® GARANTÍA DE SATISFACCIÓN TOTAL En Honeywell Safety Products y sus predecesores, hemos estado brindando la calidad de la marca Miller en equipos de protección de caída a millones de trabajadores alrededor del mundo desde 1945. GARANTÍA LIMITADA DE POR VIDA NOS RESPALDAN MÁS DE 65 AÑOS EN LA FABRICACIÓN DE EQUIPO ANTICAÍDAS...
  • Page 29 Us er Ins tru ct ion s - Engl is h...
  • Page 30 Toll Free: 800.873.5242 Fax: 800.892.4078 Download this manual at: www.millerfallprotection.com Téléchargez ce manuel à l’adresse: www.millerfallprotection.com Puede bajar por Internet este manual en: www.millerfallprotection.com Honeywell Safety Products P.O. Box 271, 1345 15th Street Franklin, PA 16323 USA...
