EXPERT GRILL XG17-096-034-18 Owner's Manual

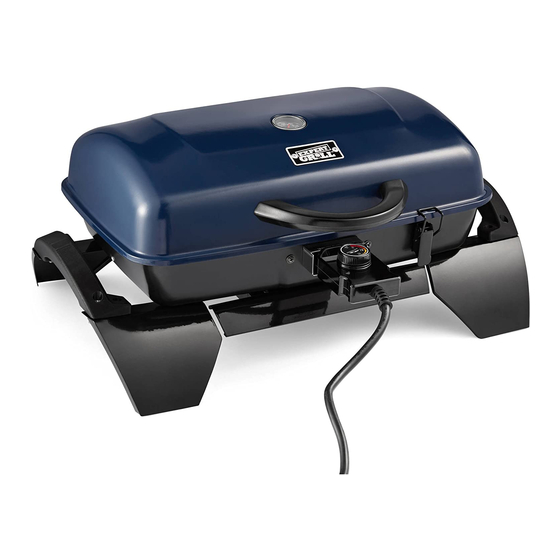

Tabletop electric grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Tabletop Electric Grill
Model No.
XG17-096-034-18
WARNING
FOR YOUR SAFETY:For Outdoor Use Only (outside any enclosure)
DANGER
Do NOT use electric grill for indoor cooking or heating. NOT to be used in or on boats or
recreational vehicles.
Do NOT operate this appliance unattended.
Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily
injury or death, or in a fire or an explosion causing damage to property.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XG17-096-034-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EXPERT GRILL XG17-096-034-18

Summary of Contents for EXPERT GRILL XG17-096-034-18

  • Page 1 Tabletop Electric Grill Model No. XG17-096-034-18 WARNING FOR YOUR SAFETY:For Outdoor Use Only (outside any enclosure) DANGER Do NOT use electric grill for indoor cooking or heating. NOT to be used in or on boats or recreational vehicles. Do NOT operate this appliance unattended.

  • Page 2: For Your Safety

    Model No. XG17-096-034-18 FOR YOUR SAFETY 1. Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. 2. When cooking with oil/grease, do NOT allow the oil/grease to exceed 350ºF (176.5ºC). Do NOT store or use extra cooking oil in the vicinity of this or any other appliance.
  • Page 3 Model No. XG17-096-034-18 is exercised. 17. If a longer detachable power-supply cord or extension cord is used: a. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance; and b.

  • Page 4: Operating Instructions

    Model No. XG17-096-034-18 gasoline and other flammable vapors and liquids. Minimum clearance from sides and back of unit to combustible construction is 36 inches (91.4 cm). Do NOT use this appliance under any type of overhang or roof. Do NOT alter grill in any manner. Any alteration will void your warranty.
  • Page 5 Model No. XG17-096-034-18 Important Safeguards......Page 1 Preparation............5 Exploded View........... 6 Parts List............7 Hardware & Tools..........8 Assembly Instruction........9 Operating Instructions........14 Cleaning and Care........... 15 Limited Warranty..........17 Preparation DO NOT RETURN PRODUCT TO STORE. For assistance, please call toll free number 1-855-328-4769 or email customerservice@sanxinint.com .Please have your owner’s manual...
  • Page 6 Model No. XG17-096-034-18 Page 6...

  • Page 7: Parts List

    Model No. XG17-096-034-18 Parts List Part Part Image Image Description Description Side Handle Leg A Thermometer Thermometer Leg B Fixing Piece Lid Handle Lock Cooking Fire Bowl Grate Heating Fire Bowl Element Hinge Grease Tray Lid Hinge Temperature Lid Reflector...
  • Page 8 Model No. XG17-096-034-18 Hardware Part Part Image Image Description Description M5*12 Hinge Screw Cotter Washer Wing Nut Wing Nut M5*20 Screw Tools Required for Assembly (Not Included) Phillips Head Screwdriver Page 8...

  • Page 9: Thermometer Fixing Piece 1

    Model No. XG17-096-034-18 Step 1 Set the Heat Reflector Panel (16) inside the lid,assemble Lid handle (4) and Lid Hinge (15) with hardware component as shown. Step 2 Attach Thermometer (2) with Thermometer Fixing Piece (3) on Lid (1). Page 9...
  • Page 10 Model No. XG17-096-034-18 Step 3 Attach Fire Bowl Hinge (14) and Lock (12) on Fire Bowl (13). Step 4 Attach Heating Element (6) on Fire Bowl (13). Page 10...
  • Page 11 Model No. XG17-096-034-18 Step 5 Assemble Leg A (10), Leg B (11) and Side Handle (9). Step 6 Attach grill leg / Side Handle on Fire Bowl (13) as shown. Page 11...

  • Page 12: Cooking Grate

    Model No. XG17-096-034-18 Step 7 Attach Lid to the Fire Bowl with Hinge Pin and Cotter Pin as shown. Step 8 Set Cooking Grate in the grill. Page 12...

  • Page 13: Grease Tray (

    Model No. XG17-096-034-18 Step 9 Slide Grease Tray (7) under Fire Bowl. Step 10 Plug Temperature Control Cord/Assembly (8) into the grill. Page 13...
  • Page 14 Model No. XG17-096-034-18 Lock Lid Unlock Lid Page 14...

  • Page 15: Extension Cord

    Model No. XG17-096-034-18 Figure 1 Extension Cord Note : This grill functions best WITHOUT an extension cord. 1. The short cord is provided for safety. 2. An extension cord may be used with care. 3. If an extension cord is necessary: •...

  • Page 16: Turning Off

    Model No. XG17-096-034-18 4. Plug the temperature control assembly into the grill Figure 5 (Figures 5 and 6). 5. Plug the other end into a dry GFI 3-prong outlet, per “Grounding Instructions.” 6. Adjust the settings on the temperature control assembly to desired level.

  • Page 17: Cleaning Surfaces

    Model No. XG17-096-034-18 Cleaning Surfaces 1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water. 2. For stubborn stains, use a citrus-based degreaser and a nylon scrubbing brush. 3. Rinse clean with water. 4. Allow to air dry.
  • Page 18 Model No. XG17-096-034-18 electric Bazhou Sanxin Steel Pipe Co.,Ltd Address:Xin’an Town, Bazhou City, Hebei Province, China Page 18...
