CIRCUIT BOARD DISASSEMBLY

Note: Before removing the main circuit board, be sure to shortcircuit the laserdiode output land.
After replacing the main circuit board, open the land after inserting the flexible connector.
(Refer to Mechanism Disassembly)
1. Disassemble Main circuit board, Jack
circuit board, Power circuit board and
MD Ass'y DPM1.

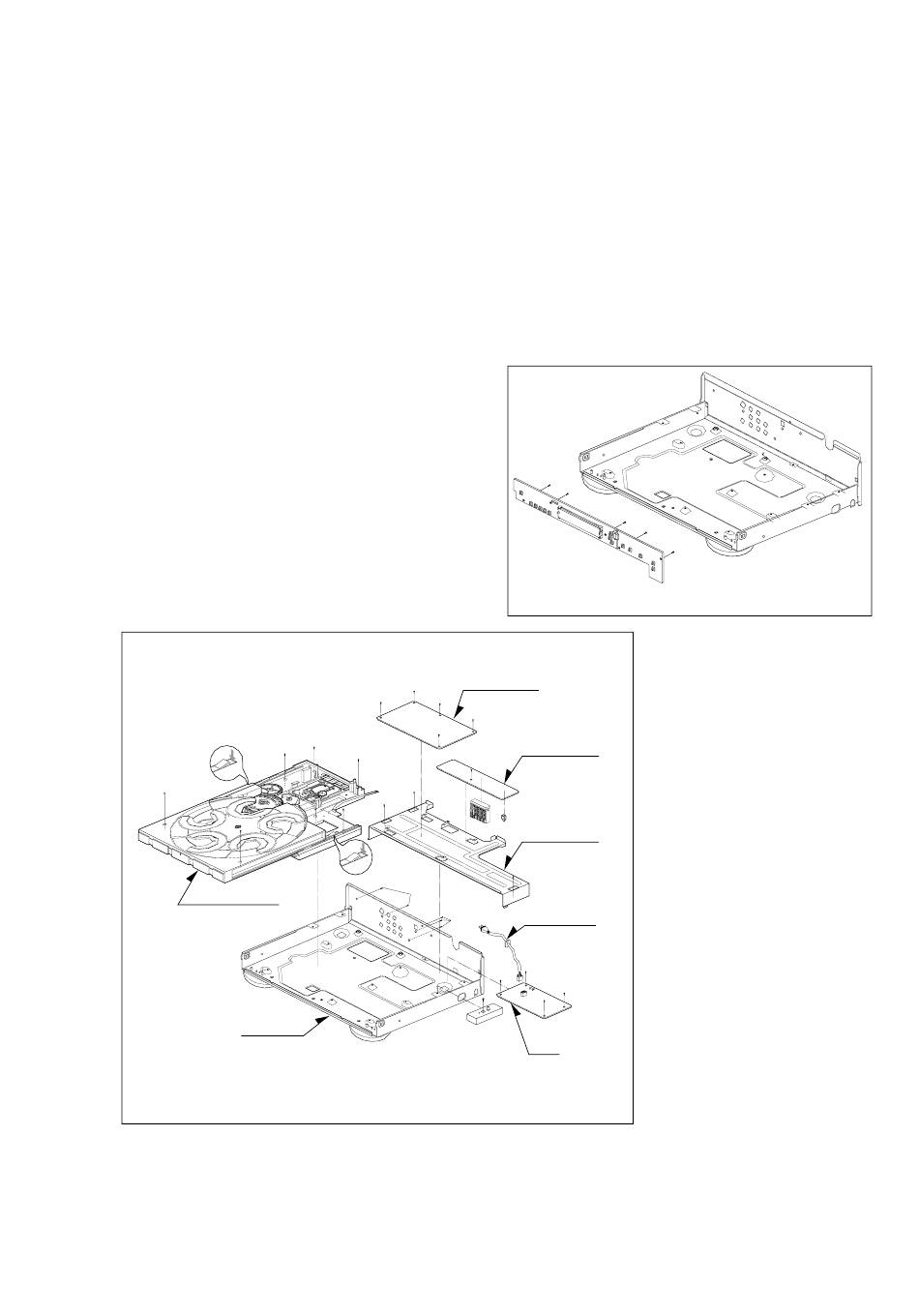

1. Remove the top case.(See Fig. 2-1)
2. Remove 10 screws (B).
3. Disassemble Main circuit board and Jack circuit
board from Bracket Main.
4. Unscrew 3 screws(C) at Bracket Main.
5. Disassemble Bracket Main from Main chassis.
6. Unscrew 4 screws(D) at MD Ass'y DPM1.
7. Turn the portion the direction of arrow to move
the Base Assembly Tray in front of you.
8. Release the other 3 screws(E).
9. Disassemble MD Ass'y DPM1 from Main chassis.
10. Unscrew 4 screws(F) at Power circuit.
11. Disassemble power circuit board from Main
chassis.
(E)
(L1)
(D)
(D)
MA Ass'y Dpm1
Main Chassis
All manuals and user guides at all-guides.com
Main Circuit Board
(B)
(B)
(B)
(B)
(D)
(D)
(C)
(C)
(E)
(E)
(L1)
(B)
(B)
Fig. 2-4
2. Digitron and Key Circuit Board
1. Remove the front panel.(See Fig. 2-3)
2. Release 5 screws (G), and remove the digitron
circuit board.
(G)
(G)
(G)
(G)
Fig. 2-5
Jack Circuit Board
Bracket Main
(C)
Power Code
(F)
(F)
(F)
(F)
Power
Circuit
Board
11
(G)
