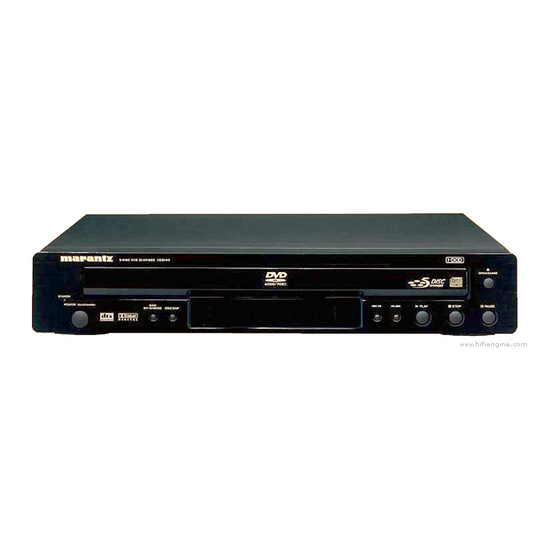

Marantz VC4400 Service Manual

5 disc dvd changer
Hide thumbs Also See for VC4400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

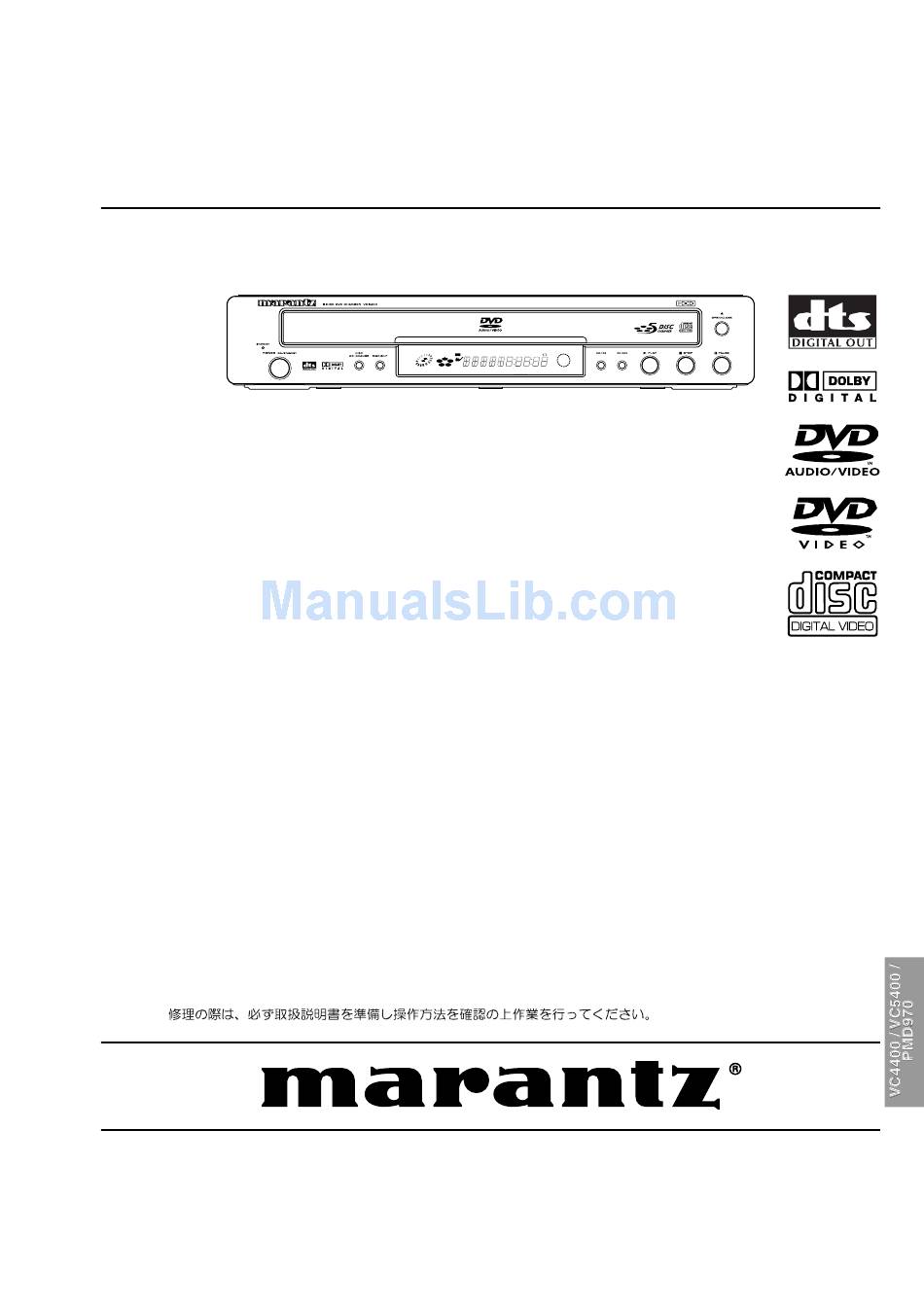

Service
Manual
VC5400
SECTION
1. TECHNICAL SPECIFICATIONS ................................................................................................... 1
2.INFORMATIONS ............................................................................................................................ 2
3. SERVICE HINTS AND TOOLS...................................................................................................... 4
4. WARNING AND LASER SAFETY INSTRUCTIONS ..................................................................... 5
5. TAKING THE DISC OUT OF EMERGENCY ................................................................................. 7
6. SERVICE MODE........................................................................................................................... 8
7. BLOCK DIAGRAM ...................................................................................................................... 10
8. SCHEMATIC DIAGRAM.............................................................................................................. 15
9. EXPLODED VIEW AND PARTS LIST ......................................................................................... 27
10. ELECTRICAL PARTS LIST ......................................................................................................... 31
DECK MECHANISM PARTS LOCATIONS ..................................................................................... 4-1
DECK MECHANISM DISASSEMBLY ............................................................................................. 4-2
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
VC4400 / VC5400 / PMD970
Printed on 100% Recycled Paper
Printed in Japan
MP3 VCD HD CD
DVD
A
TITLE
CHP/TRK
PROG.
RANDOM ALL
1
2
5
3
4

TABLE OF CONTENTS

VC4400 /
VC5400 /
PMD970 /
5 Disc DVD Changer
PAGE
Part no. 30AW855010
First Issue 2003.08
U1B
U1B
U1B
ecm
