8. DISASSEMBLY

CAUTION BEFORE STARTING SERVICING
Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to take a
proper grounding treatment as required.
Many screws are used inside the unit. To prevent missing, dropping, etc. of the screws, always use a
magnetized screw driver in servicing. Several kinds of screws are used and some of them need special
cautions. That is, take care of the tapping screws securing molded patrs and fine pitch screws used to secure
metal parts. If they are used improperly, the screw holes will be easily damaged and the parts can not be fixed.

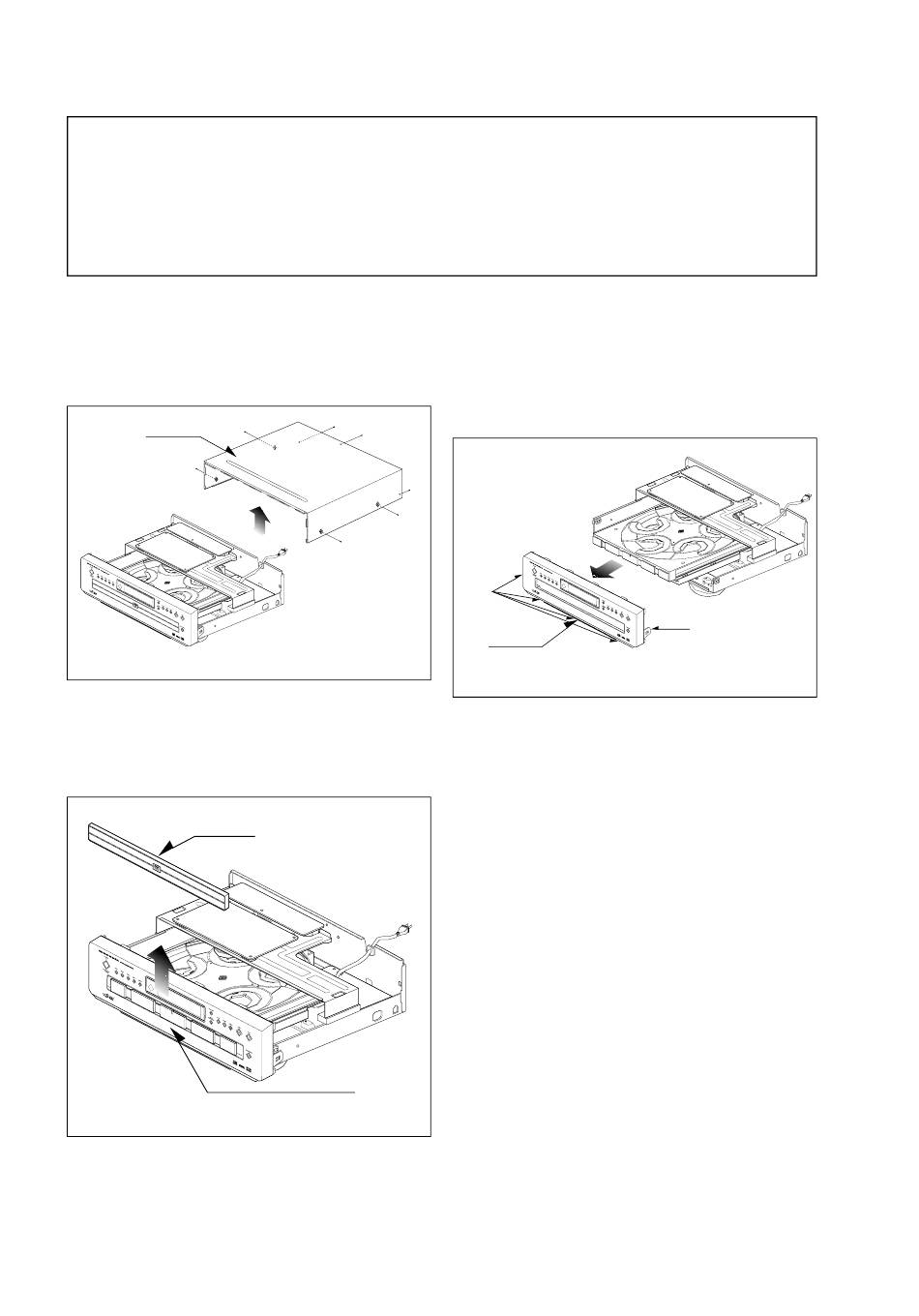

CABINET DISASSEMBLY
1. Top Case
1. Release 7 screws (A). (See Fig. 2-1)
2. Lift the top case with holding the back of it,
and remove it in the direction of the arrow.
(A)
Top Case
(A)
Fig. 2-1
2. Tray Door
1.Eject the disc tray.
2.Lift up the tray door in the direction of the
arrow.
Tray Door
Fig. 2-2
All manuals and user guides at all-guides.com
3. Front Panel
1. Eject the disc tray. (See Fig. 2-2)
2. Remove the tray door. (See Fig. 2-2)
3. Pull the front panel toward you while pressing
(A)
(A)
(A)
(A)
(A)
Stopper
REMARK
Press OPEN/CLOSE button to open the tray.
If the tray does not work, please refer page 14.
(3. Taking out the disc)
Disc Tray
10
5 stoppers to disengage, and remove the front
panel. (See Fig. 2-3)
Front Panel
Fig. 2-3
Stopper
