Ubiquiti USW-Industrial Quick Start Manual
  1. Manuals
  2. Brands
  3. Ubiquiti Manuals
  4. Switch
  5. USW-Industrial
  6. Quick start manual

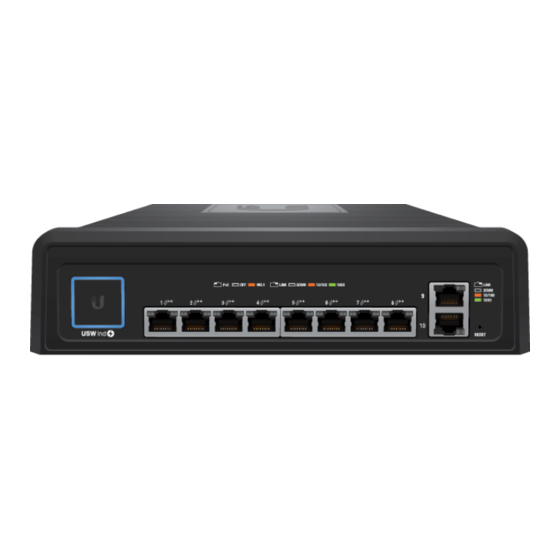

Ubiquiti USW-Industrial Quick Start Manual

Hide thumbs Also See for USW-Industrial:
Table of Contents

Advertisement

Quick Links

Download this manual
9. 9. 2019

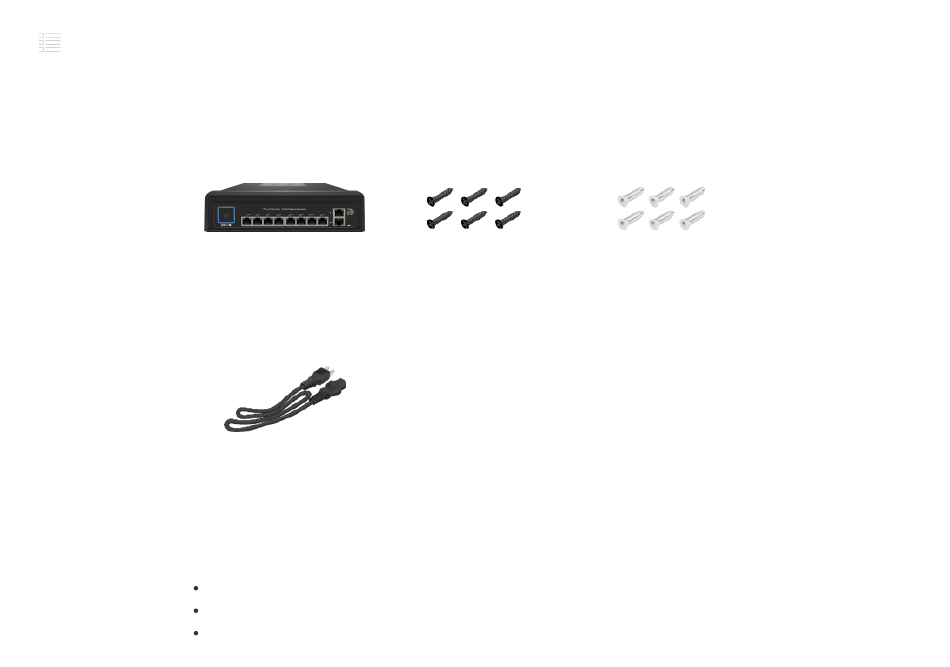

Package Contents
Installation Requirements
https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html
USW-Industrial Quick Start Guide
UniFi Switch
Power Cord
Drill with 6 mm drill bit
Phillips screwdriver
Cat5/6 UTP cable for indoor installations. Plenum-rated cabling for plenum spaces.
USW-Industrial Quick Start Guide
Screws (Qty. 6)
Screw Anchors (Qty. 6)
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USW-Industrial and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti USW-Industrial

Summary of Contents for Ubiquiti USW-Industrial

  • Page 1 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Package Contents UniFi Switch Screws (Qty. 6) Screw Anchors (Qty. 6) Power Cord Installation Requirements Drill with 6 mm drill bit Phillips screwdriver Cat5/6 UTP cable for indoor installations. Plenum-rated cabling for plenum spaces.

  • Page 2: System Requirements

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.8 or above recommended Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi...
  • Page 3 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Flashing Blue This is used to locate a device. When you click Locate in the UniFi Controller software, the System LED will flash blue. The software will also display the location of the UniFi Switch on the map.

  • Page 4: Hardware Installation

    9. 9. 2019 USW-Industrial Quick Start Guide This button serves two functions for the UniFi Switch: USW-Industrial Quick Start Guide Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

  • Page 5: Wall Mounting

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Wall Mounting https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 5/18...
  • Page 6 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 6/18...
  • Page 7 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 7/18...
  • Page 8 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 8/18...

  • Page 9: Connecting Power

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Connecting Power https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 9/18...

  • Page 10: Connecting Ethernet

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Connecting Ethernet https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 10/18...

  • Page 11: Software Installation

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.10.x or newer installed, skip to "Adopting the UniFi...
  • Page 12 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to "Adopting the UniFi Switch". For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi...
  • Page 13 9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 13/18...

  • Page 14: Specifications

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide 3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications USW-Industrial Dimensions 254 x 235 x 60 mm (10 x 9.25 x 2.36") Weight 3.85 kg (8.49 lb)

  • Page 15: Safety Notices

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial USW-Industrial Quick Start Guide Power Supply AC/DC, Internal, 450W DC Supported Voltage Range AC Input: 100 to 240VAC, Max. 6A Max. Power Consumption (Excluding PoE Output) LEDs System Status RJ45 Ports PoE, Speed/Link/Activity ESD/EMP Protection Air: ±...

  • Page 16: Electrical Safety Information

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label.

  • Page 17: Australia And New Zealand

    9. 9. 2019 USW-Industrial Quick Start Guide Compliance USW-Industrial Quick Start Guide Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

  • Page 18: Rohs/Weee Compliance Statement

    9. 9. 2019 USW-Industrial Quick Start Guide USW-Industrial Quick Start Guide RoHS/WEEE Compliance Statement Declaration of Conformity Online Resources © 2016-2019 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/USW-Industrial/USW-Industrial_EN.html 18/18...
