Summary of Contents for Sunny Health & Fitness SF-B2883

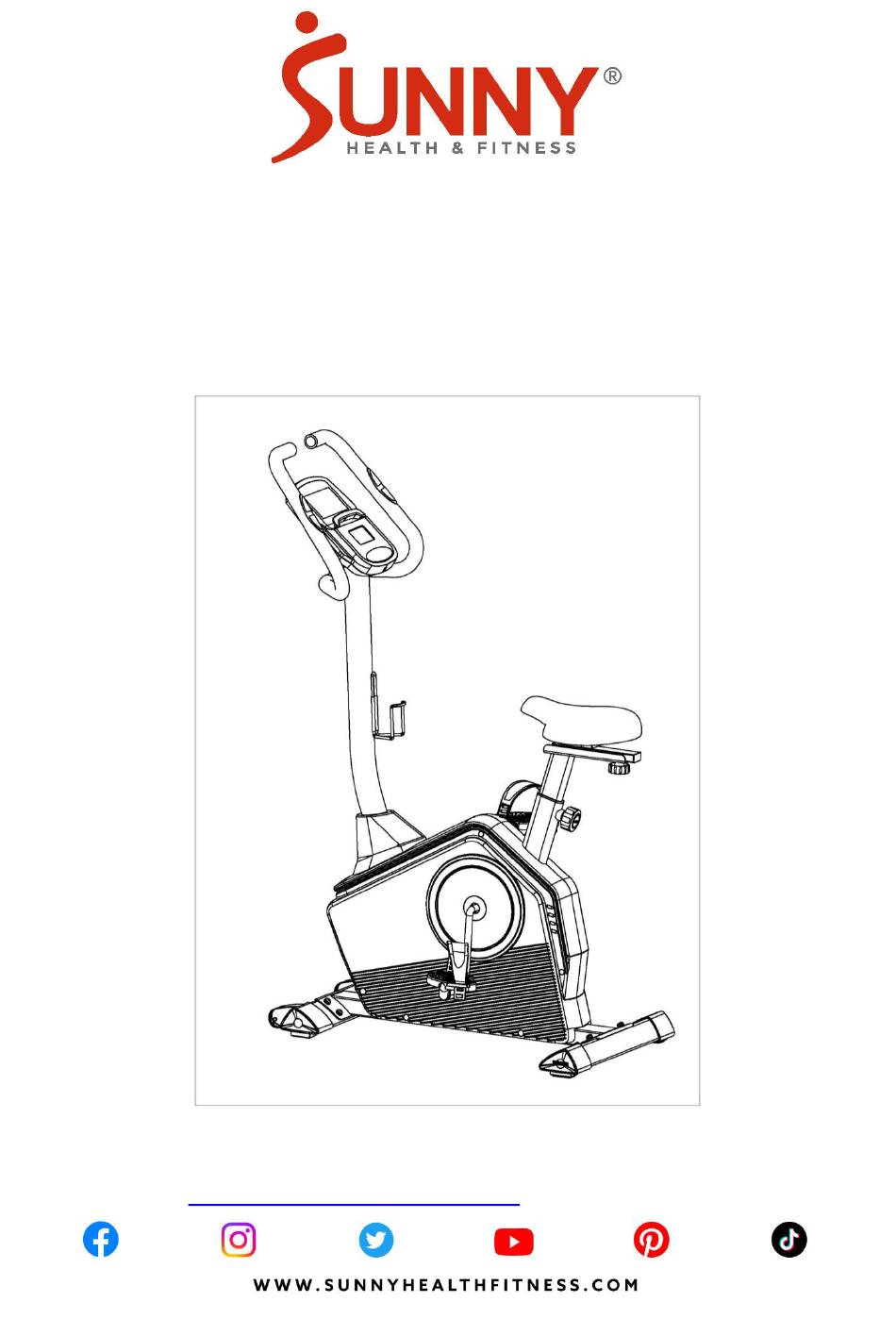

- Page 1 PROGRAMMABLE UPRIGHT BIKE SF-B2883 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Idler Wheel Linkage Rear Stabilizer Motor Upper Signal Wire Belt Pulley Pulse Wire Left Belt Cover Square Cap Right Belt Cover U Shape Bracket Crank Cover Handlebar Flat Washer D8XФ16X1.5 Washer Cross Pan Head ST4.2X18... -
Page 5: Hardware Package
HARDWARE PACKAGE #19 1PC #37 D8XФ22X2 1PC #76 S=13,14,15 1PC #30 1PC #75 S6 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓... - Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 1: Remove 8 Hex Pan Head Screws (No. 14), 8 Spring Washers (No. 15), 8 Flat Washers (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 4 Hex Pan Head Screws (No. 14), 4 Spring Washers (No. 15) and 4 Arc Washers (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 5: Remove 4 Cross Pan Head Screws (No. 28) from the Meter (No. 17) with Spanner (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669) . STEP 6: Remove 2 Hex Socket Head Bolts (No. 23) and 2 Spring Washers (No. 15) from the Handlebar Post (No.
-
Page 10: Adjustment Guide
ADJUSTMENT GUIDE ADJUSTING THE LEVEL If the bike is not level, turn the dials on the Rear End Caps (No. 26L/R) to adjust. Turn counter-clockwise to raise, and turn clockwise to lower. ADJUSTING THE SEAT The Seat (No. 32) of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). -
Page 11: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: The Programmable Upright Bike requires a power source of 1 amp (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user. -
Page 12: Workout Parameters
TIME: Accumulates the workout time from 0:00 to 99:59. Users can preset the target time they want. DIST (DISTANCE): Accumulates the workout distance from 0.00 to 999.9 miles. Users can preset the target distance they want to reach. ODO (ODOMETER): Displays the total accumulated distance from 0.00 to 9999 miles. CAL (CALORIES): Accumulates the calories burned from 0.00 to 9999. - Page 13 TARGET HR. (HEART 60~220 ±1 Setting Parameters for Target heart rate. RATE) PROGRAM OPERATION: MANUAL PROGRAM (PROGRAM 1) Program profile SETTING PARAMETERS FOR MANUAL PROGRAM 1. Select MANUAL PROGRAM (PROGRAM 1) using the UP or DOWN button, then press ENTER button. 2.
- Page 14 There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance. SETTING PARAMETERS FOR PRE- SET PROGRAMS 1. Select one of the PRE- SET PROGRAMS using the UP or DOWN button, then press ENTER button. TIME will flash so the value can be adjusted using the UP or DOWN button. 2.
- Page 15 SETTING DATA FOR BODY FAT PROGRAM Select BODY FAT PROGRAM (PROGRAM 15) using the UP or DOWN button, then press ENTER “MALE” will flash so Gender can be adjusted using the UP or DOWN button. Press the button. ENTER button to save gender and move to the next data. “5’8 (inches)”...
- Page 16 There are 4 selections for target pulse (HR): HRC - 55% TARGET HR= 55% of (220-AGE) HRC - 65% TARGET HR= 65% of (220-AGE) HRC - 75% TARGET HR= 75% of (220-AGE) HRC - 85% TARGET HR= 85% of (220-AGE) SETTING PARAMETERS FOR HEART RATE CONTROL PROGRAMS 1.
-
Page 17: Troubleshooting
