Rice Lake 920i Installation Instructions

™
920i Programmable HMI Indicator/Controller

Analog Output Card Installation Instructions

PN 67602
Use the following procedure to install analog output
cards in indicators:
920i
1. Disconnect indicator from power source.
Disconnect
indicator backplate.
2. Place indicator face-down on an antistatic
work mat. Remove screws that hold the
backplate to the enclosure body.
Use a wrist strap to ground yourself and
protect components from electrostatic
discharge (ESD) when working inside the
indicator enclosure.
3. Carefully align the large option card
connector with connector J5 or J6 on the CPU
board (see Figure 1). Press down to seat the
option card in the CPU board connector.

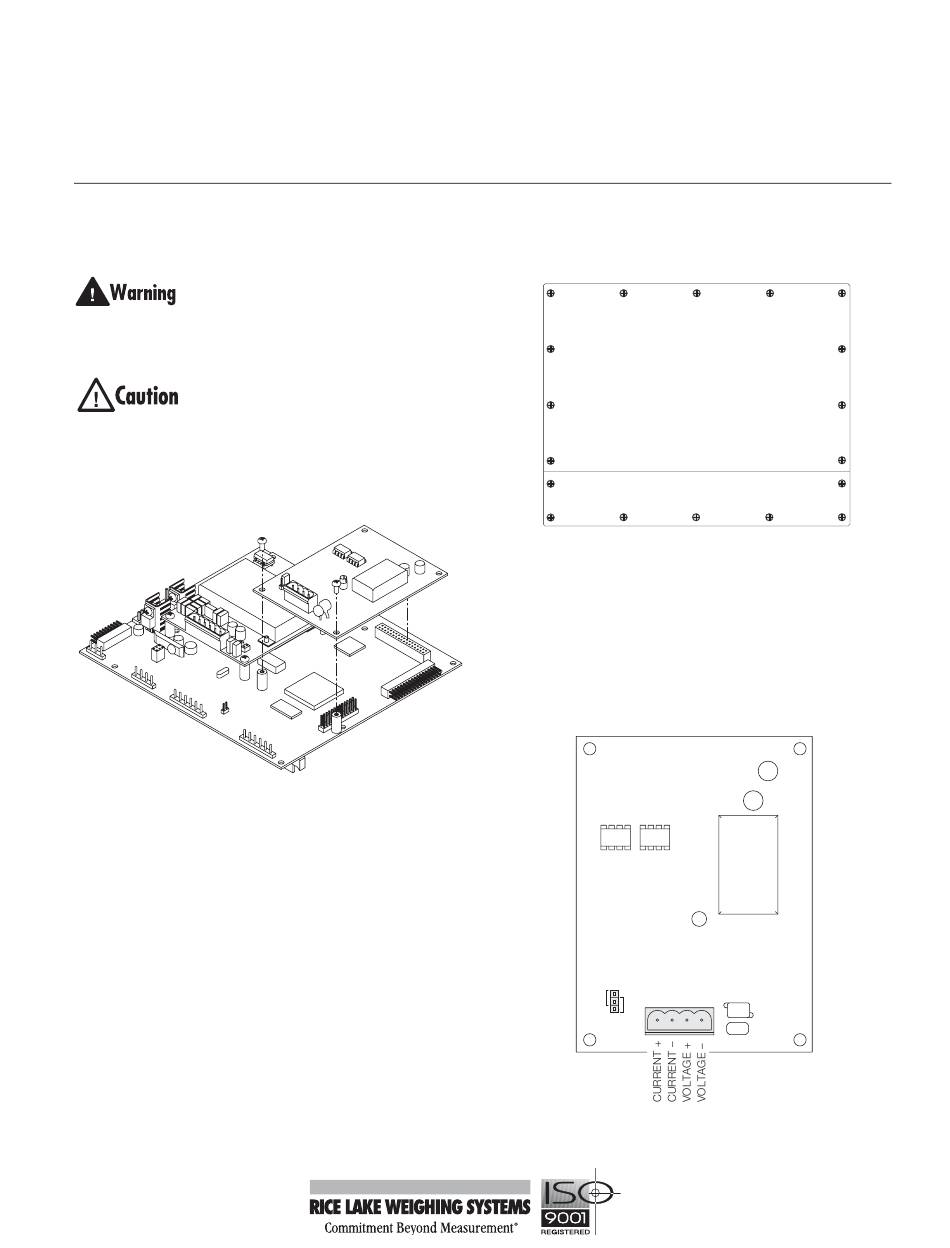

Figure 1. Installing Option Card Onto CPU Board
4. Use the screws and lockwashers provided in
the option kit to secure the other end of the
option card to the threaded standoffs on the
CPU board.
5. Make connections to the option card as
required. Use cable ties to secure loose cables
inside the enclosure.
6. Set the mode select jumper (see Figure 3) for
voltage or current output.
7. Once cabling is complete, position the
backplate over the enclosure and reinstall the
backplate screws. Use the torque pattern
shown in Figure 2 to prevent distorting the
backplate gasket. Torque screws to 15 in-lb
(1.7 N-m).
8. Ensure no excess cable is left inside the
enclosure and tighten cord grips.
January 2005
power before removing
J6
9. Reconnect power to the indicator.
10. Configure the analog output card as described
on page 2.
16 12
14
T o r q u e b a c k p l a t e s c r e w s
t o 1 5 i n - l b ( 1 . 7 N - m )
5
3
1
17 9
Figure 2. 920i Enclosure Backplate
The 920i automatically recognizes all installed option
c a r d s w h e n t h e u n i t i s p o w e r e d o n . N o
hardware-specific configuration is required to identify
the newly-installed card to the system.
An analog output card installed at connector J5 on the
CPU board is configured as ALGOUT1; a card
installed at connector J6 is configured as ALGOUT2.
MODE SELECT
JUMPER
I
V
Figure 3. Analog Output Card
8 10 18
13
6
2
4
7 11 15
69089
