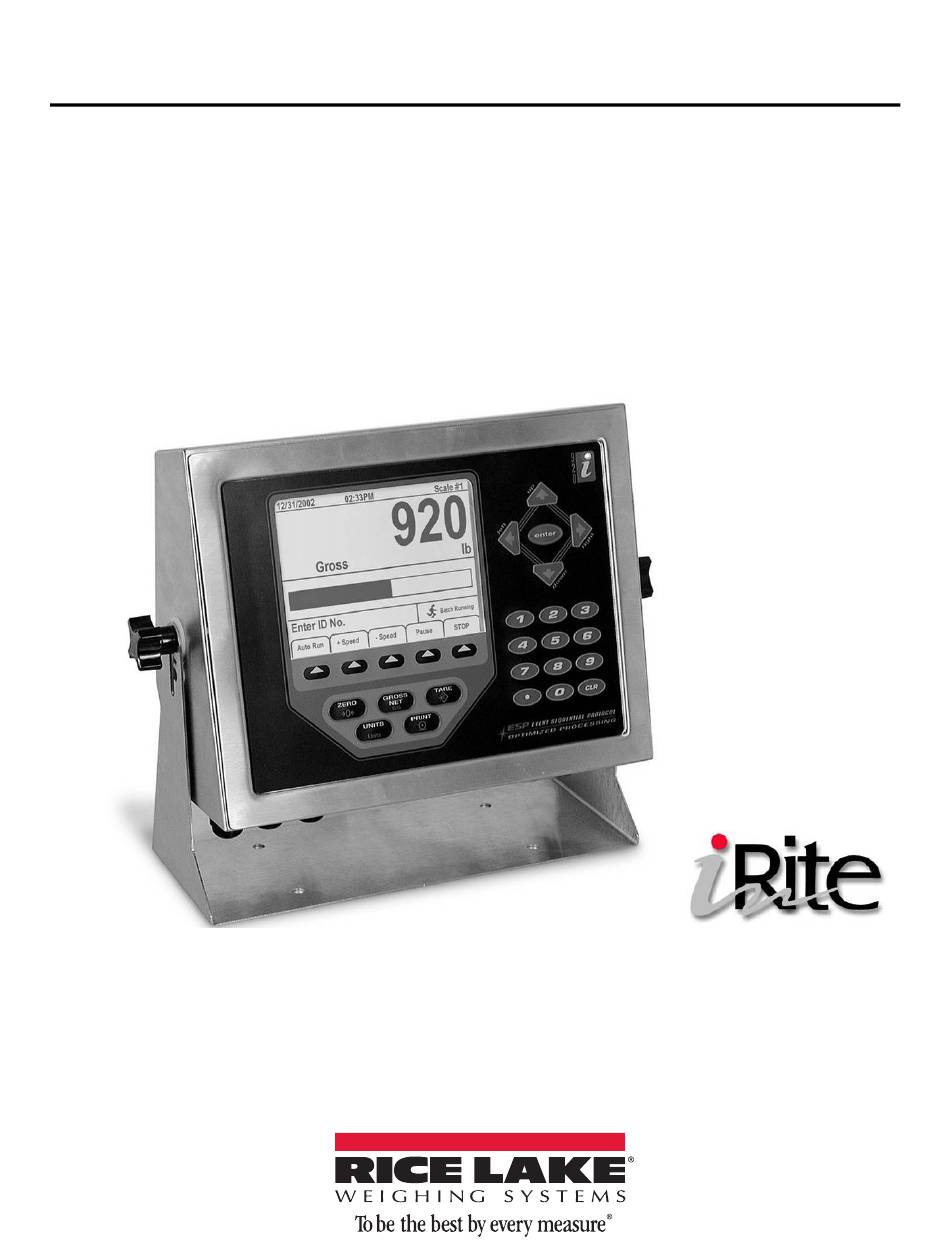

- Page 1 920i Based Truck In/Out System Software Application Version 1.01 Operator’s Manual 78855 Rev A...
-
Page 3: Table Of Contents
Required 920i Hardware ........ - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. 920i Based Truck In/Out Weigh Program...
-
Page 5: Introduction And System Overview
This manual provides information on using a truck in/out weighing program (PN 77297) for manual truck transactions using Rice Lake Weighing System’s 920i digital weight indicator. Stored IDs let you keep a database of truck IDs, customer product and project information, and weigh-in weights in the indicator’s memory and are accessed by simply scrolling through the main menu using the down arrow on the 920i. -
Page 6: Supervisor Mode
Exit to Set Date/ Diagnostics Weigh Time Figure 2-1. Supervisor Menu Main Screen 2. Using the numeric keypad on the 920i or the front panel keypad, select the desired field. Figure 2-2. 920i Numeric Keypad 920i Based Truck In/Out Weigh Program... -
Page 7: Customer
Customer 1. Select to access the customer entry screen, shown in Figure 2-3. 1 - Customer, 06/08/13 SCALE #1 08:05AM Name Addr e ss 1 Addr e ss 2 Addr e ss 3 Phone Accum Enter Selection Number Customer Exit to Menu/ Weigh Cancel... -
Page 8: Product
You can use the up/down arrows on the navigation pad on the 920i to scroll through and view customer information already entered into the database. 5. Enter other customer parameters, using the same steps. 6. When complete, press the softkey to access the weigh screen or the... -
Page 9: Truck
Truck 1. Select , from the Supervisor’s main menu to access the truck parameter screen. Truck 10/22/07 SCALE #1 08:05AM Tare Descrip Accum Enter Selection Number Trucks Exit to Menu/ Weigh Cancel Figure 2-6. Truck Entry Screen 2. Enter the field number to be edited on the numeric keypad. The following table lists the amount of characters allowed for each field. -
Page 10: Report Menu
2. There are several types of reports that can be generated through this screen which include customer reports, product reports, transaction reports, truck reports, and project reports. To access a particular report, select the number using the numeric keypad on the 920i. The report will be printed on the attached printer. 920i Based Truck In/Out Weigh Program... -
Page 11: Print Sample
2.5.1 Print Sample 1. Select the softkey to access the print selections. Print Sample 10/22/07 08:05AM SCALE #1 Print Weigh Sample Print Weigh In Sample Print Weigh Out Sample Enter Selection Number Exit to Menu/ Weigh Cancel Figure 2-10. Print Sample Selections Screen 2.5.2 Set EOL Delay Enter the delay between printed lines if the printer buffer is getting overloaded. -
Page 12: Format Ticket
3. Enter information and press to save your entry. enter This can also be done through the Database Editor. To view the database rows/columns for the sample ticket shown below, see Appendix 7.2. Table 1-1. Data Fields Parameters 920i Based Truck In/Out Weigh Program... -
Page 13: Clear Format
Figure 2-13. Weigh Ticket Example 2.5.7 Clear Format 1. Select the (Figure 2-8) softkey to clear the ticket format. Clear Format Transactions 1. Select from the Supervisor’s main menu to delete all stored transactions. The following Transactions screen is displayed. 10/22/07 08:05AM SCALE #1... -
Page 14: Password
Allow Transient Customers – updates the database when a new customer is added on the fly. – does not save this data and the only way to add to the database is through the Supervisor softkey. 920i Based Truck In/Out Weigh Program... -
Page 15: Set Date Time
– allows the tare key to be pressed in between transactions and will prompt for a truck ID, either new or currently stored. After entering an ID, the 920i will take the weight on the scale and store it as the tare for that truck ID, as a quick way to edit tares. -
Page 16: Diagnostics
2.10 Diagnostics Figure 2-17 shows an example of a 920i display of iQube diagnostic information. Information shown includes the following: • Cell name • Cell deadload value (mV) • Current individual cell and total values (mV) • Number of weighments •... -
Page 17: Scale Select
Scale Select If more than one scale is connected to the 920i, the softkey allows the user to select which scale to use. Scale Select 10/22/07 SCALE #1 08:05AM -888.8888 Mode Scale Units Truck Customer Product Scale Select Scale Number... -
Page 18: Weighing
Product Project Figure 4-1. Weigh In Screen 3. Enter the truck ID by using the numeric keys on the 920i. Press to save the ID number. enter If the truck ID has already been entered and a weigh in has already been complete, the following error message appears on the user screen: “Error, Truck is Weighed In.”... -
Page 19: Customer Selection - Optional
4.1.1 Customer Selection - Optional 1. Enter the customer selection by using the navigation keys, to scroll through the numeric up/down, right/left menu. 2. Press to save the customer selection or press without typing anything into the field. enter enter Enter Customer 10/22/07 08:05AM... -
Page 20: Project Selection
Select Mode Figure 4-6. Weigh In Complete Screen 4.1.4 Weigh In Canceled If you want to quit the weigh in, use the softkey (shown in Figure 4-5) to cancel the weigh in process. Cancel 920i Based Truck In/Out Weigh Program... -
Page 21: Weigh Out
Weigh Out The general weigh-out procedure is as follows: 4.2.1 Truck Number or Transaction Lookup 1. Enter the truck number or the transaction lookup number (depending on what you have set up in the Supervisor menu system parameter) by using the navigation keys, to scroll through the up/down, right/left alpha-numeric menu. -
Page 22: Weigh
5. The following screen is now displayed.You can select customer or product from the menu softkeys if they have not been entered. 10/22/07 SCALE #1 08:05AM -888.8888 Mode Scale Units Truck Customer Product Project Gross Tare Cancel Complete Customer Product Project Figure 4-10. Customer Selection 920i Based Truck In/Out Weigh Program... -
Page 23: Customer Selection - Optional
4.3.1 Customer Selection - Optional 1. Enter the customer selection by using the navigation keys to scroll through the numeric up/down right/left menu. 2. Press to save the customer selection. enter 10/22/07 08:05AM SCALE #1 -888.8888 Mode Scale Units Truck Customer Product Project... -
Page 24: Project Selection - Optional
Once the truck is weighed the following screen is displayed. Now the truck can exit the scale. 10/22/07 08:05AM SCALE #1 -888.8888 Mode Scale Units Truck Customer Product Project Gross Tare Complete Scale Supervisor Weigh Weigh In Weigh Out Select Mode Figure 4-14. Weigh Selection Complete 920i Based Truck In/Out Weigh Program... -
Page 25: Appendix
Appendix Control ASCII Dec. ASCII Dec. ASCII Dec. ASCII Ctrl-@ space Ctrl-A Ctrl-B “ Ctrl-C Ctrl-D Ctrl-E Ctrl-F & Ctrl-G ’ Ctrl-H Ctrl-I Ctrl-J Ctrl-K Ctrl-L Ctrl-M Ctrl-N Ctrl-O Ctrl-P Ctrl-Q Ctrl-R Ctrl-S Ctrl-T Ctrl-U Ctrl-V Ctrl-W Ctrl-X Ctrl-Y Ctrl-Z Ctrl-[ Ctrl-\ <... -
Page 26: Serial Port Usage
¥ ƒ Figure 5-2. ASCII Character Chart (Part 2) Serial Port Usage The following table lists the serial ports for the 920i and their uses with the truck in/out program. 920i Serial Port Description Unused by program Unused by program... -
Page 27: Required 920I Hardware
5.1.1 Required 920i Hardware Slot # Description Slot 1 Single channel A/D card Slot 2 1 MB memory card Table 5-2. Required Hardware Default Ticket Format An example of the default ticket format shown on page 10 is shown below using the formatted database rows/columns. -
Page 28: Epd Software License Agreement
CUSTOMER REMEDIES. Rice Lake Weighing Systems and its suppliers entire liability and your exclusive remedy shall be, at Rice Lake Weighing Systems option, either (a) return of the price paid or (b) repair or replacement of the SOFTWARE or hardware that does not meet Rice Lake Weighing Systems Limited Warranty and which is returned to Rice Lake Weighing Systems with a copy of your receipt. - Page 30 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 05/2014 PN 78855 Rev A...
