920i
Programmable HMI Indicator/Controller
®
Panel Mount Enclosure Installation
This document contains drawings, replacement parts lists and instructions for installing panel mount models of 920i indicators.
See the 920i Installation Manual (PN 67887) for general installation, configuration and calibration information.
WARNING: The 920i has no on/off switch. Before opening the enclosure, ensure the power cord is disconnected from the
power outlet. Power outlet must be located near the product.
This unit uses double pole/neutral fusing which could create an electric shock hazard. Procedures requiring work inside
the indicator must be performed by qualified service personnel only.
IMPORTANT: Use a wrist strap for grounding and to protect components from electrostatic discharge (ESD) when working
inside the indicator enclosure.
9.16"
8.02"
January 5, 2023
11.56"
10.51"
Illustration is not to scale, dimensions
are for reference only.

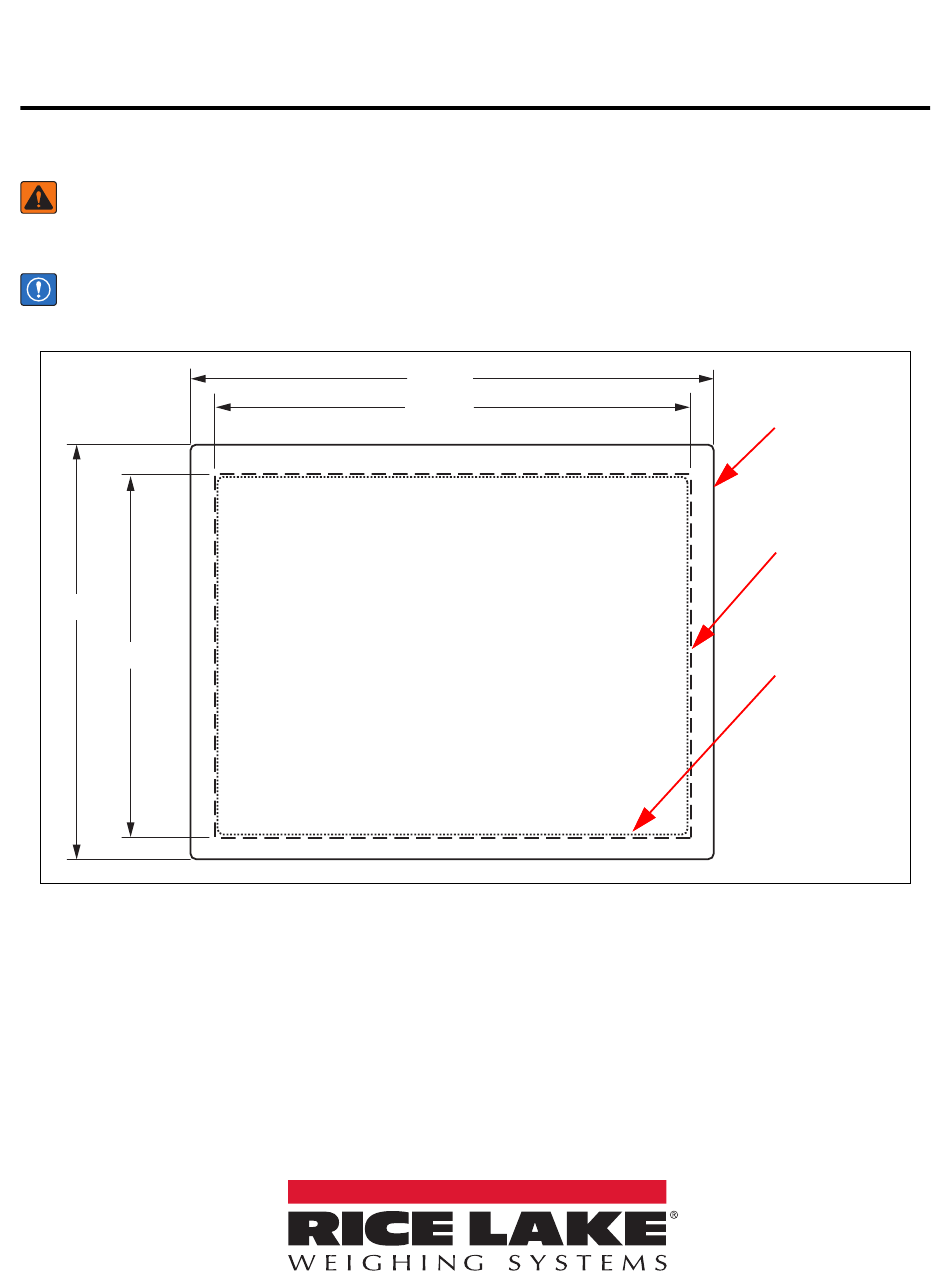

Figure 1. Panel Cutout for Panel Mount Enclosure
Outer Perimeter of
Exterior Faceplate
(Solid Line)
Panel Cutout
(Dashed Line)
Interior Housing
(Dotted Line)
PN 69989 Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 920i and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake 920i

Summary of Contents for Rice Lake 920i

  • Page 1 See the 920i Installation Manual (PN 67887) for general installation, configuration and calibration information. WARNING: The 920i has no on/off switch. Before opening the enclosure, ensure the power cord is disconnected from the power outlet. Power outlet must be located near the product.
  • Page 2 1 1/2" Screws (PN 82425) Clinching Bracket Reinforcing Plate 1/4" Screws (PN 71522) Figure 3. Clinching Bracket Assembly © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 3 920i Panel Mount Enclosure Installation Grounding Except for the power cord, all cables routed through the cord grips should be grounded against the indicator enclosure. 1. Install the ground clamps on the grounding bar, using the ground clamp screws. Do not tighten the screws at this time.
  • Page 4 UL Recognized, Semko and VDE Approved See the 920i Installation Manual (PN 67887) for additional specifications. Parts Kit Contents Table 1 lists the contents of parts kit (PN 71428) for the panel mount version of the 920i. Part No. Description Part No.
