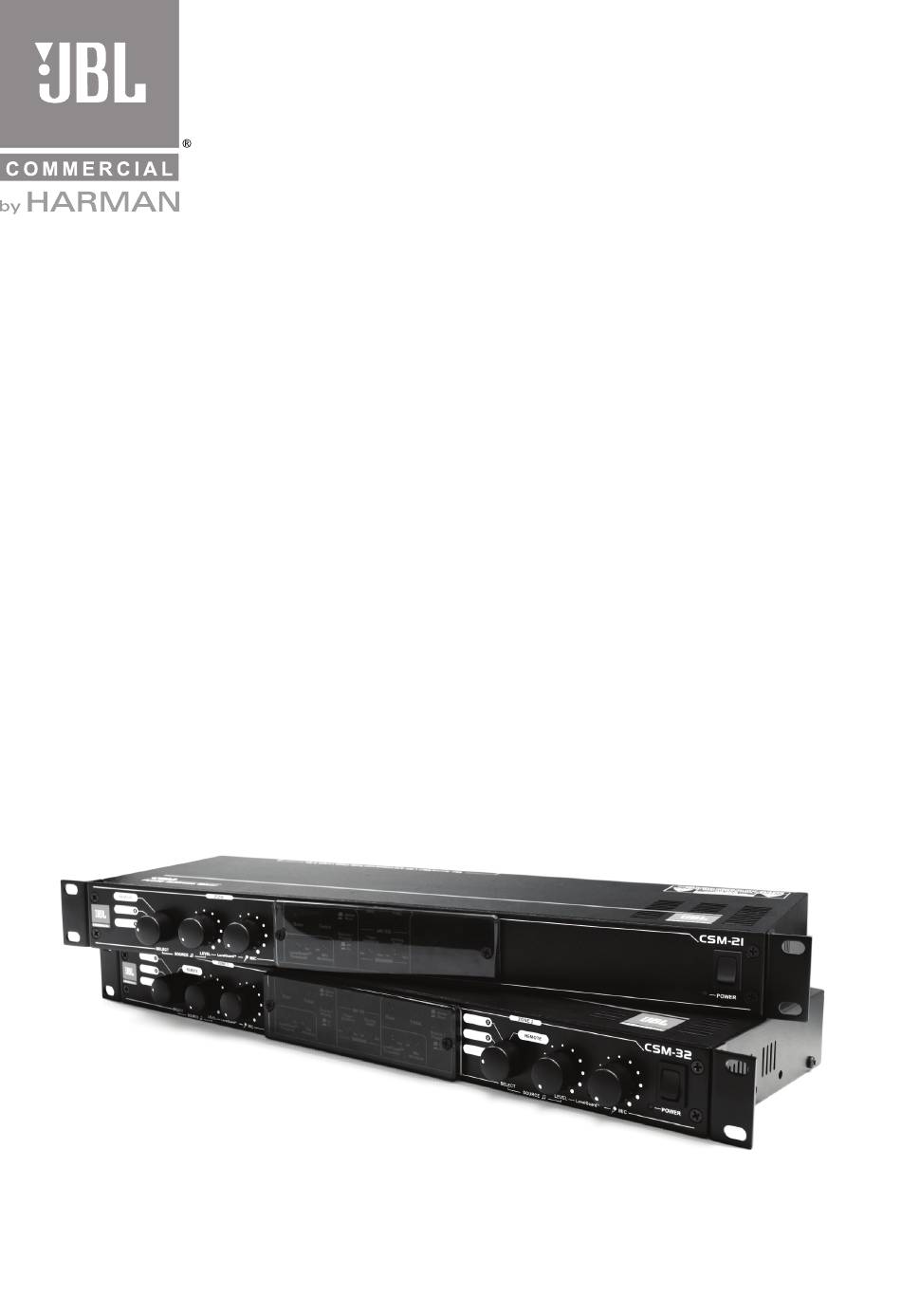

- Page 1 CS Commercial Solution Series CSM-21 & CSM-32 Mixer User Guide...
- Page 2 The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. Trademark Notice: JBL is registered trademark of Harman. Other trademarks are the property of their respective owners. © 2011 JBL Commercial, 8760 South Sandy Parkway, Sandy, UT 84070 USA. All Rights Reserved.
-
Page 3: Table Of Contents
Contents Important Safety Instructions .............2 Quick Start ..................4 1.0 Introduction ................5 1.1 JBL Commercial CSM-21 and CSM-32 Mixer ....5 1.2 Other Mixer Features ............5 2.0 Installation ................6 2.1 Unpacking ...............6 2.2 Mechanical Requirements ..........6 2.3 Installing the Mixer ............6 2.4 Audio Input and Output Wiring Convention ....7 3.0 Rear Panel ................8 4.0 Front Panel .................11 5.0 Knowing Your Mixer ............13... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASH- The symbols shown above are internationally accepted symbols ING LIqUID AND NO ObjECT FILLED WITH LIqUID, SUCH AS vASES, that warn of potential hazards with electrical products. - Page 5 • Sandy, Utah 84070, USA Date: January 28, 2011 European Contact: Your local JBL Sales and Service Office or Harman Signal Processing 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583 If you want to dispose this product, do not mix it with general household waste.
-
Page 6: Quick Start
Quick Start 1. Connect the included JBL power supply to the POWER jack on the rear panel of the mixer. 2. On the front panel of the mixer, switch the POWER switch to the on position. 3. Connect a stereo audio source to the SOURCE 1 input. Do not put any audio through the mixer at this time. -
Page 7: Introduction
1.0 Introduction 1.1 JBL Commercial CSM-21 and CSM-32 Mixer ® The JBL Commercial CSM-21 and CSM-32 mixers (hereafter referred to as ‘mixer’) were specifically designed to provide signal routing flexibility and multiple audio source control. To facilitate this, JBL has equipped the mixers with a wide array of input and output capabilities. -
Page 8: Installation
2.0 Installation Method 1 - Attaching the brackets to the front panel for rack mounting Method 2 - Attaching the brackets to the sides of the unit for wall mounting 2.1 Unpacking This product was carefully inspected before packing to ensure flawless appearance and operation. Please unpack and inspect your CSM mixer for any damage that may have occurred during transit. -
Page 9: Audio Input And Output Wiring Convention
2.4 Audio Input and Output Wiring Convention Balanced wiring - The convention for balanced wiring (2-wire plus shield) is: Input - Input + GND Shield Unbalanced wiring - The convention for unbalanced wiring to the inputs (1-wire plus shield) is: Input + GND Shield NOTE: THE ABOVE WIRING CONVENTIONS ARE APPLICABLE FOR THE FOLLOWING CONNECTORS:... -
Page 10: Rear Panel
3.0 Rear Panel CSM-32 illustration CSM-21 illustration 1. Power Supply Input Connect the included JBL power supply here. 2. Firmware Update The USB connector allows you to connect your computer to the mixer for updating the firmware. To retrieve the firmware version of your mixer, observe the LEDs on the rear panel while the mixer boots. - Page 11 6. Zone Remote Jacks These inputs are for the optional remote controls: CSR-V, CSR-2SV, and CSR-3SV. 7. Isolated Auxiliary Output* This output sends a transformer isolated mono signal for a music-on-hold system, or for a separate mono auxiliary zone (please note that paging and emergency announcements will not be sent to this zone).
- Page 12 13. Priority Hold Priority Hold smoothly adjusts the time it takes for the normal, or ducked, input source to become audible again after the priority source ceases. This allows for compatibility with the many different types of priority sources that exist in business environments. 14.
-
Page 13: Front Panel
4.0 Front Panel CSM-32 illustration CSM-21 illustration 1. Source Selector The SELECT knob selects which source is fed to each zone, or selects the REMOTE option – when using a remote control for source selection. To activate remote source selection control, this control must be set to the REMOTE position. - Page 14 7. Bass Mic EQ The Bass trim pot applies cut or boost, by up to +/-6 dB, to the Microphone’s low frequencies. 8. Treble Mic EQ The Treble trim pot applies cut or boost, by up to +/-6 dB, to the Microphone’s high frequencies. 9.
-
Page 15: Knowing Your Mixer
5.0 Knowing Your Mixer 5.1 Source What is a Source? This is a line-level input signal such as programmed music, CD player, VCR/DVD, satellite feed, tape player, radio, message repeater, or juke box. These sources are then equalized, dynamically controlled, and routed by your selections and priorities on the mixer. 5.2 Zones What is a zone? This is the area where you wish the signal to be heard. -
Page 16: Setup
6.0 Setup 6.1 Determining Source Priorities Determining the hierarchy of your sources is easier than it sounds. Generally, it follows this order: 1. Emergency/Alarm (Direct Input with MUSIC MUTE engaged) 2. Pages (Paging Mic) 3. Prerecorded announcements (or another source into SOURCE 1 with Priority engaged). 4. -
Page 17: Using The Subwoofer Crossover
6.5 Using the Subwoofer Crossover When the XOVR switch is engaged, the main speakers are high-passed at 125 Hz and the subwoofer outputs are low-passed at 125 Hz (both using a Butterworth 24 dB per octave filter), forming a full subwoofer crossover. -
Page 18: Setting Up Levelguard
6.8 Setting Up LevelGuard™ To set up LevelGuard™, begin by turning the LevelGuard™ trim pot to twelve o’ clock. Use this as your “baseline” setting. Now turn up the Source volume to the level desired for a particular zone. Check the LevelGuard™... -
Page 19: Appendix A. Optional Item - Csr Series Remote Controls
Appendix A. Optional Item - CSR Series Remote Controls CSR-V CSR-2SV CSR-3SV Compatibility Between CSR Remote Control and CSM Mixers Mixer Remote Control CSM-21 CSM-32 CSR-V CSR-2SV CSR-3SV *when using two input sources Optional remote controls are available from JBL to provide source selection and volume control from a remote location other than your mixer. - Page 20 Controlling Volume The LEVEL on the mixer is ALWAYS operational, regardless whether the Source Selector function is active or not. This remote control is ATTENUATE ONLY. To set the volume control of the remote control, you can follow these steps: 1.
-
Page 21: Appendix B: Block Diagrams
Appendix B: Block Diagrams... -
Page 22: Appendix C: Specifications
Appendix C: Specifications LINE INPUTS Type: Unbalanced, RCA connector x 2 (stereo) CSM-32 – 3 stereo RCA inputs CSM-21 – 2 stereo RCA inputs Nominal Sensitivity: -10dBV Input Impedance: 20k ohms Maximum Input: +12dBu Equalization: Bass +/- 10dB @ 80Hz, Treble +/- 10dB @ 8kHz, 6dB/Octave Shelf MIC INPUT Type: Balanced, 5.08mm, Euroblock connector... - Page 23 REAR PANEL LED INDICATORS Source Inputs: Signal Present LED (turns on at -20dBu) Signal Clip LED (turns on at +10dBu) Mic Input: Signal Present LED (turns on at -20dBu) Signal Clip LED (turns on at +18dBu) SYSTEM PERFORMANCE Frequency Response: 20Hz-20kHz, +/- 0.1dB Dynamic Range: 104dB, A-Weighted, 20Hz-20kHz...
- Page 24 JBL Commercial 8760 South Sandy Parkway Sandy, UT 84070 (801) 566-8800 Printed in China Part Number: 18-6401-A Issue: 06/11...
