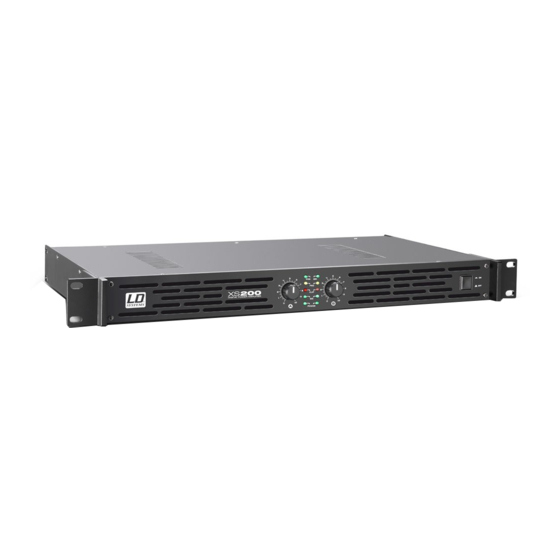

Summary of Contents for LD LDXS200

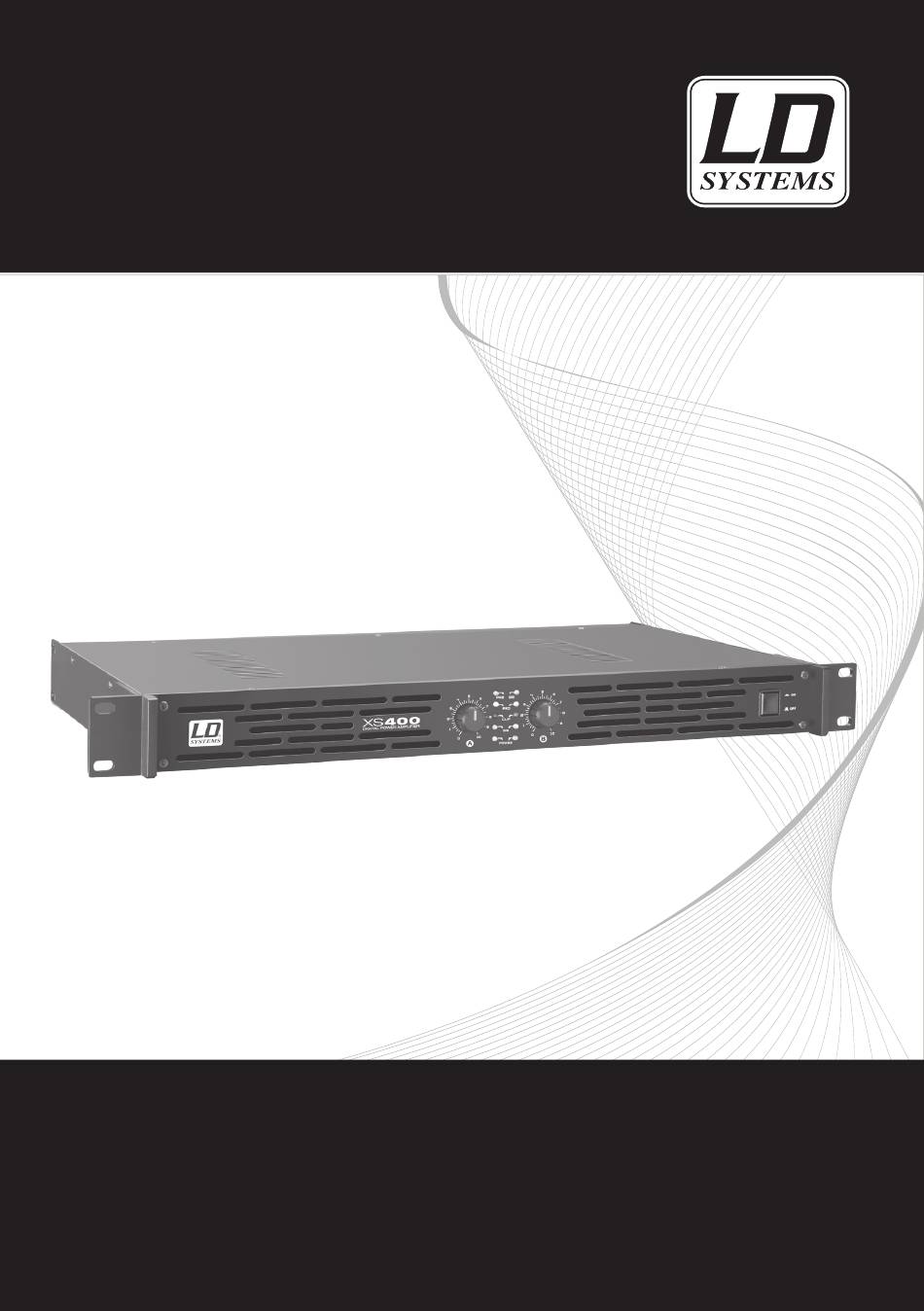

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO PA POWER AMPLIFIER CLASS D LDXS200, LDXS400, LDXS700...
- Page 2 You‘ve made the right choice! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.
- Page 3 PA POWER AMPLIFIER CLASS D LDXS200, LDXS400, LDXS700...
-
Page 4: Preventive Measures
PREVENTIVE MEASURES: 1. Please read these instructions carefully. 2. Keep all information and instructions in a safe place. 3. Follow the instructions. 4. Observe all safety warnings. Never remove safety warnings or other information from the equipment. 5. Use the equipment only in the intended manner and for the intended purpose. 6. - Page 5 SAFETY: to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27.
- Page 6 saFetY INFORMATION: DANGER AT THE SPEAKER OUTPUT! Power amplifiers are capable of producing dangerously high voltages at the output. To avoid electrical shock, never touch bare speaker wires or terminal posts while the power amplifier is in operation. INSTALLATION AND CONNECTION For trouble-free operation, during setup and rack installation, it absolutely necessary to ensure the air intake and ventilation of the power amplifier are unimpeded.
-
Page 7: Connections, Controls, And Indicators
ConnECtionS, CONTROLS, AND INDICATORS: CHANNEL A / CHANNEL B Volume controls for Channels A and B. Always set the volumes to minimum before turning the equipment on or off. In bridge mode, the volume of the power amplifier is controlled by the volume control for Channel A. POWER LED Lights up once the speaker system is switched on and properly connected to the power mains. - Page 8 ConnECtionS, CONTROLS, AND INDICATORS: PARALLEL MODE LED Lights up if the power amplifier is running in parallel mode (MODE switch on the rear panel in position "Par"). One line input (INPUT A or B) supplies the same signal to both power amplifier channels A and B. If there is a signal on both inputs, then they are merged into a mono signal.
- Page 9 ConnECtionS, CONTROLS, AND INDICATORS: 12 13 INPUT CH-A / CH-B (XLR) Balanced XLR line inputs Channel A and B. INPUT CH-A / CH-B (6.3 MM JACK) Balanced jack inputs Channel A and B. INPUT CH-A / CH-B (RCA) Unbalanced RCA inputs Channel A and B. The line inputs are used to connect to a mixing desk or another signal source.
- Page 10 ConnECtionS, CONTROLS, AND INDICATORS: GAIN Adjustment of the input sensitivity and/or voltage gain of the power amplifier. When this switch is in the middle position, all 3 power amplifiers in this series have a voltage gain of 26 dB. For the other values, please see the specifications in the chapter "Specifications".
-
Page 11: Connector Pin Assignments
CONNECTOR Pin ASSiGnMEntS: XLr-tYpe connector pin assignments trs connector pin assignments unbaLanced baLanced unbaLanced Ring Ring Sleeve Sleeve Sleeve speakon-compatibLe connector pin assignments STR AND PAR POSITION (STEREO AND PARALLEL MODE) SPEAKON COMPATIBLE CONNECTOR SCHEMATIC DIAGRAM STR AND PAR MODE (STEREO AND PARALLEL MODE) -
Page 12: Wiring Example
WIRING EXAMPLE: X S 2 00 X S 4 00 X S 7 00... - Page 13 LDXS200 LDXS400 LDXS700 Model name: Product type: Power amplifier Power amplifier Power amplifier Type: 2-channel 2-channel 2-channel Output power (1 kHz @ 2 x 100 W 2 x 200 W 2 x 350 W 4 ohms): Output power (1 kHz @...
-
Page 14: Specifications
SPECIFICATIONS: Dimensions (W x H x D): 482 x 44 x 244 mm 482 x 44 x 244 mm 482 x 44 x 244 mm Weight: 3 kg 3.4 kg 3.4 kg Accessories included: Power cord, user manual Power cord, user manual Power cord, user manual Other features: convection cooling... -
Page 15: Manufacturer's Declarations
MANUFACTURER´S DECLARAtionS: MANUFACTURER‘S WARRANTY This warranty covers the Adam Hall, LD Systems, Defender, Palmer, and Cameo brands. It applies to all products distributed by Adam Hall. This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands them with additional warranty claims vis-a-vis Adam Hall. -
Page 16: Limitation Of Liability
MANUFACTURER´S DECLARAtionS: LIMITATION OF LIABILITY If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use. - Page 17 MANUFACTURER´S DECLARAtionS: PROPER DISPOSAL OF THIS PRODUCT (Valid in the European Union and other European countries with waste separation) This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal.
