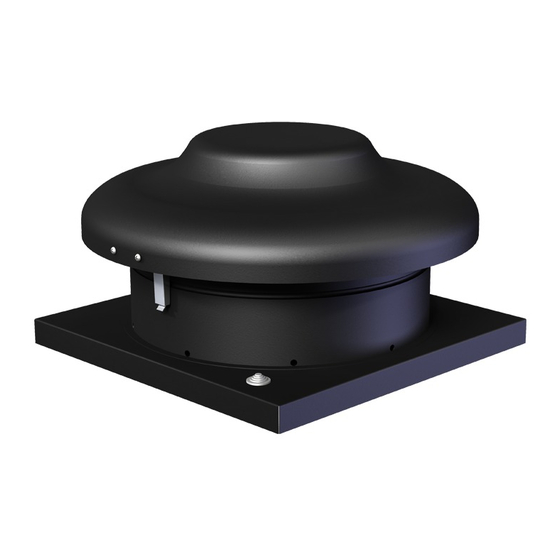

VSA 3.0/VSA EKO
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSA 3.0 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Salda VSA 3.0 Series

  • Page 1 VSA 3.0/VSA EKO MOUNTING AND INSTALLATION INSTRUCTION...
  • Page 2: Transportation And Storage

    SYMBOLS AND MARKING SKU000000 Product name Nominal voltage frequency 000 0 VAC Max.current 00.00 A Max.power consumption 0.00 kW Protection class IP 00 LN: LN000000 2019.01.01 Made in Šiauliai, Lithuania Figure 1.1 - Technical label 1 - Logo; 2 - Product code (SKU); 3 - Product name; 4 - Technical data; 5 - Production place; 6 - Lot number and production date. Techninis lipdukas SKU000000...
  • Page 3: Working Conditions

    Painted hull (colour code RAL 9005) WORKING CONDITIONS It is prohibited to use the devices in potentially explosion hazardous environment. The device is used to pull only clean air (free from metal corroding chemicals; aggressive substances for zinc, plastic, rubber; hard, sticky and fibrous particles) from the room.
  • Page 4: Electric Installation

    01-02. VSA air duct conection 04-09. Kamino įrengimas montuojant VSA 10. VSA mounting ELECTRIC INSTALLATION The devices have rotating parts and are connected to the electricity. This may pose a risk to the human health and life. That is why safety require- ments have to be followed while installing.
  • Page 5: Wiring Diagram

    Make sure that the electric power chain data complies with the data on the product label on the device case. Selected power cord has to match device power. The fan has to be connected according to the electric scheme which is described in this document and is shown under the electricity connection box cap (fig.
  • Page 6: Dimensions And Weight

    Before cleaning it is necessary to turn off the power supply and block the switch to prevent accidental turning on while working. It is necessary to wait until any mechanical motion stops, the engine cools down and the capacitors discharge. Make sure that the fan and its parts and accessories are firmly and rigidly mounted.
  • Page 7 - current 0,31 0,28 0,45 0,94 - speed [min 2750 2800 2600 2800 2660 2700 - capacitor [µF] - max. ambient tem- perature - motor protection class IP-44 IP-44 IP-44 IP-44 IP-44 IP-44 - wiring diagram VSA EKO - phase/voltage [50 Hz/VAC] ~1,230 ~1,230...
  • Page 8 [ kWh/a ] 1280 1280 1280 1280 ErP Compliance 2018 2018 2018 2018 Internet address for disassembly instructions www.salda lt 225 L 3.0 250 L 3.0 190 EKO 220 EKO 225 EKO 250 EKO Declared typology Unidirec- Unidirec- Unidirec- Unidirec-...
  • Page 9: Declaration Of Confomity

    Should any alterations be made in the products, this declaration will no longer apply. Notified body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identification number 1399. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...
  • Page 10: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a con- trol system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 11 VSA 3.0_VSA EKO v2019.04...
  • Page 12 Every 3-4 Filter replacement months** * - Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000152 MAN000152 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
