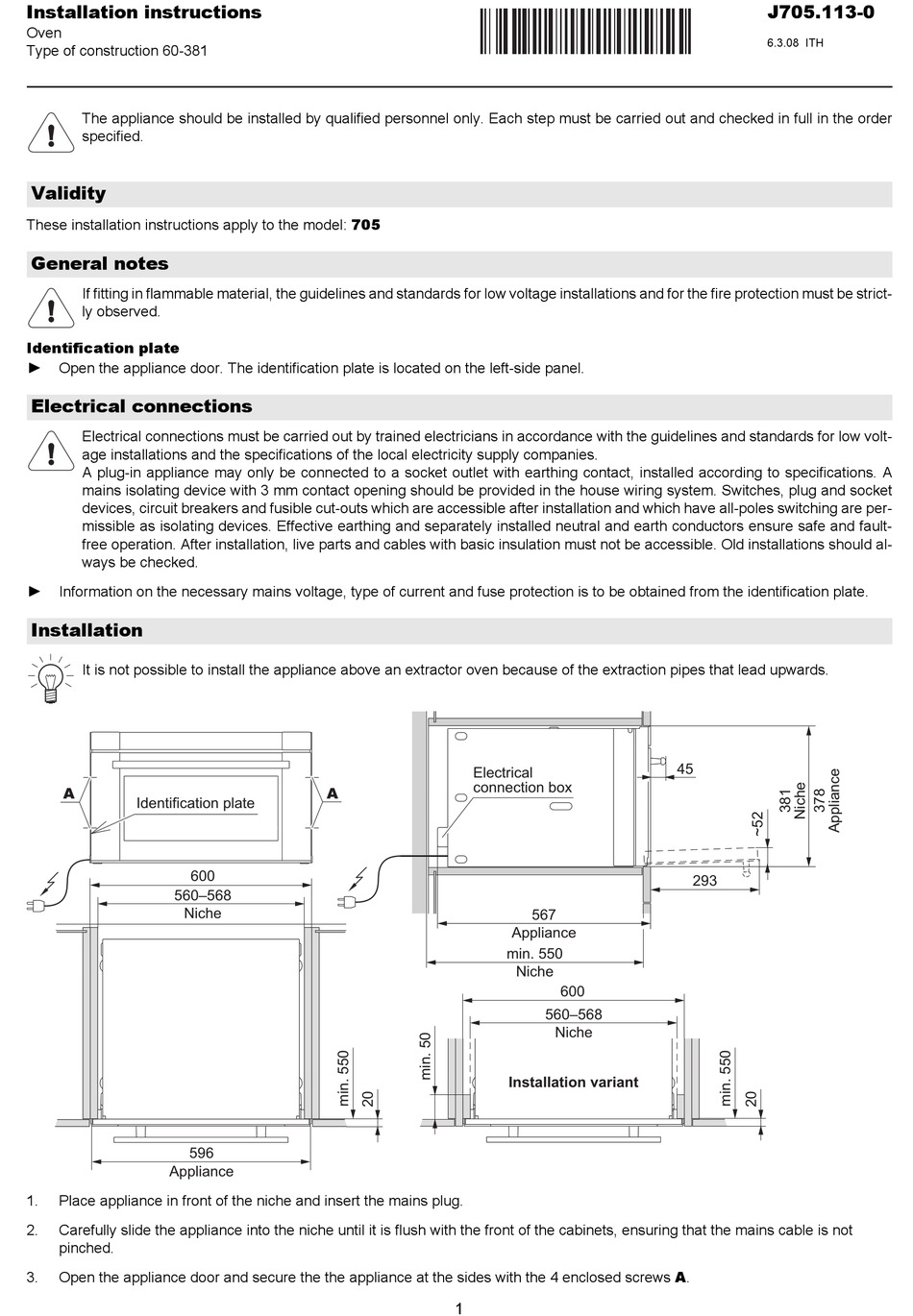

V-ZUG 705 Installation Instructions

Installation instructions
Oven
Type of construction 60-381
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.

Validity

These installation instructions apply to the model: 705

General notes

If fitting in flammable material, the guidelines and standards for low voltage installations and for the fire protection must be strict-
ly observed.
Identification plate
Open the appliance door. The identification plate is located on the left-side panel.
A

Electrical connections

Electrical connections must be carried out by trained electricians in accordance with the guidelines and standards for low volt-
age installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. A
mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and socket
devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching are per-
missible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and fault-
free operation. After installation, live parts and cables with basic insulation must not be accessible. Old installations should al-
ways be checked.
Information on the necessary mains voltage, type of current and fuse protection is to be obtained from the identification plate.
A

Installation

It is not possible to install the appliance above an extractor oven because of the extraction pipes that lead upwards.
A
Identification plate
600
560–568
Niche
596
Appliance
1. Place appliance in front of the niche and insert the mains plug.
2. Carefully slide the appliance into the niche until it is flush with the front of the cabinets, ensuring that the mains cable is not
pinched.
Open the appliance door and secure the the appliance at the sides with the 4 enclosed screws A.
3.
Electrical
connection box
A
1
45
567
Appliance
min. 550
Niche
600
560–568
Niche
Installation variant
J705.113-0
6.3.08 ITH
293
