6.3 MOUNTING THE LOGICLINK

6.3.1 REQUIRED COMPONENTS

1 LOGIClink
2 3 Mounting Screws (supplied by Reseller)
Tool Screwdriver
Tool Drill
Tool Pencil
INFO
Contact LOGICDATA for specifications regarding Mounting Screws.

6.3.2 PROCESS

NOTICE
The LOGIClink must be at least 50 mm away from metal parts and Cables.
NOTICE
Ensure that the Signal LEDs can be seen from the front of the table.
LOGICDATA recommends placing the LOGIClink roughly 70 cm from the user's normal
INFO
sitting position.
1. Mark the position of the drilling holes. Use the Drilling Template in Chapter 5.3 to help you.
2. Drill the holes into the Table Top.
3. Use the screwdriver and Mounting Screws to attach the LOGIClink to the Table Top at the marked
drilling points (Fig. 4).

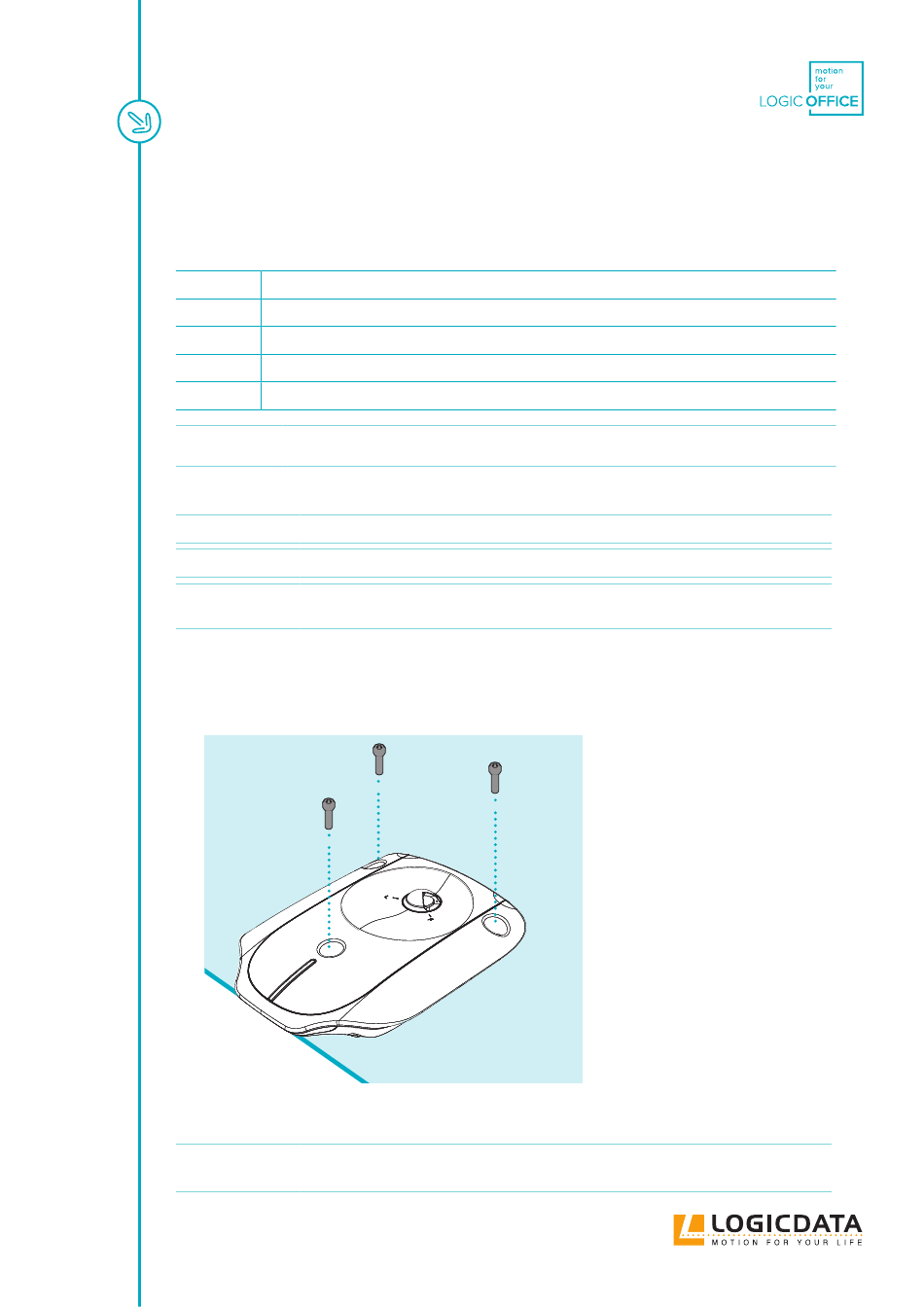

Fig. 4: Mounting the LOGIClink
The required tightening torque depends on the material of the Table Top. Do not exceed
NOTICE
2 Nm.
LOGICLINK - MANUAL // PAGE 15
