Summary of Contents for LOGICDATA LOGIC OFFICE Series
- Page 1 MANUAL Document Version 2.0 / April 2019 LOGIClink Valid for: • LOGIClink Corporate • LOGIClink Personal Standard • LOGIClink Personal Lite • Motion@Work App...
- Page 2 LOGICLINK - MANUAL // PAGE 2 LOGIClink - Operating Manual Document Version 2.0 / April 2019 This document was originally published in English. LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Phone: +43 (0) 3462 51 98 0 Fax:...
-
Page 3: Table Of Contents
LOGICLINK - MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks Skilled Persons Notes for Resellers Scope of delivery... - Page 4 LOGICLINK - MANUAL // PAGE 4 7.1.1 Control Box Compatibility 7.1.2 Dynamic Motion System Connection Variants Connection: Standard Option 7.3.1 Required Components 7.3.2 Connecting the LOGIClink 7.3.3 Next Steps Connection:Retrofit Option 7.4.1 Required Components 7.4.2 Connecting the LOGIClink 7.4.3 Next Steps Connection:DYNAMIC MOTION system Option 7.5.1 Required Components 7.5.2 Connecting the LOGIClink...
-
Page 5: General Information
Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally. -
Page 6: Safety
Box or via the DYNAMIC MOTION system. Products are intended for indoor use only. Products may only be installed in compatible Height-Adjustable Tables and with LOGICDATA-approved accessories. Contact LOGICDATA for further details. Use beyond or outside the intended use will void the product’s warranty. 2.4 REASONABLY FORESEEABLE MISUSE Usage outside of the intended use may lead to minor injury, serious injury, or even death. -
Page 7: Explanation Of Symbols And Signal Words
2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use • Disregard of the documentation •... -
Page 8: Residual Risks
LOGICLINK - MANUAL // PAGE 8 liable for any damage that is directly or indirectly caused by the delivery or use of this document. Resellers must observe the relevant safety standards and guidelines for each product in the Table System. 2.7 RESIDUAL RISKS Residual risks are the risks that remain after all relevant safety standards have been complied with. -
Page 9: Skilled Persons
2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. For reasons of EU conformity and product safety, Resellers should provide end users INFO with an Operating Manual in their native EU official language. -
Page 10: Scope Of Delivery
3 SCOPE OF DELIVERY The standard scope of delivery the LOGIClink consists only of the LOGIClink itself. All other components necessary for installing the LOGIClink (e.g. Mounting Screws and Cables) must be ordered from LOGICDATA or supplied separately by the reseller. -
Page 11: Products

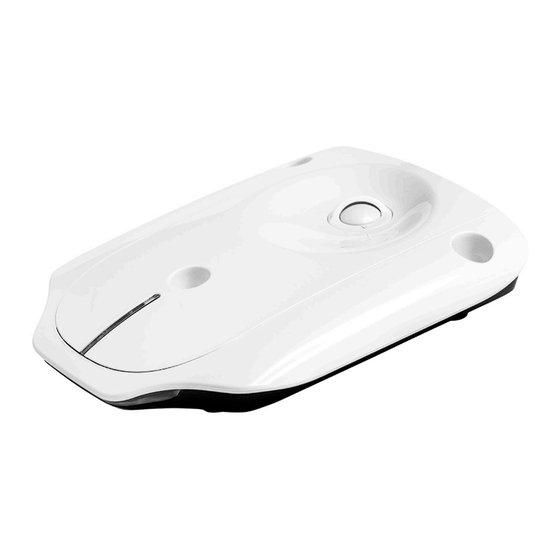

LOGICLINK - MANUAL // PAGE 11 5 PRODUCT The LOGIClink is available in three configurations: • LOGIClink Corporate • LOGIClink Personal Standard • LOGIClink Personal Lite Variants may be equipped with additional features or different configurations. The exact variant is denoted by the product's order code. -
Page 12: Dimensions
LOGICLINK - MANUAL // PAGE 12 5.2 DIMENSIONS Length 137.3 mm | 5.406 " Width 108.0 mm | 4.253 " Height (to underside of Table Top) 23.1 mm | 0.910 " * NOTE: The drawing below is an example (LOGIClink Personal Standard). The design of the shutter depends on the configuration of the LOGIClink you have ordered. -
Page 13: Drilling Template
LOGICLINK - MANUAL // PAGE 13 5.3 DRILLING TEMPLATE 3.425“ 87.0 mm Front Edge Fig. 3: Drilling Template, LOGIClink... -
Page 14: Assembly
LOGICLINK - MANUAL // PAGE 14 6 ASSEMBLY This chapter describes the process of installing the LOGIClink into the Height-Adjustable Table System. SAFETY DURING ASSEMBLY The assembly location must be level, vibration-free and free from dirt, dust, etc. Ensure that there is no ex- cessive exposure to dust, toxic or corrosive gases and vapors, or excessive heat at the location. -
Page 15: Mounting The Logiclink
The LOGIClink must be at least 50 mm away from metal parts and Cables. NOTICE Ensure that the Signal LEDs can be seen from the front of the table. LOGICDATA recommends placing the LOGIClink roughly 70 cm from the user's normal INFO sitting position. -
Page 16: Completing Assembly
LOGICLINK - MANUAL // PAGE 16 4. (Not applicable for LOGIClink Lite). Align the Presence Sensor to the desired user position. If the LOGIClink will be on the user's right-hand side, turn the sensor towards "R". If the LOGIClink will be on the user's left-hand side, turn the sensor towards "L". Fig. -
Page 17: Connecting The System
COMPATIBILITY 7.1.1 CONTROL BOX COMPATIBILITY Most LOGICDATA-compatible Control Boxes have "Works with LOGIClink" on their type plate (Fig. 6) Fig. 6: Type Plate for a LOGIClink-compatible Control Box If your Control Box does not have "Works with LOGIClink" on its type plate, you must... -
Page 18: Connection Variants
There are three connection options for LOGIClink: Standard Option: You require the standard installation variant if the following statements apply: • Your LOGICDATA Control Box has "Works with LOGIClink" on its type plate (see Chapter 7.1) • LOGIClink is used as the only control element. •... -
Page 19: Connection: Standard Option
The Micro-USB Cable is used to connect LOGIClink to your PC or Mac. It is not required INFO during standard operation of the table system. For further advice on software options, contact LOGICDATA. 7.3.2 CONNECTING THE LOGICLINK CAUTION Risk of minor or moderate injury through electric shocks Connecting Cables while the Control Box is connected to the Power Unit may lead to minor or moderate injury through electric shocks. -
Page 20: Connection:retrofit Option
(i.e. tables that are not adjustable and do not have a Control Box) and also to connect to COMPACT-e or SMART-e Control Boxes produced before April 2017. LOGICDATA does not supply this accessory and cannot provide guarantees regarding quality, safety, or performance. -
Page 21: Next Steps
LOGICLINK - MANUAL // PAGE 21 7.4.3 NEXT STEPS After the LOGIClink is connected, assembly differs depending on the version of LOGIClink you have in- stalled. LOGIClink Corporate and Personal Standard: Go to Chapter 7.6, Marking the NFC Reading Area. All other variants: Assembly is now complete. -
Page 22: Connection:dynamic Motion System Option
INFO to the DYNAMIC MOTION system, it can also be used as a parameterization tool. It is not required during standard operation of the table system. For further advice on soft- ware options, contact LOGICDATA. 7.5.2 CONNECTING THE LOGICLINK CAUTION... -
Page 23: Marking The Nfc Reading Area
LOGICLINK - MANUAL // PAGE 23 7.6 MARKING THE NFC READING AREA The following instructions are not relevant for the LOGIClink Personal Lite. If you are installing a LOGIClink Personal Lite, continue at the next chapter. Locate the NFC Reading Area on the table top. The Reading Area should be a 60 x 6o mm square directly over the LOGIClink, 10 mm from the back edge (Fig. -
Page 24: Operation (Manual)
This section of the Operating Manual contains a selection of instructions for operating the Table System to which the LOGIClink is connected using the buttons on the LOGIClink's housing. LOGIClink is compatible with a large number of LOGICDATA Control Boxes and the DYNAMIC MOTION system: •... -
Page 25: Restart
LOGICLINK - MANUAL // PAGE 25 8.2 RESTART This function restarts the LOGIClink. All saved settings are retained. Hold the Restart Key for 5 Seconds 8.3 FACTORY RESET With this function, you can reset the LOGIClink to its factory settings. All saved settings are deleted 1. -
Page 26: Operation Via The App
LOGIClink, you must ensure its safety and the accuracy of its documentation through means of a risk assessment. Contact LOGICDATA for further details. This section of the Operating Manual contains a selection of instructions for operating the Table System to which the LOGIClink is connected using the Motion@Work App. -
Page 27: Navigating The Pairing Windon
LOGICLINK - MANUAL // PAGE 27 9.2.1 NAVIGATING THE PAIRING WINDOW Tap the icon in the top-left Tap "Scan and Connect" Select the correct of the screen to begin to find your LOGIClink. LOGIClink from the list of pairing. available devices. When prompted, tap "Pair Enter the pairing Key Check the top-left... -
Page 28: Standard Operation
LOGICLINK - MANUAL // PAGE 28 9.3 STANDARD OPERATION CAUTION Risk of minor or moderate injury through uncontrolled movement The table may not always stop exactly at the expected position. Failure to anticipate the table's movements may lead to minor or moderate injury through crushing. •... -
Page 29: Saving A Memory Position
LOGICLINK - MANUAL // PAGE 29 9.3.2 SAVING A MEMORY POSITION This function saves a set Table Top position. You can save up to one sitting and one standing position with the Motion@ Work App. Move the Table Top to the desired height (Chapter 9.3.1) On the home screen, tap "Save", then "Sitting"... - Page 30 If you activate the function, perform a new risk new assessment to meet the higher safety requirements (EN 60335-1). These cannot be met by LOGICDATA systems. • LOGICDATA is not liable for injuries or damage caused by activating the double- click function Go to the "Settings" Menu and enable Auto Movement...
-
Page 31: Additional Information
LOGICLINK - MANUAL // PAGE 31 10 ADDITIONAL INFORMATION 10.1 API The LOGIClink API allows you to create customized applications using the LOGIClink. Contact LOGICDATA for further details. 10.2 SOFTWARE-DEPENDENT FUNCTIONS A full list of Software-Dependent Functions can be found in the Operating Manual of the installed Control Box, or the DYNAMIC MOTION system Manual, depending on your chosen configuration. - Page 32 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH Broadmoor Ave SE, Suite D Wirtschaftspark 18 Grand Rapids MI 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 Email: office.na@logicdata.net Email: office.at@logicdata.net...
