t110/t130 – Marine Satellite Television System
INSTALLING THE ANTENNA
10
System Package

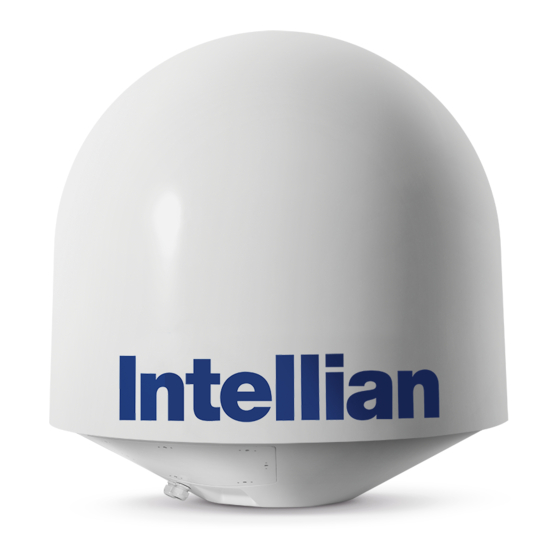

Antenna Unit
ACU (Antenna Control Unit)
Installation Kit
Planning the Installation
Selection of Antenna Installation Site
System Cables
Power Requirement
Tools Required for Installation
Antenna Installation
Unpacking the Wooden Crate
Remove Antenna Shipping Restraints
Antenna Dimensions
Antenna Mounting Templates
Preparing Antenna Supporting Pole
Mounting the Radome
Installing the System Cables
RF Cable Connections
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intellian T130
Summary of Contents for Intellian T130
-
Page 1: System Package
– Marine Satellite Television System INSTALLING THE ANTENNA System Package Antenna Unit ACU (Antenna Control Unit) Installation Kit Planning the Installation Selection of Antenna Installation Site System Cables Power Requirement Tools Required for Installation Antenna Installation Unpacking the Wooden Crate... - Page 2 INTRODUCTION System Package The Intellian t110/t130 consists of two major units, an antenna assembly unit and an antenna control unit. Antenna Unit The antenna unit includes an antenna pedestal inside a radome assembly unit. The pedestal consists of the satellite antenna's main dish and sub-reflector mod- ule with a LNB mounted on a stabilized pedestal.
- Page 3 – Marine Satellite Television System Antenna Control Unit (ACU) The Antenna Control Unit (ACU) provides power to the antenna and controls various settings of the antenna. Additionally, VFD (Vacuum Fluorescent Display) allows for you to operate the ACU in the dark.
-
Page 4: Installation Kit
INSTALLING THE ANTENNA Installation Kit Contains the items required for securing the antenna unit and ACU to your vessel. Antenna Q’ty Description Size Remark Hex. Bolt M12 x 80L Flat Washer Antenna-Deck Spring Washer Hex. Nut Q’ty Description Size Remark Self-Tapping Table Mount ø... - Page 5 – Marine Satellite Television System Other Components Item Image Q’ty Description Size Remark Rack ACU-19inch Rack Bracket Table ACU-Table RG6 Cable Antenna to ACU RG6 Cable Antenna to IRD AC Power Cord 1.5m ACU Power (CEE7/7) PC Serial Cable 1.8m...
- Page 6 INSTALLING THE ANTENNA Item Image Q’ty Description Size Remark Hex Socket M6 x 40L Radome (Top-to-Bottom) Head Cap Dome Washer Radome (Top-to-Bottom) Install CD User Manual Mounting Template Figure 5. Components Box Parts List...
- Page 7 – Marine Satellite Television System Tools Required for Installation 11 mm Spanner Power Drill 13 mm Spanner Cross Head Screwdriver 19 mm Spanner Flat Head Screwdriver 13 mm Drill Bit 5 mm Allen/Hex key Figure 6. Tool Sets for Installation...
-
Page 8: Planning The Installation
INSTALLING THE ANTENNA Planning the Installation Selection of Antenna Installation Site Install the antenna in accordance with the following procedures to ensure maximum performance of the antenna. The ideal antenna site should have a clear view of the horizon or satellite all around it. Please be sure there are no obstacles within 15º... - Page 9 Gyro Compass / GPS Interface Cable (Customer Furnished) Type Multi-conductor, Shielded Number of wires 2 conductors for NMEA 5 conductors for Synchro Figure 9. Recommended Gyro/GPS Cables Power Requirements Intellian t110/t130 has been designed to work on a vessel’s power supply rated at 110-220 V AC.
-
Page 10: Antenna Installation
INSTALLING THE ANTENNA Antenna Installation Unpacking the Wooden Crate of t110/t130 The antenna pedestal is shipped completely assembled in its radome. Remove the four shipping bolts which mount the antenna to the pallet. The pallet should be lifted by means of a suitable sized lifting equipment. -
Page 11: Antenna Dimensions
– Marine Satellite Television System Antenna Dimensions The method of installation and mounting of the antenna may vary with vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation. Confirm the height and diameter of the antenna before installing it. - Page 12 INSTALLING THE ANTENNA Preparing Antenna Supporting Pole Base panel Min. 1cm(0.4”) Max. 3cm(1.2”) Support Pedestal Appr. Ø25.4 cm (10”) Figure 15. Recommended Dimension of Mounting Pole (Unit: cm/inch) WARNING: Ensure that cables have been run through watertight fittings to prevent water entry into the vessel when installation is completed.
- Page 13 – Marine Satellite Television System Mounting the Radome Bolt the Radome base directly to the support pedestal. Makesure to use the Intellian supplied bolts from the accessory box when you mount the radome. Figure 16. Mounting Components Diagram...
- Page 14 Intellian strongly recommends to restrain the antenna pedestal properly while underway when power is removed from the antenna. The normal operating condition for the t110/t130 is to remain powered up at all times.
- Page 15 – Marine Satellite Television System Installing the System Cables The coax cables must be inserted through the cable strain relief(s) at the base of the radome. The cables must be routed from the antenna through the deck and through various ship spaces to the antenna control unit. When pulling the cables in place, avoid sharp bends, kinking, and the use of excessive force.
- Page 16 When all the hardware and cables have been installed, turn on the power switch. Use an RG11 rubber gland if you’re using an RF11 cable instead of an RG6 cable supplied by Intellian. Figure 21. Cable Connection on Power Switch Box...
