Summary of Contents for Intellian s130N

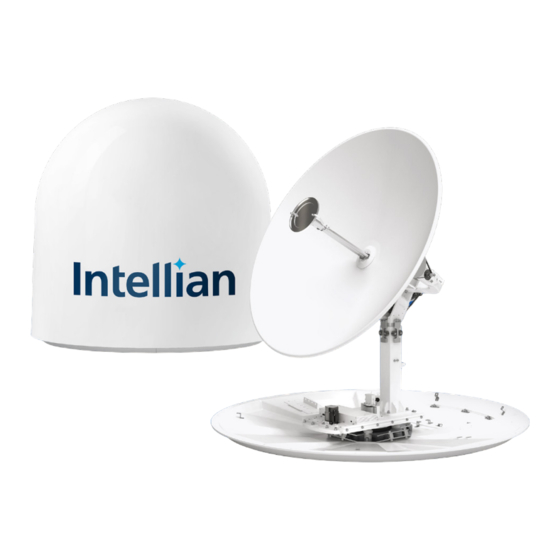

- Page 1 1.25m Maritime Satellite TV Antenna System Installation & Operation User Guide...
- Page 2 Information in this document is subject to change without notice. Every effort has been made to ensure that the information in this manual is accurate. Intellian is not responsible for printing or clerical errors.
-
Page 3: Table Of Contents
Chapter 1. Precautions 1.1 Warnings, Cautions, and Notes 1.2 General Precautions Chapter 2. Certifications Chapter 3. Introduction 3.1 Introduction of s130N 3.2 Features of s130N Chapter 4. Planning Installation 4.1 Selection of Installation Site 4.1.1 Minimize Satellite Blockage 4.1.2 Avoid RF Interference 4.2 System Package... - Page 4 - Maritime Satellite TV Antenna System 6.6.4 MSM Connector Pinout Guide 6.6.5 Connecting Power to ACU 6.6.6 Connecting ACU to ADU 6.6.7 Connecting ACU to Ship's Gyrocompass 6.6.8 Connecting RF Cables (RF1-4) to the Multi-Switch Module 6.7 ACU to PC Communication Setup 6.7.1 TCP/IP Connection...
- Page 5 Table of Contents 9.7.6 Mediator (Optional) 9.8 System Tools 9.8.1 ACU Upgrade 9.8.2 Firmware Upgrade 9.8.3 Library 9.8.4 Satellite Preset 9.8.5 Backup & Restore 9.8.6 Reset 9.8.7 Logs 9.8.8 Diagnostic 9.9 Install Wizard Chapter 10. Specification 10.1 Technical Specification 10.2 Environmental Specification Chapter 11.
- Page 6 - Maritime Satellite TV Antenna System List of Figures Chapter 4. Planning Installation Figure 1: Elevation Limit of Obstacles Figure 2: Potential RF Interference Figure 3: Radome and Pedestal Figure 4: Front Panel of ACU Figure 5: Back Panel of ACU...
-
Page 7: Chapter 1. Precautions
UV rays when assembled according to Intellian instructions, and when the supplied approved hardware and sealants are used. Under no circumstances should an Intellian radome be covered by any protective covering that adheres, bonds, or clings to the surface, whether by self-adhesion or tension. -
Page 8: Chapter 2. Certifications
F F C C C C P P a a r r t t 1 1 5 5 S S u u b b p p a a r r t t B B D D e e c c l l a a r r a a t t i i o o n n o o f f C C o o n n f f o o r r m m i i t t y y ( ( D D o o C C ) ) We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon (Chungho-ri), Pyeongtaek-si, Gyeonggi-do 17709 Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates is in conformity with the requirement of the FCC Part 15 Subpart B. - Page 9 Certifications RED Declaration of Conformity (DoC) We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 17709, Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates is in conformity with the essential requirements and other relevant requirements of the Radio Equipment Directive (2014/53/EU).
- Page 10 - Maritime Satellite TV Antenna System UK-CA Declaration of Conformity We, Intellian Technologies, Inc. located at 18-7, Jinwisandan-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 17709, Korea declare under our sole responsibility that the product(s) described in the below to which this declaration relates is in conformity with the essential requirements and other relevant requirements according to UK legislation Electrical Equipment (Safety) Regulations 2016 (S.I.
-
Page 11: Chapter 3. Introduction
Introduction Chapter 3. Introduction 3.1 Introduction of s130N Intellian’s s130N WorldView™ is a digital marine satellite antenna system specifically designed for reception of worldwide Ku-band satellites, as well as the DIRECTV services, enabling seamless and uninterrupted satellite ® TV reception across multiple coverage areas and service providers. -
Page 12: Features Of S130N
All New hardware and pedestal based on our quality proven VSAT terminals. Modular components are used throughout the new TVRO range, such as dynamic motor brakes with integrated encoders, the Main Control Unit, and the skew assembly. By sharing common modules across Intellian’s new TVRO antenna line, the number of spare parts required is reduced. -
Page 13: Chapter 4. Planning Installation
Planning Installation Chapter 4. Planning Installation The antenna installation requires extreme precaution and safety measures given its size and weight. Failure to follow the correct installation process may lead to injury of the installer and/or cause damage to the system. To maximize the performance of the system, a thorough review of this installation guide is strongly recommended. -
Page 14: Avoid Rf Interference
- Maritime Satellite TV Antenna System 4.1.2 Avoid RF Interference Do not install the antenna near the high power shortwave radar. Most radar transmitters emit RF energy within an elevation range of -15° to +15°. For this reason, you should position the antenna at least 15 feet (4.6 m) away from the radar. -
Page 15: System Package
Planning Installation 4.2 System Package 4.2.1 Above Deck Unit (ADU) The ADU includes an antenna pedestal inside a radome assembly unit. The pedestal consists of a satellite antenna main dish with RF components mounted on a stabilized pedestal. The radome protects the antenna pedestal assembly unit from the severe marine environment. -
Page 16: Antenna Control Unit (Acu)
Figure 4: Front Panel of ACU Figure 5: Back Panel of ACU 4.2.3 Multi Switch Module (MSM) The Intellian Multi-Switch Module provides built-in SWM and standard multi-switch outputs, allowing configuration with DIRECTV satellite receivers and standard satellite receivers. Figure 6: Front Panel of MSM... -
Page 17: Packing List
Planning Installation 4.2.4 Packing List Before beginning installation, make sure you have all the included components. Item Q'ty Size Description Above Deck Unit (ADU) Radome and pedestal 431 mm x 411 mm x Below Deck Unit (BDU) Antenna Control Unit (ACU) 44 mm 431 mm x 411 mm x Multi-Switch Module (MSM) -
Page 18: System Cables (Customer Supplied)
- Maritime Satellite TV Antenna System 4.3 System Cables (Customer Supplied) 4.3.1 RF Cables (Customer Supplied) Due to the signal loss across the length of RF coaxial cable on L-Band, only use 75 Ω coaxial cable types for the RF cables in a standard system installation. The use of different types of cables (50 Ω coaxial types, etc.) can cause problems. -
Page 19: Unpacking System Package
Planning Installation 4.4 Unpacking System Package CAUTION • The package box on the pallet should be lifted by a forklift. • Follow the steps in order for easy and safe unpacking. CAUTION The pallet should be lifted by a forklift. To unpack the wooden crate, follow the procedure below. 1. - Page 20 - Maritime Satellite TV Antenna System 3. Remove the clips (6 ea) on the top panel, and then detach the top panel by carefully pulling it as shown in the figure below. : 6 ea 4. Remove the fixing screws (3 ea side/1 ea back) that secure the side panel (right) and back panel, and then detach the panels.
-
Page 21: Chapter 5. Installing Above Deck Unit (Adu)
Installing Above Deck Unit (ADU) Chapter 5. Installing Above Deck Unit (ADU) 5.1 Antenna Dimensions Before installing the antenna unit, confirm its height and diameter (see figure below). The mounting surface and overall space occupied by the antenna must be sufficient for the fully constructed radome on top of its base frame. -
Page 22: Figure 9: Antenna Bottom View (Outside/Inside)
- Maritime Satellite TV Antenna System Cable Entry Mouting Hole (4 ea) Radome Hatch for Use Direction BOW Mark Ø1681 (66.2) Mouting Hole (4 ea) Radome Hatch Direction Cable Entry Ø1681 (66.2) Figure 9: Antenna Bottom View (Outside/Inside) -
Page 23: Antenna Mounting Hole Pattern
Installing Above Deck Unit (ADU) 5.2 Antenna Mounting Hole Pattern Use the supplied mounting template when drilling mounting holes on the mast. The hole placement for the antenna must match the mounting hole pattern on the template. WARNING When reusing an existing mast, make sure the location of the holes on the mast correspond to the hole locations and sizes printed on the mounting template. -
Page 24: Designing Mast (Example Only)
- Maritime Satellite TV Antenna System 5.3 Designing Mast (Example Only) The installation mast must be robust enough to prevent flex, vibration, and sway when an external force is exerted on the mast with antenna and radome attached. Refer to the following mast drawings for more details. -
Page 25: Figure 11: Recommended Size Of Mast
Installing Above Deck Unit (ADU) Unit: mm (inches) 247.5 (9.7) Antenna Mounting Hole Ø15.0 (0.6), 4ea Ø445.0 (17.5) Plate Thickness Ø200.0 (7.9) Min. 10.0 (0.4) Max. 20.0 (0.8) Ø22 (0.9) Ø22 (0.9) Ø22 (0.9) Figure 11: Recommended Size of Mast... -
Page 26: Routing Rf Cable On Mast (Example Only)
- Maritime Satellite TV Antenna System 5.4 Routing RF Cable on Mast (Example Only) The cable must be routed from the antenna and through the ship to end up at the antenna control unit. When pulling the cables in place, avoid sharp bends, kinking, and excessive force. After placement, seal the deck penetration gland and tie the cable securely in place. -
Page 27: Removing Antenna From Wooden Pallet
Installing Above Deck Unit (ADU) 5.5 Removing Antenna from Wooden Pallet Four radome brackets secure the antenna to the pallet. To remove the radome from the pallet and the brackets from the radome, use the following procedure. 1. Remove the hex head wrench bolts (2 ea) from each of the radome brackets (4 ea) using a wrench. Fixing Bolt (2 ea) 2. - Page 28 - Maritime Satellite TV Antenna System 4. Remove the radome bracket bolt (1 ea) using a wrench, and then detach the radome bracket from the radome. 5. Find the supplied hex head wrench bolts (M6 x 40L), spring washers, and flat washers in the ACU box.
-
Page 29: Moving Antenna Above Mast
Installing Above Deck Unit (ADU) 5.6 Moving Antenna Above Mast The Intellian antenna comes from the factory with the lifting straps pre-mounted. 1. Check the condition of the lifting straps and ensure the shackle is tightened up. 2. Lift and move the antenna above the mast using a crane, and then carefully move the antenna over the mast. -
Page 30: Mounting Antenna On Mast
- Maritime Satellite TV Antenna System 5.7 Mounting Antenna on Mast 1. Bring M12 x 80L hex bolt sets (4 ea) for antenna-mast assembly from the ACU box. 2. Lower the antenna onto the mast using the crane, making sure the mounting holes of the antenna are aligned with those of the mast. - Page 31 Installing Above Deck Unit (ADU) NOTE • Check the positions of the BOW mark, cable glands, and cable brackets when mounting antenna on the mast. • Make sure the cable from the mast is aligned with the cable entry on the bottom of antenna for stable NOTE connection.
-
Page 32: Connecting Rf Cable To Antenna
- Maritime Satellite TV Antenna System 5.8 Connecting RF Cable to Antenna To connect the system cable, access the inside of the radome through the radome hatch. Make sure that there is sufficient space to open the hatch underneath the radome. For the cable connections, terminate cables at each end using proper tools. - Page 33 Cable Ties Cable Brackets 4. Terminate the RF cables with F (M) connectors inside the radome. Intellian recommends using genuine cable connectors and tools. Refer to the cable termination instructions provided by the connector manufacturers. 5. Connect the antenna cable (from ACU) to the power switch unit inside the radome (see Figure 15 and Figure 16).
-
Page 34: Figure 15: Cable Connection Inside Radome
- Maritime Satellite TV Antenna System RF1~RF4 Bracket RF4 Cable Rotary RF3 Cable Joint RF2 Cable Slip RF1 Cable Ring Cable Entry Apertures Power Switch Unit Antenna Cable: FSK, DC48 V (from ACU) Radome Hatch in Use DC Power Cable... -
Page 35: Chapter 6. Installing Below Deck Unit
Installing Below Deck Unit Chapter 6. Installing Below Deck Unit 6.1 Selection of BDU Installation Site The ACU and MSM should be installed below the deck in a location that is dry, cool and ventilated. The front panel of the ACU and MSM should be easily accessible to users. WARNING This product is installed where the circuit breaker is connected to the power source. -
Page 36: Msm Dimensions
- Maritime Satellite TV Antenna System 6.3 MSM Dimensions Confirm the dimensions of the MSM before installing it. 431 (17.0) 466 (18.3) 485 (19.1) Figure 18: MSM Dimensions... -
Page 37: Mounting Acu/Msm
Installing Below Deck Unit 6.4 Mounting ACU/MSM Mounting ACU and MSM in a 19" Rack The ACU and MSM can be installed in a 19" rack using the 4 rack mount brackets that are included in the ACU and MSM boxes. Attach the rack mount brackets to the sides of the ACU and MSM using the included M4 x 12L flat head screws (16 ea). -
Page 38: System Configurations
- Maritime Satellite TV Antenna System 6.5 System Configurations For the proper operation of the satellite communication system, the required components must be connected as shown in the figure. Separate purchase of a ship’s gyrocompass may be needed. 6.5.1 Single Antenna System Configuration The basic system consists of one antenna and one ACU. -
Page 39: Dual Antenna System Configuration (Optional)
Installing Below Deck Unit 6.5.2 Dual Antenna System Configuration (Optional) The dual system configuration consists of two TVRO antennas, two ACU and one Mediator. The new TVRO Mediator which is capable of controlling and managing two TVRO antenna systems simultaneously is sold separately. -
Page 40: Bdu Cable Connection
- Maritime Satellite TV Antenna System 6.6 BDU Cable Connection 6.6.1 ACU Back Panel Connectors The following figure shows the ACU back panel connectors. Below Deck -- (ACU) Wi-Fi Power Antenna Dongle GPS In/Out (Service Only) NMEA 0183 (Gyro) -
Page 41: Acu Connector Pinout Guide
Installing Below Deck Unit 6.6.3 ACU Connector Pinout Guide Reference the following connector pinout information for the connection ports of the ACU. Power Connector IEC 320 C14 Plug Male Signal LIVE NEUTRAL Antenna Connector RF F Type Female Conductor Function Inner DATA, POWER Outer... - Page 42 - Maritime Satellite TV Antenna System NMEA 2000 (Heading) Input Mini-C 5-Pin Male Signal Shield NETS, (power supply positive, +V) NETC, (power supply common, -V) NET-H (CAN-H) NET-L (CAN-L) GPS Connector D-Sub 9-Pin Female Signal GPS OUTA GPS_IN GPS_OUTB...
- Page 43 Installing Below Deck Unit ETHERNET (LAN) Connectors 1 2 3 4 5 6 7 8 RJ-45 Female Signal Wi-Fi Dongle USB Connector USB A Female Signal +5 V DATA- DATA+...
-
Page 44: Msm Connector Pinout Guide
- Maritime Satellite TV Antenna System 6.6.4 MSM Connector Pinout Guide Check the following connector pinout information applied to the connection ports of the MSM. Power Connector IEC 320 C14 Plug Male Signal LIVE NEUTRAL Cable Connector RF F Type Female... -
Page 45: Connecting Power To Acu
Installing Below Deck Unit 6.6.5 Connecting Power to ACU Connect the power cord from the power supply to the power connector (100-240 V AC) of ACU. Power (100-240 VAC, 50/60 Hz, 3.3 A) 100-240 V AC (Power Supply) Figure 24: Connecting Power to ACU 6.6.6 Connecting ACU to ADU Connect an Antenna Cable (F to F) (customer supplied) from the ANTENNA (F) port of the ACU to the Antenna RF (F) port of radome (antenna). -
Page 46: Connecting Acu To Ship's Gyrocompass
For satellite tracking, connect a ship gyrocompass to the antenna system through the gyrocompass interface of the ACU. The Intellian ACU supports NMEA 0183 and NMEA 2000 gyrocompass inputs. If the gyrocompass has a different output standard, use a compass converter to supply the required NMEA input. -
Page 47: Connecting Rf Cables (Rf1-4) To The Multi-Switch Module
Installing Below Deck Unit 6.6.8 Connecting RF Cables (RF1-4) to the Multi-Switch Module The Intellian s130N is capable of receiving multiband and multi-polarization satellite TV service around the globe using the Intellian WorldView Trio LNB module. 1. Connect the antenna cable from the ACU Antenna connector in the radome to the Antenna connetor on the rear of the ACU. - Page 48 - Maritime Satellite TV Antenna System NOTE Intellian s130N system includes a multi-switch module. Make sure the followings before installing system cables. NOTE 1. When you select a target satellite that is configured in single LNB mode (such as 10750 or 11250), only RF1 (VL) and RF2 (HL) have signals from the Worldview™...
-
Page 49: Acu To Pc Communication Setup
1. Connect an Ethernet cable from the Management LAN port on the front of the ACU to the LAN port of PC. The network connection is established automatically. 2. Open a web browser (Chrome, Firefox, etc.), and then enter the following IP address to access the Intellian AptusNTV Login page. • IP Address: 192.168.2.1 (Default) ACU - Front Panel... -
Page 50: Usb Connection
- Maritime Satellite TV Antenna System 6.7.2 USB Connection Using Right Side USB Port on ACU Front Panel Connect a USB flash drive to the right side USB port on the front panel of ACU to download logs, backup/ restore antenna settings, and upgrade firmware. -
Page 51: Wi-Fi Connection
6.7.3 Wi-Fi Connection Connection through Wi-Fi Dongle Intellian provides the Wi-Fi Dongle for Wi-Fi connection to AptusNTV. You can connect a PC to the ACU via Wi- Fi for easy management and control whenever you are on the vessel. 1. Connect an Ethernet cable from the Management LAN port on the front panel of ACU to a LAN port of a PC. -
Page 52: Chapter 7. Operating Install Wizard
- Maritime Satellite TV Antenna System Chapter 7. Operating Install Wizard 7.1 Turning On System Make sure the antenna has a clear view of the sky. Press the POWER button on the front panel of the Below Deck Unit (ACU), and then wait a few minutes for system startup. Once the antenna finds the satellite, the TRACKING indicator light on the ACU display will turn green. -
Page 53: Starting Install Wizard
Operating Install Wizard 7.3 Starting Install Wizard The Install Wizard will give you a guide by going through the steps of setup for the antenna system commissioning. We highly recommend using this wizard to complete the installation and commissioning of the system. - Page 54 - Maritime Satellite TV Antenna System ü Step 2: Heading Set the Heading Device to NMEA. • Heading Device: The colored indicator next to the title shows the heading device connection status. - Blue: Ship’s heading device is connected.
- Page 55 Operating Install Wizard ü Step 3: Satellite Display, track, and edit the satellites in the satellite set. For more information about using the Satellite Set, refer to "9.7.3 Satellite Set" on page 88. • Satellite Set: Displays the five satellites in the current satellite set. The tracked satellite has a green Active icon.
- Page 56 - Maritime Satellite TV Antenna System ü Step 4: Set Bow Offset Set the bow offset by tracking a satellite with a strong signal. First make sure you have selected a satellite with a strong signal on the previous step, Satellite Set.
- Page 57 Operating Install Wizard ü Step 5: Blockage Up to five antenna blockage zones can be set by entering the relative azimuth and elevation sectors where line of site will be blocked. Setting blockage zones ensures that the programs viewers watch won’t be interrupted by keeping the antenna from pointing to those zones.
-
Page 58: Chapter 8. Operating Acu
- Maritime Satellite TV Antenna System Chapter 8. Operating ACU 8.1 Introduction 8.1.1 ACU Front Panel View The following figure shows the front panel the ACU. Right Side USB Port: OLED Display For Log Data Download, Backup/Restore Antenna Settings,... -
Page 59: Acu Display Menu
Operating ACU 8.1.2 ACU Display Menu The following figure shows the ACU display menu. HDG 1 2 3 4 5 116.0E TRACKING DTV101 AZ : 39.2 (90.0) EL : 45.7 SK : 19.2 The following table describes the function of each touch key. Item Description ①... -
Page 60: Startup
- Maritime Satellite TV Antenna System 8.2 Startup With the system is installed and power is applied, the ACU display will show the following sequence. ü Startup Intellian XXXXXXX Intellian's model name is displayed. ANTENNA INFO ü Initialize Antenna Information ü... -
Page 61: Satellite Information
Operating ACU When the antenna is controlled by Aptus NTV, the ACU displays the control mode status. REBOOT ü Control Mode Status ANTENNA (Displays REBOOT ANTENNA mode or SETUP MODE) SETUP MODE If the antenna does not communicate with ACU, the COMMUNICATION ERROR is displayed. COMMUNICATION ERROR 8.3 Satellite Information... - Page 62 - Maritime Satellite TV Antenna System Selecting other satellites information Press ü Main Display Move Key 116.0E GPS HDG 1 2 3 4 5 TRACKING DTV101 AZ: 39.2(90.0) EL:45.7 SK:19.2 ü Satellite Information Display 1:DTV1 2:XXX 3: XXX 4: XXX 5: XXX LONG :116.0E...
-
Page 63: Interface Information
Operating ACU 8.4 Interface Information Displays the GPS/heading type in use and the connection status. Press ü Main Display Move Key 116.0E GPS HDG 1 2 3 4 5 DTV101 TRACKING AZ: 39.2(90.0) EL:45.7 SK:19.2 Press ü Satellite Information Display Move Key 1:DTV1 2:XXX... -
Page 64: Antenna Information
- Maritime Satellite TV Antenna System 8.5 Antenna Information Displays antenna serial number, ACU serial number, firmware version, and ACU software version of the system. Press Move Key 116.0E GPS HDG 1 2 3 4 5 TRACKING DTV101 ü Main Display AZ: 39.2(90.0) -
Page 65: Diagnosis
Operating ACU 8.6 Diagnosis Executes antenna Diagnosis tests and shows the real-time diagnostic results. Press Move Key 116.0E GPS HDG 1 2 3 4 5 ü Main Display TRACKING DTV101 AZ: 39.2(90.0) EL:45.7 SK:19.2 Press Move Key 1:DTV1 2:XXX 3: XXX 4: XXX 5: XXX LONG :116.0E... - Page 66 - Maritime Satellite TV Antenna System Refer to the diagnosis codes for the test results. DIAG : CODE 101 1 - - - O O 7 O O 10 O O 13 14 O O Item Description Displays the diagnosis code for the test that is currently running. When all tests are complete, DONE is displayed.
-
Page 67: Usb Function
Operating ACU 8.7 USB Function To use this function, insert a USB flash drive into the right side USB port on the front of the ACU. The USB Function includes four menus (LOG DOWNLOAD, FIRMWARE UPLOAD, BACKUP TO USB, RESTORE FROM USB). -
Page 68: Log Download
- Maritime Satellite TV Antenna System 8.7.1 Log Download Downloads all data logs to the USB flash drive. Press USB FUNCTION Move Key BACK ü USB Function Menu Display LOG DOWNLOAD FIRMWARE UPLOAD BACKUP TO USB RESTORE FROM USB... -
Page 69: Firmware Upload
To use the Firmware Upload function, you must use the exact folder structure in the figure below. The function supports FAT32 or older formatted drives. You upgrade the antenna system by copying the FWP file to the /intellian/s130N/firmware folder on a USB flash drive. You also must rename the FWP file to CTR_T4.fwp. -
Page 70: Backup To Usb
- Maritime Satellite TV Antenna System 8.7.3 Backup to USB Backs up the antenna setting files to the USB flash drive. Press USB FUNCTION Move Key BACK ü USB Function Menu Display LOG DOWNLOAD FIRMWARE UPLOAD x3 times BACKUP TO USB... -
Page 71: Restore From Usb
Operating ACU 8.7.4 Restore From USB Restores the antenna setting by using the setting files saved on the USB flash drive. Press USB FUNCTION Move Key BACK ü USB Function Menu Display LOG DOWNLOAD FIRMWARE UPLOAD x4 times BACKUP TO USB RESTORE FROM USB USB FUNCTION BACK... -
Page 72: Chapter 9. Using Aptusntv
- Maritime Satellite TV Antenna System Chapter 9. Using AptusNTV 9.1 Introduction With the embedded AptusNTV software, the antenna can be monitored, controlled, and diagnosed remotely from anywhere, anytime through TCP/IP protocol. This saves the time and cost generated by various maintenance activities, such as upgrading firmware, tracking parameter resets, and diagnosing system issues. -
Page 73: Main Page (Page Login)
Using AptusNTV 9.3 Main Page (Page Login) The Intellian software Aptus provides different user access levels to protect the system for safe operation. The user level determines the accessible range of functions in the software (see the table below). Log into the ACU by typing in a User ID and Password. The table below contains the factory default values. -
Page 74: Top Menus
- Maritime Satellite TV Antenna System 9.4 Top Menus Once you log in, the following information and menus are displayed. intellian Item Description ① Target Satellite Displays the the target satellite. ② Displays the satellite lock status. If the lock icon is lit green, the antenna has Lock locked on the satellite. -
Page 75: Account Menu
Using AptusNTV 9.5 Account Menu 1. Click the User ID to manage the user account. 2. Select Account, User Management, System Information or Support for user management. Select Logout to log out of AptusNTV . -
Page 76: Account
- Maritime Satellite TV Antenna System 9.5.1 Account Item Description ① Account Updates your password and sets time-outs. You can change your Password. • ID: Displays your user ID. • Old Password: Enter the current password. • New Password: Enter the new password. -
Page 77: User Management
Using AptusNTV 9.5.2 User Management Editable User Permission Menu Item Description ① User Sets the a user ID and password information. Management Creates new user accounts. To create a new user account, do the following: 1. Click the (Add) button. The User Account window is displayed. ②... -
Page 78: System Information
- Maritime Satellite TV Antenna System 9.5.3 System Information 125 cm s130N XXXXXXXXX XXXXXXXXX v0.18.001 v0.90.902 Aptus NTV Item Description ① System Use this page to display system information and change the antenna name. Information System ② Information Displays detailed antenna information. -
Page 79: Support
• Download Manual: Click the Download Manual button to view the User ② Manual Manual. • Support Desk: Click the Support Desk button to open Intellian's contact details for support. ③ Provides answers for frequently asked questions about the product. -
Page 80: Dashboard
- Maritime Satellite TV Antenna System 9.6 Dashboard The Dashboard menu item provides access to quick monitoring of the antenna status. Once displayed, the Dashboard helps you arrange panels on a single screen, while providing you with a broad view of a variety of information at once. - Page 81 Using AptusNTV Removing Panels 1. Click the gear icon on the right side of the page (see figure below). The Dashboard Setting window displays. 2. Uncheck the box of the panel that you wish to remove from the dashboard. 3. Click the Confirm button to apply the settings to the system.
-
Page 82: How To Use Shortcut Settings
- Maritime Satellite TV Antenna System 9.6.2 How to Use Shortcut Settings Many panels on the dashboard provide a shortcut function. Using the Shortcut button on right side of the panel, you can easily access detailed information and manage settings. -
Page 83: Setup
Using AptusNTV 9.7 Setup This menu sets and displays the Ship, Antenna, Satellite, Network, Wi-Fi, and Mediator. 9.7.1 Ship Item Description ① Ship Sets the ship information and blockage zones. - Page 84 - Maritime Satellite TV Antenna System Item Description Sets the GPS position of the vessel for searching for a satellite. Check the GPS status connected to the antenna system. The indicator to the left of the help button shows the GPS status. Make sure the GPS indicator is Blue.
-
Page 85: Antenna Setting
Using AptusNTV 9.7.2 Antenna Setting... - Page 86 - Maritime Satellite TV Antenna System Item Description Sets current antenna position and search parameters. These parameters should ① Antenna only be changed by an authorized service technician. Improper setting of these parameters will render your system inoperable. The system must be in Setup Mode to modify these settings.
- Page 87 Using AptusNTV Item Description NOTE: The rate values of the azimuth, elevation, and cross-level axes were calibrated to the optimal condition at the factory prior to shipment. If the additional rate adjustment is required, make sure that the antenna is placed on a rigid and flat platform.
-
Page 88: Satellite Set
- Maritime Satellite TV Antenna System 9.7.3 Satellite Set Item Description ① Sets the current tracking satellite from the library and edits the satellite Satellite information. Sets the current tracking satellite from the library and edits the satellite information. -
Page 89: Network
Using AptusNTV 9.7.4 Network Item Description ① Network Sets the ACU's internal IP address and ports. Sets the Management Port's network configuration. The Management Port is located on the ACU front panel. • IP Address: Set the network IP address (Factory default: 192.168.2.1). •... -
Page 90: Wi-Fi
- Maritime Satellite TV Antenna System 9.7.5 Wi-Fi Item Description ① Wi-Fi Sets up the Wi-Fi connection of ACU. Displays Wi-Fi configuration. Connect the Wi-Fi dongle to the USB port on the ACU rear panel. When Wi-Fi is enabled, the indicator to the left of the help icon is either blue (Wi-Fi broadcasting) or black (Wi-Fi not broadcasting). -
Page 91: Mediator (Optional)
Using AptusNTV 9.7.6 Mediator (Optional) Item Description ① Mediator Sets up the dual antenna mediation function. Sets up the mediation function. This function works in a dual antenna system with a dual TVRO mediator. ② • Use: Set up the mediation function by selecting Enable or Disable. Mediation Click the Apply button to apply the settings to the system. -
Page 92: System Tools
- Maritime Satellite TV Antenna System 9.8 System Tools This menu sets and displays the ACU Upgrade, F/W Upgrade, Library, Satellite Preset, Backup & Restore, Reset, Logs and Diagnostic system tools. 9.8.1 ACU Upgrade Item Description ① ACU Upgrade Upgrades antenna software. - Page 93 Using AptusNTV Antenna Software Upgrade Procedure: 1. Click the Browse button and, in the Windows Open dialog box, select the upgrade package file to upload. 2. Click the Upload button to transfer the firmware package file (*.bin) to the Antenna module. The antenna software versions are displayed in a new window.
-
Page 94: Firmware Upgrade
- Maritime Satellite TV Antenna System 9.8.2 Firmware Upgrade Item Description ① F/W Upgrade Upgrades the firmware of antenna. Browse and select the firmware file to upload, and then click the Upload button. The upload may take a few minutes to complete. The upload time may vary ②... - Page 95 Using AptusNTV Antenna Firmware Upgrade Procedure: 1. Click the Browse button and, in the Windows Open dialog box, select the upgrade package file to upload. 2. Click on the Upload button to transfer the Firmware file (*.fwp) to the Antenna module. The antenna Software versions are displayed in a new window.
-
Page 96: Library
- Maritime Satellite TV Antenna System 9.8.3 Library Item Description ① Library Displays and edits the satellite library information. Upload or download the satellite library. • Select a library file to upload: Click Browse button to select the library file to ②... -
Page 97: Satellite Preset
Using AptusNTV 9.8.4 Satellite Preset Item Description ① Satellite Preset Displays and Sets the satellite preset option. ② Satellite Preset Selects a registered satellite preset from the drop-down list. list You can change a preset list name. Click Change Preset Name and change it. Creates the satellite preset from the library. -
Page 98: Backup & Restore
- Maritime Satellite TV Antenna System 9.8.5 Backup & Restore Item Description ① Backup and Backs up user configuration files to PC and Restores the ACU/Antenna settings. Restore Backs up or restores ACU setting. • ACU Backup: Stores user Host configuration files on your PC. -
Page 99: Reset
Using AptusNTV 9.8.6 Reset Item Description ① Reset Resets the antenna system, settings and logs. ② Click the Reboot button to reboot the antenna system. The user configuration is Reboot not reinintialized. ③ Click the Factory Reset button to initialize the antenna system. Ther user Factory Reset configuration is inintialized. -
Page 100: Logs
- Maritime Satellite TV Antenna System 9.8.7 Logs Item Description ① Logs Downloads the antenna log data. Allows you to download ACU and antenna log files for a specified date range. • From/To: Sets the date range for which you want to download files. Any log data up to a month old can be downloaded. -
Page 101: Diagnostic
Using AptusNTV 9.8.8 Diagnostic Item Description ① Diagnostic Executes antenna Diagnostic test to check the antenna status. Select the checkbox for each test that you want to run on the system. You can ② select all the tests quickly by selecting the top checkbox. Diagnostic Click the Start button to run the test. -
Page 102: Install Wizard
- Maritime Satellite TV Antenna System 9.9 Install Wizard Refer to "7.3 Starting Install Wizard" on page 53 for more details. -
Page 103: Chapter 10. Specification
Specification Chapter 10. Specification 10.1 Technical Specification Above Deck Unit (ADU: Antenna) Antenna Radome Height 1724 mm (67.9") Antenna Radome Diameter Ø1681 mm (66.2") Antenna Reflector Diameter Ø1250 mm (49.2") Antenna Unit Weight (with Radome) 139 kg (306.4 Ibs) Platform 3-axis: Azimuth, Elevation, Cross-level 3-axis Velocity Mode Servo Control: Positioning... - Page 104 - Maritime Satellite TV Antenna System Below Deck Unit (ACU) ACU Size 431 mm x 350 mm x 44.3 mm (17.0" x 13.8" x 1.7") ACU Weight 4.8 kg (10.6 lbs) Display 256 x 64 Graphic OLED Two Push Keys...
-
Page 105: Environmental Specification
Specification 10.2 Environmental Specification Test Intellian Standard Operational IEC-60945 (-25° C to +55° C, Power On) Temperature IEC-60945 (-40° C to +80° C, Powered On and a non-functional Survival (ADU) state) Storage IEC-60945 (-40° C to +85° C, Power off) Operational IEC-60945 (-15°... -
Page 106: Chapter 11. Warranty
Intellian Technologies, will (at its sole discretion) repair or replace during the warranty period any product which is proven to be defective in materials or workmanship, in accordance with the relevant product warranty policy. -
Page 107: Chapter 12. Appendix
Appendix Chapter 12. Appendix 12.1 Appendix A. Tightening Torque Specification This table shows the recommended values of tightening torques. Bolt Size Tightening Torque (N-m) M2.5...
