GE Current Lumination IS Series Installation Manual page 8

Dimming line
(optional)
3

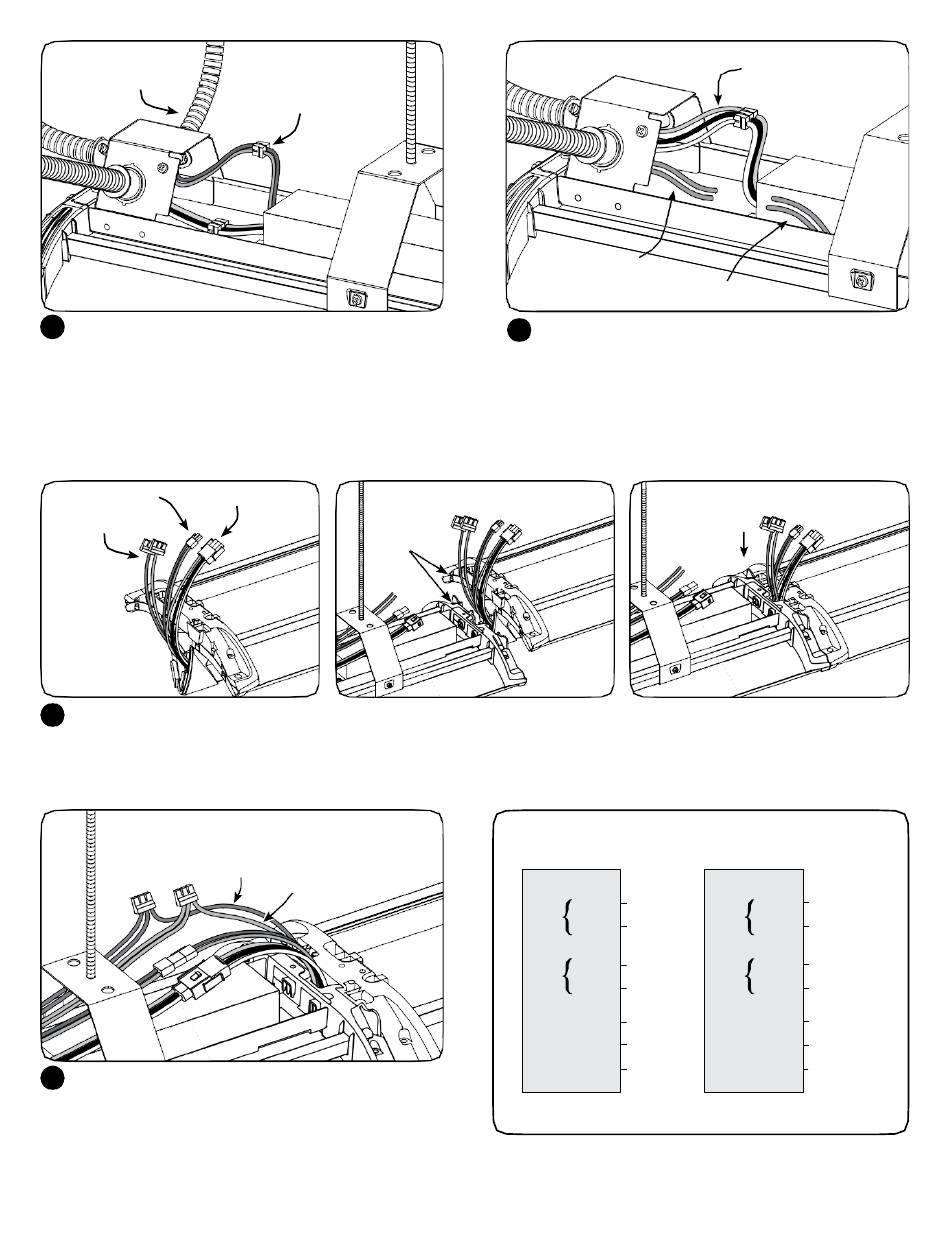

Optional dimmer: Install UL listed electrical fitting and
insert dimming control wires through. Connect dimming
control wires (grey and violet for 0-10V or violet and
violet/white stripe for DALI) to the similarly colored
fixture wires using the provided push-in wire nuts
(starter unit) or using wire nuts (starter kit).
Purple, grey
Green, black, white
Brown, brown-white
Pull out
continuous
wiring
5
Pull the continuous wiring out of the next luminaire being mounted and slide the bridge of the luminaire down onto the bridge of
the already installed luminaire so that the tabs and slots at top and bottom nest into one another. The bridges will engage with a
load click when fully mated.
Brown
6
Connect the power and control connectors of the
through wiring harness. Connect AC Circuit #1 (black,
white and green harness) from first fixture to AC Circuit
#1 from second fixture. Connect ACCircuit # 2 (brown
and brown/white stripe harness) from first fixture to
AC Circuit #2 from second fixture and connect second
circuit supply lines of starter unit.
Dimming
connections
Align tabs
with slots
Brown/white stripe
Second circuitwires
Brown, Brown/white stripe wires
4
2nd circuit connection: Install listed electrical fittings in
the second knockout holes for wire protection and pass
supply conduit through electrical fittings. The second
circuit wires (line and neutral) will be connected to the
second luminaire in the continuous run. Leave them
unconnected to the brown and brown/white stripe wires
for now.
Wiring Diagrams
DALI
Fixture
Black
Line
Circuit
#1
White
Neutral
Line Brown
Circuit
#2
Neutral Brown/white
Green
Ground
DALI
Violet/White
DALI Violet
8
First circuitwires
Push down
to engage
0-10V
Fixture
Line Black
Circuit
#1
White
Neutral
Line Brown
Circuit
#2
Neutral Brown/white
Green
Ground
0-10V Violet
0-10V Grey (18 AWG)
