- Page 1 USER HANDBOOK Ω MEGA s t a i r l i f t A – 4724 Neukirchen/W, Salling 8 Tel: 07278/3514-15, Fax: 07278/3514-12 Email: office.lehner@gmx.at Mobil: 0664/3526190...
-
Page 2: Table Of Contents
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA CONTENTS INTRODUCTION..........................2 KEY TO SYMBOLS USED IN THIS HANDBOOK................ 3 ATTENTION - SAFETY FIRST ....................... 4 OMEGA STAIRLIFT........................6 General layout: ............................ 6 Technical data............................7 Carriage with platform for wheelchairs ....................8 Carriage with seat performance...................... -
Page 3: Introduction
Congratulations on your decision to buy a Lehner-Stairlift, and welcome to the growing circle of satisfied customers. The OMEGA stairlift marks the beginning of a new generation of platform stairlifts equipped with a well-established power train. Quiet and easy operation, low operating costs, and individual adaptation to structural situations are just a few of the outstanding features of OMEGA lifts. -
Page 4: Key To Symbols Used In This Handbook
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Key to Symbols Used in this Handbook The following signs stress important passages: Pay attention to all paragraphs marked with this sign. These paragraphs contain important hints that will insure flawless operation of the lift. -
Page 5: Attention - Safety First
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA ATTENTION - SAFETY FIRST Please pay careful attention to the next points/instructions! User group: OMEGA Only specially instructed persons are to use the stairlift and must take responsibility for all others who are present. - Page 6 Please contact LEHNER or one of its authorised partners for service! We recommend preventive checks, i.e. a regular servicing of the OMEGA stairlift will insure safe operation for a long time. Any abnormal operation of the lift should be reported to the servicing engineer.
-
Page 7: Omega Stairlift

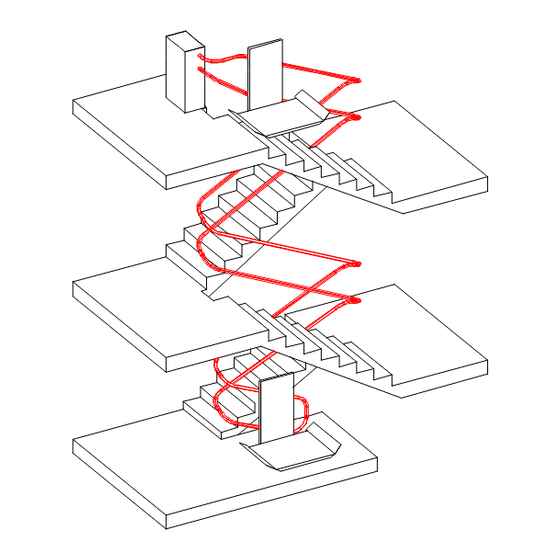

USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA OMEGA STAIRLIFT General layout: wall control lower stop position drive type K horizontal railway carriage upper railway tube upper stop position lower railway tube intermediate stop position overspeed governor Omega platform lift... -
Page 8: Technical Data
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Technical data standard performance optional performance feature detail drive type S drive type K railway bends variation in gradient gradients 0...65° horizontal railway negative bend length up to 15 m length up to 25 m... -
Page 9: Carriage With Platform For Wheelchairs
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Carriage with platform for wheelchairs key switch carriage emergency STOP directional control ramps folding seat (option) 4.barriers, liftable Carriage with seat performance directional control armrest seat footrest carriage, sidewall Horizontal railway If the gradient is less than 20 degrees a third pipe is required to stabilise the platform. -
Page 10: Drive Type S
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Drive type S gear box motor hand wheel hand lever for break release Drive type K drive wheel gearbox motor hand lever for break release main power switch hand wheel control box... -
Page 11: Operation
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA OPERATION General OMEGA lifts are safe and easy to use. The technical control of the lift is entirely adapted to the abilities of physically handicapped persons. Please refer to the general layouts on the previous pages for a better understanding of the lift. -
Page 12: Carriages Equipped With A Manual Platform
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA The following comments are valid only for carriages equipped with a manual platform: Wall controls Most lifts are equipped with wall controls that allow control from either end of the staircase. -
Page 13: Driving/Moving Onto The Platform
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Driving/Moving onto the platform When the unlocked barrier is opened, the ramp will automatically fold down. The barrier down to the staircase is always locked (excepting at the lower stop position = special customer request). -
Page 14: Leaving The Platform
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Leaving the platform The stairlift has been designed to stop in the correct position at each station. Release the directional control when the carriage has reached the desired stop position. Swith off the platform control by turning the key into “OFF” position. Take out the key. Lift the unlocked barriere and the ramps will automatically descend to the turn down position. -
Page 15: Carriages Equipped With Automatic Platforms And Barriers
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA The following comments are valid only for carriages equipped with automatic platforms and barriers: Wall controls All automatic platform lifts are equipped with wall controls that allow control from either end of the staircase and allow to fold down or up the platform. -
Page 16: Driving/Moving Onto The Platform
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Driving/Moving onto the platform You can move onto the platform after you have opended the platform and the barriere in accordance with the former chapter. Always face the direction of travel and use the wheelchair brake for safety. -
Page 17: Leaving The Platform
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Leaving the platform The stairlift has been designed to stop in the correct position at each station. Keep the directional control button pressed until the barrier has folded up and the ramp has folded down to the correct position. -
Page 18: Troubleshooting
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA TROUBLESHOOTING OMEGA For safety reasons, the stairlift is equipped with several electrical and mechanical locking devices. The stairlift will not work if any of these devices are tripped or if the order of events is incorrect. - Page 19 USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA The landing control has been turned on with the key, the directional control is pressed, but the carriage does not move. Close the Is the platform closed? platform! Check if the ramps and the safety pad (if...
- Page 20 USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA The carriage start travelling after pressing the directional control on the platform and stops after about 10 cm. Please close Are all barriers the barriers! closed? Check if the ramps and the safety pad (if...
-
Page 21: Rescue Of Passengers
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA RESCUE OF PASSENGERS When the carriage stops between two stations and all instructions given on the previous page are checked, the passenger must be rescued from the carriage. Case 1 The occupied platform is near a stop position. - Page 22 USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Case 2 The occupied platform is not close to a stop position. Notice: Position of the hand lever for break release and the hand wheel is explained on page 9. The describtion of the main power switch is on page 10.
- Page 23 USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA Emergency unclamping of barriers: Ill. 5 For unclamping a barrier somewhere out of a station, press the lever located at the back of the carriage (see illustration 5). The position of this lever is shown in detail in Illustration 6 and 7.
-
Page 24: Optional Feature
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA OPTIONAL FEATURE Safety pad The safety pad on the underside of the platform serves as an additional safety feature when travelling downstairs. The safety pad is pressure sensitive and will stop the lift immediately if it makes contact with any obstacle. -
Page 25: Erection
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA ERECTION Electrical installation Only LEHNER or one of our authorised partners is allowed to carry out the electrical installation. If someone else does the electrical installation, you will lose the right to use the lift. -
Page 26: Maintenance
USER HANDBOOK Edition Jan. 2004 for stairlift type OMEGA MAINTENANCE It is absolutely necessary that the lift is regularly serviced. It is recommended that a service contract be made with the supplier. LEHNER or any of our authorised partners offers a special maintenance program adapted to the frequency of use.
