User Manual
DELT
T r e p p e n l i f t
A – 4724 Neukirchen/W, Salling 8
Tel: 07278/3514
Email: sales@lehnerlifttechnik.at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta and is the answer not in the manual?

Questions and answers

Related Manuals for Lehner Lifttechnik Delta

Summary of Contents for Lehner Lifttechnik Delta

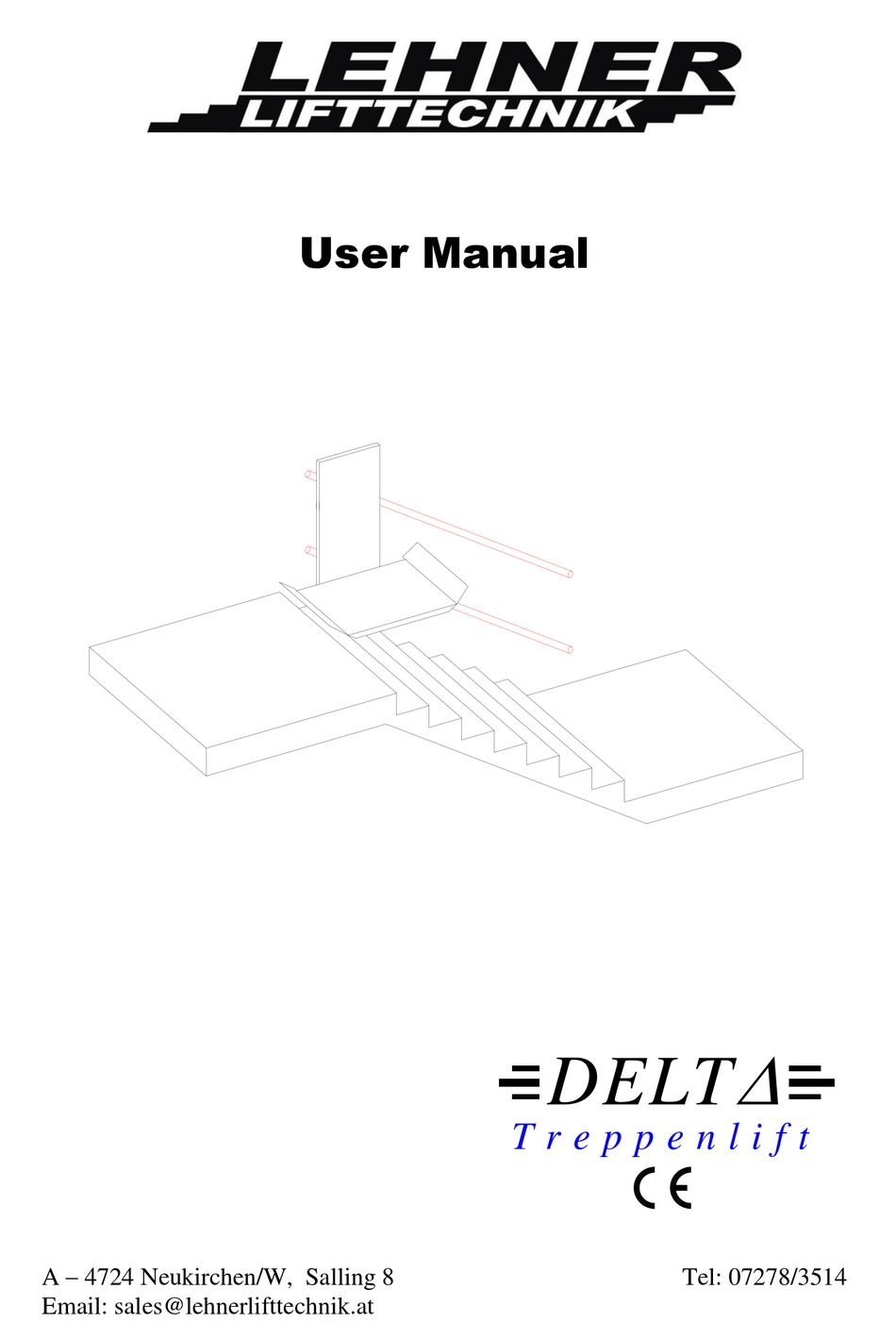

  • Page 1 User Manual  DELT T r e p p e n l i f t A – 4724 Neukirchen/W, Salling 8 Tel: 07278/3514 Email: sales@lehnerlifttechnik.at...

  • Page 2: Table Of Contents

    DELTA User Manual Edition Feb 2008 CONTENTS Introduction ............................2 Key to Symbols Used in this Handbook ................... 3 ATTENTION - SAFETY FIRST ..................... 4  The DELT stairlift ..........................7 General layout: ............................7 Technical details ............................8 Drive ................................9 Battery charge system ..........................

  • Page 3: Introduction

    Congratulations on your decision to buy a Lehner-Stairlift, and welcome to the growing circle of satisfied customers. The DELTA stairlift marks the beginning of a new generation of platform stairlifts equipped with a well-established power train. Quiet and easy operation, low operating costs, and appealing and space saving design are just a few of the outstanding features of DELTA lifts.

  • Page 4: Key To Symbols Used In This Handbook

    DELTA User Manual Edition Feb 2008 Key to Symbols Used in this Handbook The following signs stress important passages: Pay attention to all paragraphs marked with this sign. These paragraphs contain important hints that will insure flawless operation of the lift.

  • Page 5: Attention - Safety First

    DELTA User Manual Edition Feb 2008 ATTENTION - SAFETY FIRST Please pay careful attention to the next points/instructions!  DELT Operator of the stairlift For every stairlift minimum one responsible person has to be appointed; during the operation of the unit this person has to be easily reachable. The unit has to be preserved failsafe.
  • Page 6 DELTA User Manual Edition Feb 2008 Load capacity: The maximum load is indicated on the sideboard of the carriage. Do not exceed this limit! Attention: The stairlift can only be used by one person at one time. It is not allowed to transport an attendant person.
  • Page 7 DELTA User Manual Edition Feb 2008 abnormal noise emissions, do not use the lift. Call LEHNER for help! Follow all instructions given by LEHNER experts, fitting teams and service staff. Lift up the upper armrest before moving onto the platform or leaving the platform when using a carriage with seat performance! ...

  • Page 8: The Delt  Stairlift

    DELTA User Manual Edition Feb 2008  The DELT stairlift General layout: Figure 1 Layout Wall control Intermediate stop position Recharger Upper railway tube Carriage with drive Lower railway tube Upper stop position Overspeed governor Lower stop position  Treppenlift...

  • Page 9: Technical Details

    DELTA User Manual Edition Feb 2008 Technical details standard performance optional performance Feature Detail Railway Gradients 15...45° Length up to 15 m Length over 15 m Speed appr. 0,1 m/s Power 0,5 kW Voltage 24V DC 1 x 230 V for recharger...

  • Page 10: Drive

    DELTA User Manual Edition Feb 2008 Carriage with platform for wheelchairs Key switch Directional control Emergency STOP Folding seat (option) Ramps Main control button at the carriage side Barriers, liftable Green lamp Carriage cover Drive (behind the carriage sidewall) Gear box...

  • Page 11: Battery Charge System

    The recharging occurs in the upper and lower stop positions by recharge contacts. As a consequence, if the DELTA is not in use it is important that it is parked in the stop positions.

  • Page 12: Landing Controls

    Edition Feb 2008 Landing controls The DELTA stairlift is equipped with landing controls that communicate via radio with the carriage. With these controls the lift can be called and sent when the platform is closed. In the case of automatic platform the platform also can be opened and closed with the controls.

  • Page 13: Operation

    DELTA User Manual Edition Feb 2008 OPERATION General  DELT lifts are safe and easy to use. The technical control of the lift is entirely adapted to the abilities of physically handicapped persons. Please refer to the general layouts on the previous pages for a better understanding of the lift.

  • Page 14: Unfolding The Platform

    DELTA User Manual Edition Feb 2008 Using the Remote Control The remote control must be activated with the key switch before operation. The remote controls are used for calling and sending the platform and also for folding and unfolding. A green light is flashing by correct use. The remote Control are working with 9V batteries.

  • Page 15: Driving/Moving Onto The Platform

    DELTA User Manual Edition Feb 2008 Driving/Moving onto the platform When the unlocked barrier is opened, the Open ramp will automatically fold down. The barrier barrier down to the staircase is always and enter locked (excepting at the lower stop platform position = special customer request).
  • Page 16 DELTA User Manual Edition Feb 2008 ➢ Put in the key and turn it into “ON” position. The green lamp will start to Schlüsselschalter glow. einschalten ➢ Now the carriage can be set in motion by pressing the “up” or “down”...

  • Page 17: Leaving The Platform

    DELTA User Manual Edition Feb 2008 Leaving the platform The stairlift has been designed to stop in Turn off key switch the correct position at each station. and lift up the Release the directional control when the barrier carriage has reached the desired stop position.

  • Page 18: The Following Comments Are Valid Only For Carriages Equipped With Automatic Platforms And Barriers

    Wall controls All Delta installations are equipped with calling stations, with which you can call and send the lift. Call stations are located in the area of the upper and lower landing position. Each landing call station needs to be activated with a key switch before use.

  • Page 19: Driving/Moving Onto The Platform

    DELTA User Manual Edition Feb 2008 Is the platform not on the level on which you want to move onto the platform, you can call the platform by using the wall controls: Switch on the wall control by putting in and turning the key. Press the “Up” or “Down”- Button and the platform moves into the direction as long as you hold the button.

  • Page 20: Driving/Moving Onto The Platform

    DELTA User Manual Edition Feb 2008 Driving/Moving onto the platform When the unlocked barrier is opened, the Open ramp will automatically fold down. The barrier barrier down to the staircase is always and enter locked (excepting at the lower stop platform position = special customer request).

  • Page 21: Travelling

    DELTA User Manual Edition Feb 2008 Travelling The carriage control on the sidewall contents of a directional control on spiral cable, a key switch and an emergency stop. The platform contains a directional control, connected to a spiral cable, a key switch, an emergency stop and a green control lamp at the side of the platform.
  • Page 22 DELTA User Manual Edition Feb 2008 ➢ The lift automatically stops in all stop positions (upper, lower and intermediate). It also stops when colliding with an obstacle. ➢ After the lift stopped the drive button must be kept pressed until the barrier opens. If you don’t want to stop at an intermediate stop position briefly release the drive button...

  • Page 23: Leaving The Platform

    DELTA User Manual Edition Feb 2008 Leaving the platform The stairlift has been designed to stop in the correct position at each station. Lift up barrier arm and switch off the key switch ➢ Keep the directional control button pressed until the barrier has folded up and the ramp has folded down to the correct position.

  • Page 24: Troubleshooting

    DELTA User Manual Edition Feb 2008 TROUBLESHOOTING  DELT For safety reasons, the stairlift is equipped with several electrical and mechanical locking devices. The stairlift will not work if any of these devices are tripped or if the order of events is incorrect. By following the instructions provided in the ensuing paragraphs, the user will be able to determine the reason for breakdown.
  • Page 25 DELTA User Manual Edition Feb 2008 T h e la n d in g c o n tr o l h a s b e e n tu r n e d o n w ith th e k e y , th e d ir e c tio n a l c o n tr o l is p r e s s e d , b u t th e c a r r ia g e d o e s n o t m o v e .
  • Page 26 DELTA User Manual Edition Feb 2008 The carriage start travelling after pressing the directional control on the platform and stops after about 10 cm. Please close Are all barriers the barriers! closed? Check if the ramps and the safety pad (if...

  • Page 27: Rescue Of Passengers

    DELTA User Manual Edition Feb 2008 RESCUE OF PASSENGERS When the carriage stops between two stations and all instructions given on the previous page are checked, the passenger must be rescued from the carriage. It has to be distinguished between the cases where the platform stops close to the stop position or if it stops in the middle of the rail.
  • Page 28 DELTA User Manual Edition Feb 2008 Case 2: The occupied platform is not close to a stop position. For the rescue of the passenger two persons are needed! If there is only one person available, it is necessary to wind the carriage into the next station (see case 1).
  • Page 29 DELTA User Manual Edition Feb 2008 5. The wheelchair driver can now be lifted down from the platform 6. If using a manual platform, close the platform as usual. That means: First close the barriers and then fold up the...

  • Page 30: Emergency Unclamping Of Barriers

    DELTA User Manual Edition Feb 2008 Emergency unclamping of barriers: For unclamping a barrier somewhere out of a station, press the lever located at the back of the carriage. The position of this lever is shown in detail on the drawing beside.

  • Page 31: Erection

    DELTA User Manual Edition Feb 2008 ERECTION Electrical installation Only LEHNER or one of our authorised partners is allowed to carry out the electrical installation. If someone else does the electrical installation, you will lose the right to use the lift.

  • Page 32: Charges Of The Operator

    DELTA User Manual Edition Feb 2008 CHARGES OF THE OPERATOR The unit must only be activated, if a technical expert issues a result without any defects. (Exception: The local law doesn’t prescribe this)! Otherwise a safety operation is not guaranteed! It has to be noted that additional to the owner an introduced person is reachable.

  • Page 33: Maintenance

    DELTA User Manual Edition Feb 2008 MAINTENANCE It is absolutely necessary that the lift is regularly serviced. It is recommended that a service contract be made with the supplier. LEHNER or any of our authorised partners offers a special maintenance program adapted to the frequency of use.

  • Page 34: Installation And Maintenance Notes

    DELTA User Manual Edition Feb 2008 Installation and maintenance notes Installed by: ________________________________ Date: ____________ This is a maintenance list for your stairlift. This form will be filled out by your maintenance service team. Date Details Name  DELT Treppenlift...
  • Page 35 DELTA User Manual Edition Feb 2008 Date Details Name  DELT Treppenlift Seite 34 von 34...
