Summary of Contents for Lehner Lifttechnik ALPHA

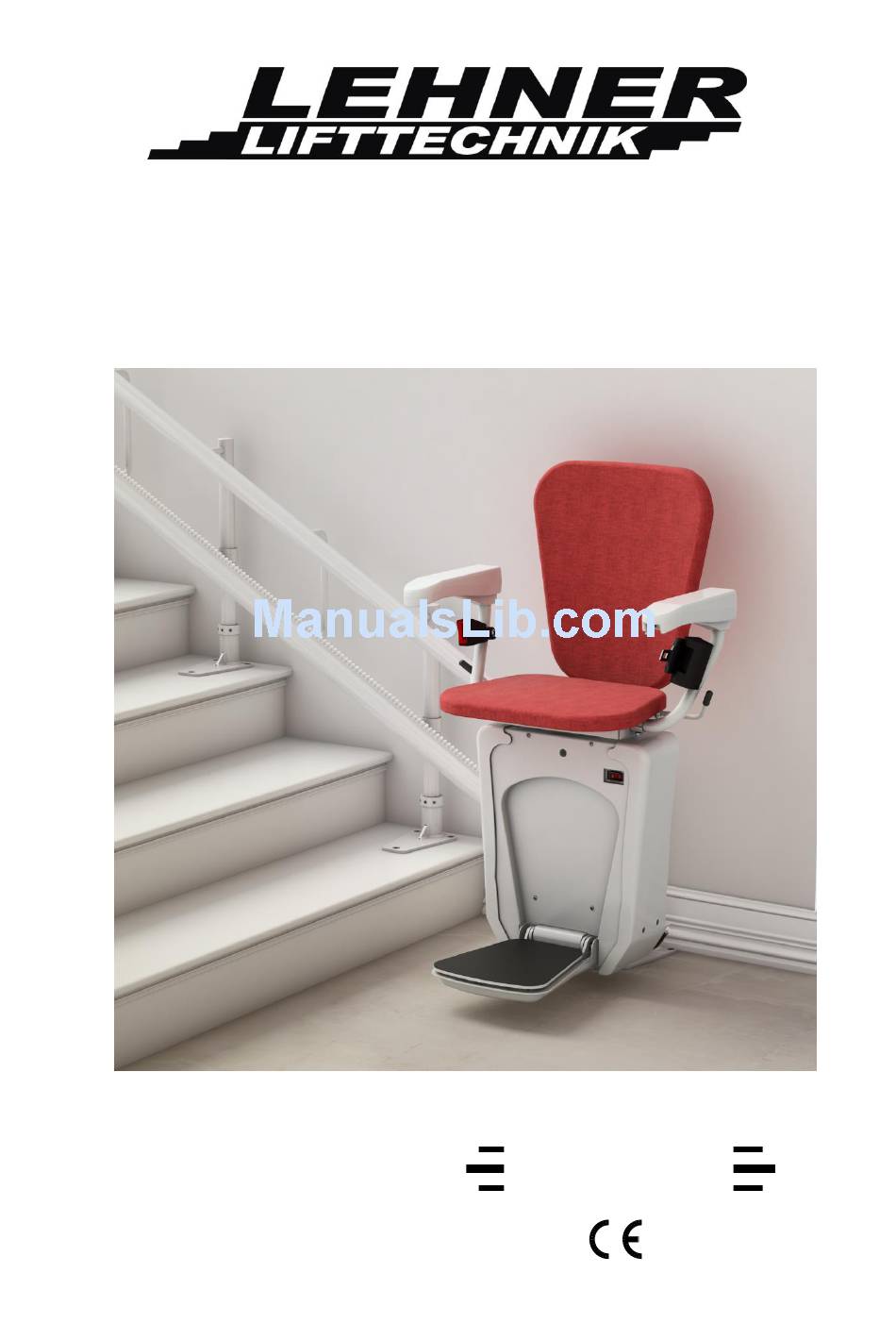

- Page 1 USER HANDBOOK ALPHA Stairlift...
-
Page 2: Table Of Contents
User manual Alpha stairlift Version Dez. 2014 Table of contents: Introduction ....................3 Installation schematic ................4 Technical parameters ................5 Seat function overview................6 Controls ...................... 7 Starting up the chairlift ................8 Sending and calling the chairlift from the hall calls ......9 Seat rotation .................... -
Page 3: Introduction
Take the following precautions: The Alpha stairlft is intended solely for transporting one person sitting on the seat. Maximum loading capacity is 160kg Use the seatbelt while driving ... -
Page 4: Installation Schematic
User manual Alpha stairlift Version Dez. 2014 Drive with self-locking gearbox and motor brake Overspeed governor Safety contact edges on the sides of the drive unit and under the footrest Folding switch for armrest A two-position key switch located at the underside of the armrest. -
Page 5: Technical Parameters
User manual Alpha stairlift Version Dez. 2014 Technical parameters Residential or commercial Applications indoor, curved stairs Load capacity 160 kg Seat size 460 x 326 mm 460 x 326 mm 0.11 m/s on straight sections Travel speed 0.06 m/s at bends Range of incline 0°... -
Page 6: Seat Function Overview
User manual Alpha stairlift Version Dez. 2014 Seat function overview Front cover Joystick in armrest Footrest Swivel lever Folding seat Side cover Backrest Footrest cover Left armrest Trolley covers Right armrest Seatbelt Main power switch Emergency handwheel Key switch in armrest Email: office@lehnerlifttechnik.at... -
Page 7: Controls
User manual Alpha stairlift Version Dez. 2014 Controls Control of the seat can be performed using the joystick direction located in the armrest or using one of the hall call remotes, located at each stop position. Drive Joystic Drive up... -
Page 8: Starting Up The Chairlift
User manual Alpha stairlift Version Dez. 2014 Starting up the chairlift Turn on key switch Make sure main power switch is on 1) When unit is parked and folded up make sure the keyswitch and main power switch are on... -
Page 9: Sending And Calling The Chairlift From The Hall Calls
User manual Alpha stairlift Version Dez. 2014 Sending and calling the chairlift from the hall calls Battery cover 1) Make sure that the seat is not in use by someone else. 2) Turn on the hall call by inserting the key and turn it to the on position. -
Page 10: Seat Rotation
User manual Alpha stairlift Version Dez. 2014 Seat rotation At the upper landing the seat can be rotated for easier entry and exit. 1) Push the lever to unlock the rotation (10) on the sides of the seat to its lowest possible position. -
Page 11: Fault Detection And Trouble Shooting
User manual Alpha stairlift Version Dez. 2014 Fault detection and trouble shooting The lift is equipped with a number of electrical and mechanical safety features. If the lift is not working check the following points: Next to the main power switch are 3 LEDs. The left and the right LED indicate the directional obstruction sensors on the drive unit and trolleys. - Page 12 User manual Alpha stairlift Version Dez. 2014 If all 3 LEDs are off and the seat does not react at all from the call station or the armrest control Check if the 3 LEDs are on. If not, the safety circuit is broken (swivel seat switch, overspeed switch, handwheel switch or ultimate stop switch) ...
-
Page 13: Emergency Drive Wheel
User manual Alpha stairlift Version Dez. 2014 Emergency drive wheel In case the chairlift stops working on the driveway the unit can be moved by turning the emergency handwheel. The handwheel has to be entered on the front of the drive unit into a hole next to the main power switch. -
Page 14: Charging The Battery
User manual Alpha stairlift Version Dez. 2014 Charging the battery The two 12V batteries that power the chairlift are charged at each landing station using the AC charger. The seat must therefore always park in one of the landing stations. -
Page 15: Maintenance Record
User manual Alpha stairlift Version Dez. 2014 Maintenance Record Email: office@lehnerlifttechnik.at page 15 of 15...
