- Page 2 Lehner Lifttechnik GmbH Salling 8 4724 Neukirchen am Walde Austria Tel.: +43 7278 3514 15 Fax.: +43 7278 3514 12 Email: office@lehnerlifttechnik.at Web: www.lehner-lifttechnik.at Have a look in the user video of the Alpha stairlift Alpha | User Manual Version 09/2022...
-
Page 3: Table Of Contents
Calling and sending the stairlift ..........................13 Rotating the seat with a manual swivel seat ...................... 14 Rotating the seat with the automatic swivel seat ..................... 15 Passing through an intermediate stop with automatic swivel seat ............. 16 Alpha | User Manual Version 07/2022... - Page 4 Fixing the rail system ............................... 25 12.2 Dismantling and disposal ............................25 CE declaration of conformity............................26 Duties of the stairlift operator ............................27 Requirements for the maintenance company......................28 Assembly and maintenance records ..........................29 Alpha | User Manual Version 07/2022...
-
Page 5: Introduction
INTRODUCTION We would like to congratulate you on the purchase of a stair lift from Lehner Lifttechnik GmbH and welcome you to our large circle of satisfied customers. For more than 30 years, our lifts have been known as reliable means of transport, which are characterised by individual adaptation to structural conditions. -
Page 6: Attention - Safety First
In case of non-observance, there is immediate increased danger, whereby personal injury or damage to property may occur. All pictures, photos and drawings used in this manual are symbolic only and may Image differ from reality. Photo Alpha | User Manual Version 09/2022 Page 2... -
Page 7: Operator Of The Stairlift
2.5 Qualified workers Installation, maintenance, repairs and checks must be carried out by qualified persons, preferably by companies authorised by Lehner Lifttechnik. 2.6 Decommissioning When the unit is taken out of service for cleaning, maintenance or repair work, it must be protected against unintentional movement. -
Page 8: Intended Use
Do not disable any safety device by making mechanical or electrical changes to the ▪ installation. Without the written consent of Lehner Lifttechnik, all types of adjustments and/or modifications to the system are prohibited The stair lift may only be used by one person at a time. Accompanying persons are ▪... -
Page 9: Use Of The Stairlift
Also, keep the keys in a safe place and do not give them to unauthorised persons. Do not leave the keys on the vehicle or at the call stations when the lift is not in use. In the user video of our Alpha stairlift we show you the correct use of your lift. -
Page 10: Technical Equipment

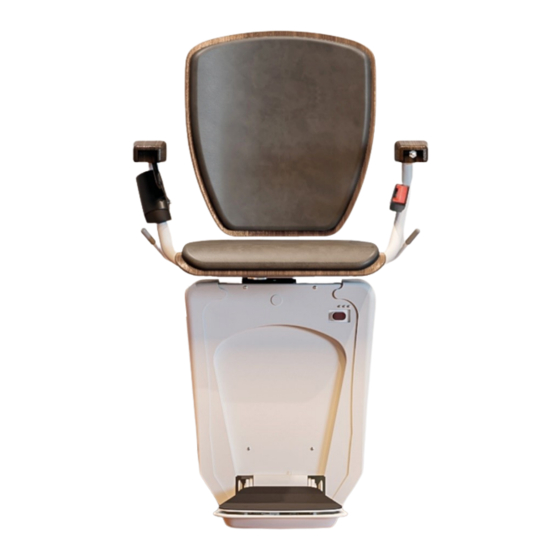

3 TECHNICAL EQUIPMENT The Alpha stairlift is designed to transport people with reduced mobility. It is driven by a rack and pinion on the bottom rail. The lift is powered by 2 x 12 V batteries which are charged at the stops (as long as the power supply unit is powered). - Page 11 Joystick in the armrest Footrest Lever for swivel seat Folding seat Side cover Backrest Contact bottom Left armrest Drive carriage cover Right armrest Seat belt Main power switch Emergency handwheel Key switch in armrest Alpha | User Manual Version 09/2022 Page 7...
-
Page 12: Technical Specifications
Volume < 60 dB (A) Certificates TÜV according to EN 81-40 In some situations, it may be necessary to make a special adjustment to the stairlift, which may alter the above specifications. Alpha | User Manual Version 09/2022 Page 8... -
Page 13: Safety Devices
4 SAFETY DEVICES The Alpha stairlift is equipped with the following safety features: Armrests The armrests, which must be closed (horizontal) or folded up while driving empty, prevent falling from the chair and act as support for getting in and out of the chair in the landings. -
Page 14: Battery Charging System
4.8 Battery charging system The drive motor of your Alpha stairlift is powered by batteries which are charged via a charger. Charging takes place at each stop via charging contacts. When the stairlift is not in use, it is therefore necessary to always park the stairlift in the landing. -
Page 15: Operating Elements
Green flashing Radio transmitter has been successfully registered with the receiver Orange flashing Radio connection interrupted Red flashing The battery of the radio transmitter is weak and should be replaced. Alpha | User Manual Version 09/2022 Page 11... -
Page 16: Opertation Of The Lift
6 OPERTATION OF THE LIFT The Alpha stairlift is safe and easy to use. The operation is designed for a user with walking difficulties. Before moving the lift, make sure that nobody is endangered by the movement of the platform. If a dangerous situation arises while the platform is moving, stop the platform... -
Page 17: Automatic Footrest Function
Call stations are supplied with 2 x 1.5V AAA batteries. The service life of the batteries is approx. 1 year. The batteries can be replaced during the annual maintenance. If the green LED light stops flashing when the buttons are pressed, the batteries must be changed. Alpha | User Manual Version 09/2022 Page 13... -
Page 18: Rotating The Seat With A Manual Swivel Seat
Always make sure that the lever is in locked position (pulled downwards) after swivelling, especially when the lift is parked. Alpha | User Manual Version 09/2022 Page 14... -
Page 19: Rotating The Seat With The Automatic Swivel Seat
In the case of an automatic swivel seat, the call stations are equipped with 2 additional buttons that allow the seat to be swivelled automatically on an intermediate or the upper landing. LED lamp Drive upwards Drive downwards Turn seat (for entry/exit) Turn seat (for driving) Alpha | User Manual Version 09/2022 Page 15... -
Page 20: Passing Through An Intermediate Stop With Automatic Swivel Seat
The ride down to the lower stop works with the operation for the lift, to do this, keep the "Ride down" button pressed. Alpha | User Manual Version 09/2022 Page 16... -
Page 21: Emergency Release Of The Folding Rail
ATTENTION: The drive is now no longer connected to the rail and will fall down immediately! After the bolt has been removed, the folding rail can be opened and closed manually. To leave it in the folded position, bring the retaining (holding) bolt into the correct position. Alpha | User Manual Version 09/2022 Page 17... -
Page 22: Malfunction And Troubleshooting
The direction-dependent safety contacts consist of the following switches (left/right): ▪ Upper carriage S13/S12 ▪ Lower carriage S27/S28 ▪ Side switches on drive unit SK-1/SK-2 ▪ Footrest (lateral) EK-R/EK-L ▪ Footrest and under the driving unit (pressure sensitive when driving downwards) Alpha | User Manual Version 09/2022 Page 18... - Page 23 LED 6 is off: ▪ Check that the charging pin has contact with the copper on the charging cam. ▪ Check that the charger is connected and that no fuse has blown. Alpha | User Manual Version 09/2022 Page 19...
-
Page 24: Movement Of The Lift With Emergency Handwheel
Handwheel Main switch As long as the handwheel is inserted, the safety circuit is cut and the lift cannot operate! Remove the handwheel before restarting the lift. Alpha | User Manual Version 09/2022 Page 20... -
Page 25: Control And Maintenance
The floor should be wiped with a damp dust rag. Avoid wetness, especially with the operating elements (no splashing water)! ▪ Further maintenance work may only be carried out by employees of the manufacturer or its ▪ authorised partner companies ! Alpha | User Manual Version 09/2022 Page 21... -
Page 26: Maintenance / Inspection
11.2.2 Mechanics of the swivel seat, footrest and armrests Remove the covers and check all mechanical parts (swivel seat, footrest and armrest) for ▪ ease of movement. If necessary, apply a thin film of lubricant sparingly. Alpha | User Manual Version 09/2022 Page 22... -
Page 27: Contact Base And Contact-Sensitive Covers
Check all mechanical switches (position switches, limit switches in the stops, emergency limit ▪ switches up and down, catch switches, etc...) for their function and sufficient play of the rollers. Check all fastening and actuating elements of the forced switches for secure hold. ▪ Alpha | User Manual Version 09/2022 Page 23... -
Page 28: Gearbox And Drive Motor
11.3.2 Spare parts Only original spare parts from Lehner Lifttechnik may be used, as this is the only way to guarantee safety and functionality. If other products are used, the declaration of conformity loses its validity. Alpha | User Manual... -
Page 29: Installation And Commissioning
For more detailed information on installation, please refer to the installation instructions. If you have any problems or questions, contact your Lehner Lifttechnik partner or customer service immediately. Installation work on the entire system may only be carried out by the manufacturer or its authorised partner companies. -
Page 30: Ce Declaration Of Conformity
The technical documents managed: Lehner Lifttechnik GmbH Salling 8 4724 Neukirchen am Walde, Austria This declaration becomes invalid if the machine is modified or altered or if the provisions of the "Alpha - User Manual" are not observed. Lehner Christian Neukirchen am Walde, Managing Director 13.09.2022... -
Page 31: Duties Of The Stairlift Operator
Irregularities during operation or emergency situations must be reported immediately to the maintenance company. In addition, the maintenance company must be informed of all changes to the building and the system that could affect operation. Alpha | User Manual Version 09/2022 Page 27... -
Page 32: Requirements For The Maintenance Company
The maintenance company must have appropriate and sufficient insurance cover. ▪ The maintenance company must record every intervention that occurred due to a fault. ▪ Alpha | User Manual Version 09/2022 Page 28... -
Page 33: Assembly And Maintenance Records
16 ASSEMBLY AND MAINTENANCE RECORDS Assembled by: __________________________________________________________ Date: __________________________________________________________________ This is the maintenance record sheet for your stairlift. This form will be filled in by your maintenance specialist during a service. Date Details Name Alpha | User Manual Version 09/2022 Page 29... - Page 34 Date Details Name Alpha | User Manual Version 09/2022 Page 30...
