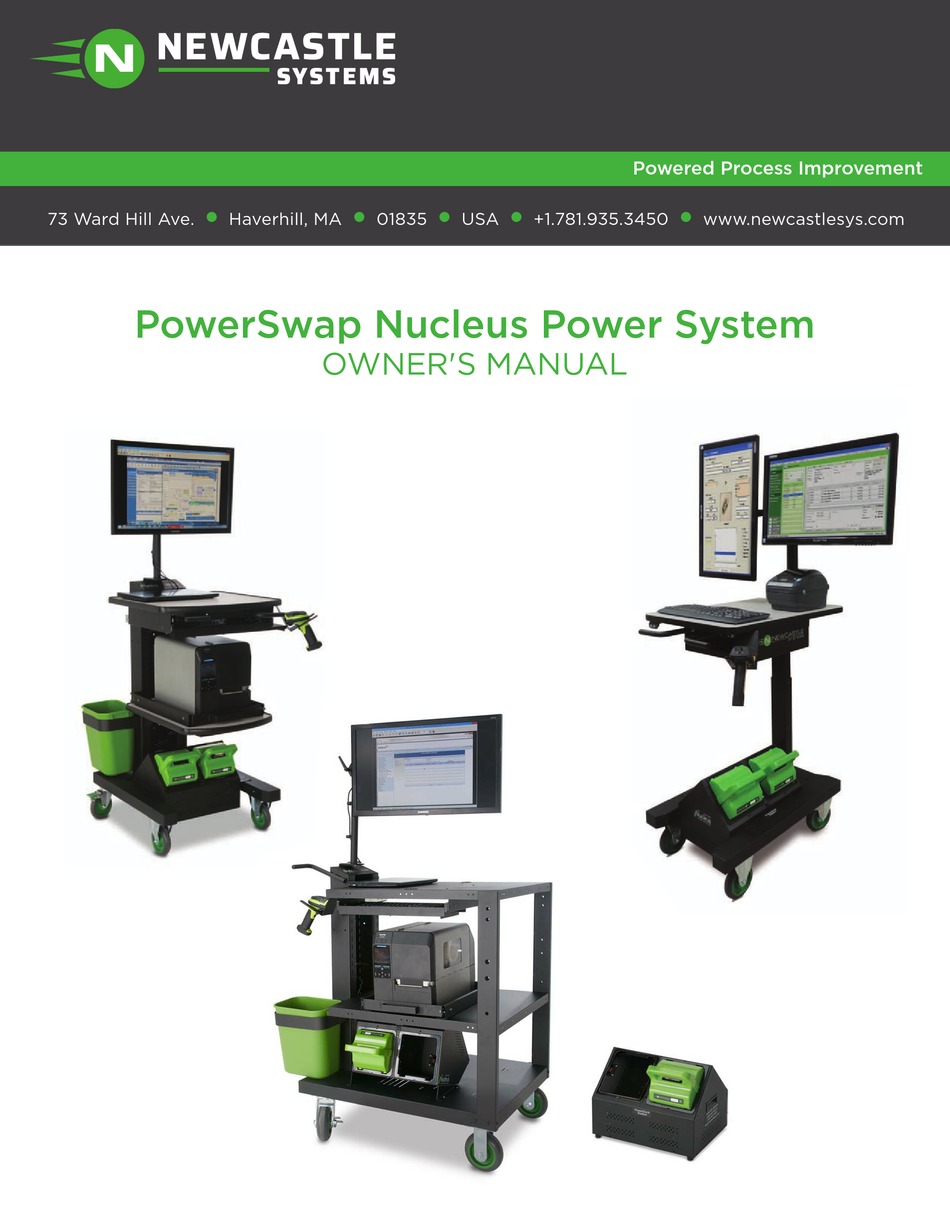

- Page 1 Powered Process Improvement 73 Ward Hill Ave. Haverhill, MA 01835 +1.781.935.3450 www.newcastlesys.com PowerSwap Nucleus Power System OWner'S MAnUAl...
- Page 2 PowerSwap Nucleus Power System Owner's Manual Document number: PowerSwap_nucleus_00_e revision Date: September 26, 2019 release Date: January, 2019 TeCHnICAl SUPPOrT +1 (781) 935.3450 eXT. 3...
- Page 3 COPYRIGHT All copyrights to this document are owned by newcastle Systems, Inc. no part of the contents of this document may be reproduced or transmitted in any form or by any means without the prior written con- sent of newcastle Systems, Inc.
-
Page 4: Table Of Contents
Table of Contents Important read and Understand this Manual Before Operation! ............v System Components Cart Configurations ..........................1 PowerDock Station, PowerCharge Station and Battery ............2 Operating Guidelines Storage and Disposal ......................... 3 PowerDock Operating Instructions ....................3 PowerCharge Operating Instructions ..................4 Fuel Gauge ............................. -
Page 5: Read And Understand This Manual Before Operation
Special precautions and handling instructions are contained in this manual and should be strictly adhered to for safe and reliable operation. Contact newcastle Systems, Inc. Customer Service at +1 (781) 935- 3450 or customerservice@newcastlesys.com with any questions regarding this product. -
Page 6: System Components

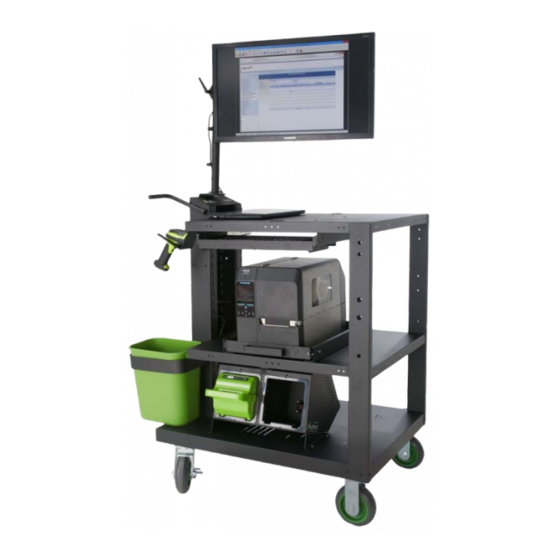

System Components Cart Configurations PowerDock Station will be mounted to your selected cart configuration as shown below. NB Series Cart NB Series SLIM Cart PC Series Cart Apex Series Cart & Atlas Series Cart PowerSwap Nucleus Power System Owner's Manual |... -
Page 7: Powerdock Station, Powercharge Station And Battery
PowerDock Station, PowerCharge Station and Battery PowerDock Station, PowerCharge Station and Battery 1. PowerDock Station (PWD2, PWD2-TSW or PWD2i): This will be installed on your newcastle cart. See “Cart Configurations” on page 1 to view your cart configuration. 2. PowerCharge Station (PWC2 or PWC2-FC): This is used to charge lithium batteries. 3. -
Page 8: Operating Guidelines
Storage and Disposal Operating Guidelines Storage and Disposal Storage Instructions: • DO nOT SHOrT TerMInAlS. • This battery should be stored in a cool, dry, and well-ventilated area. Sustained elevated tempera- tures are the primary reason for premature failure of batteries. Charge batteries at room tempera- ture. -
Page 9: Powercharge Operating Instructions
PowerCharge Operating Instructions PowerCharge Operating Instructions Step 1: Place 1 or 2 discharged batteries in PowerCharge Station. Make sure you hear a click as the bat- tery engages. *Batteries should be inserted firmly, but never slammed into place. Step 2: Turn unit On (“|” position as shown). On/OFF switch is located at rear of unit as shown below Note: Charger will draw 2.8 A max (5.6 A max. -
Page 10: Fuel Gauge
Fuel Gauge Fuel Gauge The following graphics illustrate the amount of battery power and corresponding leD lighting sequence. Illustration of Fuel Gauge LEDs Battery Fuel 81-100% 61-80% 41-60% 21-40% 1 solid 11-20% 1 flashing 1-10% PowerSwap Nucleus Power System Owner's Manual |... -
Page 11: Preventative Maintenance
Maintenance Preventative Maintenance Damaged connectors, contacts and cables may present hazards, resulting in inefficient battery and char- ger operation. To avoid these problems, conduct the following maintenance checks at least once annu- ally. If you see any of the following problems, take corrective action immediately. Maintenance When engaged and disengaged, the contact surfaces of nucleus connectors “over wipe,”... -
Page 12: Service/Warnings
In the event the nucleus battery fails to deliver acceptable performance, it must be returned to newcastle Systems, Inc. no other facility is qualified and equipped to service the nucleus battery and calibrate the electronic components and sensors. Any attempt by the user or any other unauthorized persons may result in improper calibration of the electronic components causing severe battery damage and/or safety hazards, including potential personal injury and/or damage to property. -
Page 13: Warnings/Precautions
Warnings/Precautions Warnings/Precautions 3. To reduce risk of electric shock, unplug the DC input (battery) before attempting any mainte- nance or cleaning. 4. To reduce risk of damage to electric plug and WARNING! cord, pull by plug rather than cord when discon- necting anything from the unit. - Page 14 This equipment has been approved by one or more agencies. All changes and/or modifications not expressly approved by newcastle Systems, Inc. could void the users’ warranty and authority to operate this equipment. There are no serviceable parts in this equipment.
-
Page 15: Specifications
Battery Specifications Specifications Battery Specifications 12.8 V nominal Output Voltage 10.0 V - 14.6 V Operating Capacity 36 Ah Chemistry lithium Iron Phosphate (liFePO Maximum Discharge Rate 12.0 A per battery Cut-off Charge Current 2000 mA 2 Batteries 1 Battery 40 hrs @ 18W 20 hrs... -
Page 16: Operating, Transportation, And Storage Environment
Operating, Transportation, and Storage environment Operating, Transportation, and Storage Environment Temperature Range 32 to 104 F (0 to 40 Relative Humidity 20-70% non-condensing Pressure 985 hPa to 1040 hPa Device intended for indoor use only. never use flammable or combustible solvents around batteries or chargers. PowerDock Specifications PWD2 PWD2-TSW... -
Page 17: Air Transportation Regulation
Since the interpretation and application of regulations may vary with the aviation company, the transport of the nucleus battery may be disallowed even when the condition described above are satisfied. newcastle Systems, Inc. therefore strongly recommends that you consult with your transportation company prior to transporting the battery pack. - Page 18 73 Ward Hill Ave. Haverhill, MA 01835 +1.781.935.3450 www.newcastlesys.com...
