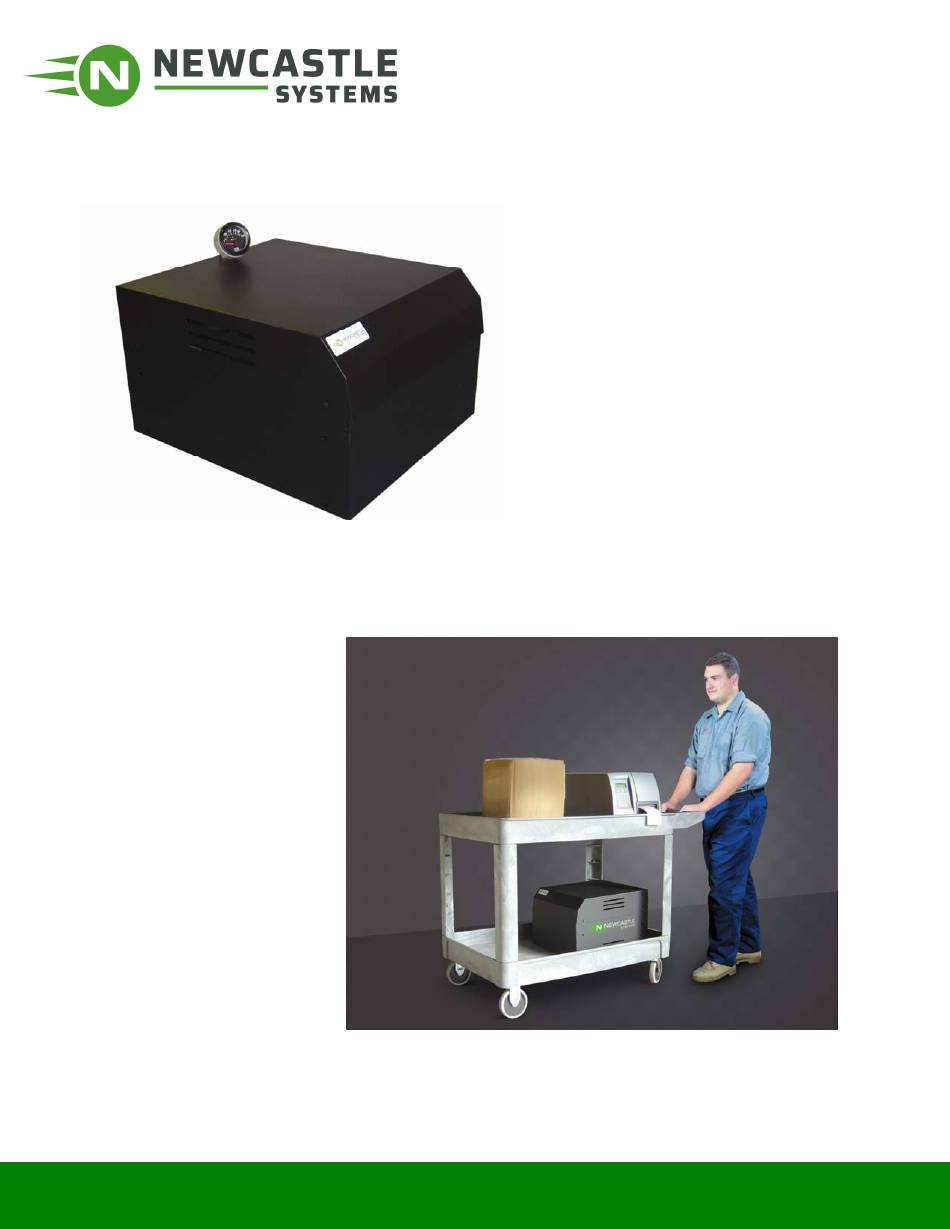

- Page 1 PP Series Power Package Assembly Manual 34 South Hunt Rd. Amesbury, MA ● ● 01913 ● ● 781.935.3450 ● www.newcastlesys.com...
- Page 2 PP Series Cabinet Assembly Drawings ITEM # QTY. DESCRIPTION Battery Box Cover Battery Box Bottom Battery Box Stop Angle Rivet, .143D X .267L Pem Nut, #10-32 Screw, 10-32 X 1/2"...
-
Page 3: Battery Set-Up
1 Battery Set-Up (for 350 watt inverter & separate charger) Feed cord from power strip in mast through middle opening and plug into inverter Volt Meter Inverter Red cord will plug into back of charger and feed out through the far right opening;... - Page 4 1 Battery Set-Up For Stand Alone Power Pack & Mobile Powered Cart Ground Wire Inverter Fuse Block Battery (+) on Inverter to Rear Fuse Block: 11” Long 2 AWG, 5/16 Ring Both, Red Wire (-) on Inverter to (-) on Battery: 16” Long 2 AWG, 5/16 Ring Both, Black Wire (+) on Battery to Front Fuse Block: 16”...
- Page 5 2 Battery Set-Up For Power Pack and NB Series Mobile Cart Ground Wire Inverter Fuse Block Fuse Block Battery #2 Battery #1 (+) on Inverter to Rear Fuse Block: 11” Long 2 AWG, 5/16 Ring Both, Red Wire (-) on Inverter to (-) on Battery #1: 16” Long 2 AWG, 5/16 Ring Both, Black Wire (+) on Battery #1 to Front Fuse Block: 16”...
- Page 6 The charger will not work if voltage in battery is below 11 volts. Tools required: 1/8 Allen wrench, preferably one with a long handle. Thanks you for choosing Newcastle Systems to meet your mobile equipment requirements. Please call us at 781-935.3450 or email us at sales@newcastlesys.com...
- Page 7 Tips to Extend Battery Life 1. Charge the battery before using it to ensure it is fully charged. 2. Monitor the battery status meter on the cart. as this will shorten Batteries SHOULD NOT be discharged below 11.5 volts the life of the battery. Batteries SHOULD NOT be stored in a discharged state for more than 1 They should be charged as soon as possible after each use or 2 days.
