Summary of Contents for Newcastle Systems NB Series

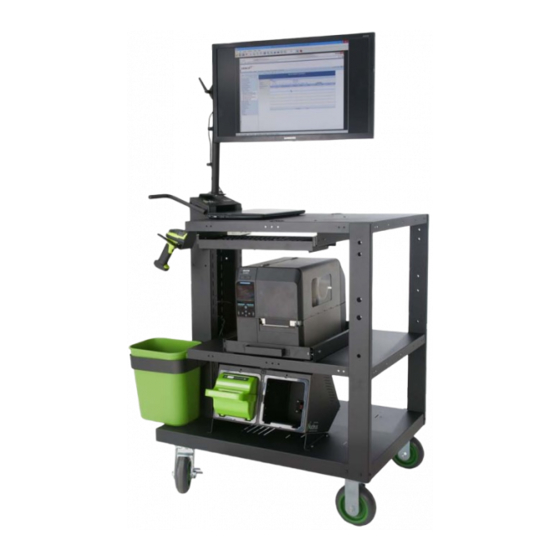

- Page 1 NB Series 380 NB 380 Assembly Manual rn more newcastlesys.com/nbseries...
- Page 2 NB380 Assembly Manual Note: some accessories may be placed in the power cabinet or green trash can for shipping purposes. 781 935 3450 UESTIONS : 10 18 2016 Pg. 1...
- Page 3 NB380 Assembly Manual 781 935 3450 UESTIONS : 10 18 2016 Pg. 2...
- Page 4 NB380 Assembly Manual For the first battery connection, there are Remove battery & hardware (includes (2) bolts, (4) wires (shown above) to be connected to from (2) nuts, (4) flat washers and (2) lock washers) the positive (red) terminal on battery cardboard box Black/red inverter cable /...
- Page 5 NB380 Assembly Manual Retrieve nut, lock washer and flat washer (as Pull rubber boot over tightened terminal shown above) (as shown above) Place flat washer, lock washer, then nut onto For negative battery connection, place the bolt and tighten with ½” wrenches 3 remaining black wires onto bolt as shown 781 935 3450 UESTIONS...
- Page 6 NB380 Assembly Manual Insert bolt through negative (black) battery terminal (as shown below) NOTE: Sparking is normal for the first connection. Retrieve nut, lock washer and flat washer (as shown below) Make sure all fittings are tight and battery is strapped down in the cabinet. Place flat washer, lock washer, then nut Turn inverter on as shown above.
- Page 7 NB380 Assembly Manual Operating Tips: 1. Charge your battery before using it to ensure it is fully charged. Simply plug the charger cord (located on side of unit) into a standard wall unit. 2. Monitor the battery status meter on the cart (shown below) Turn powerstrip on.
- Page 8 NB380 Assembly Manual 6. Do not use the cart when charging the unit. Turn off the power strip, then plug the cart into a wall outlet. 7. Cart’s charging system is a trickle charger; leaving it plugged in will NOT damage the battery. 8.
