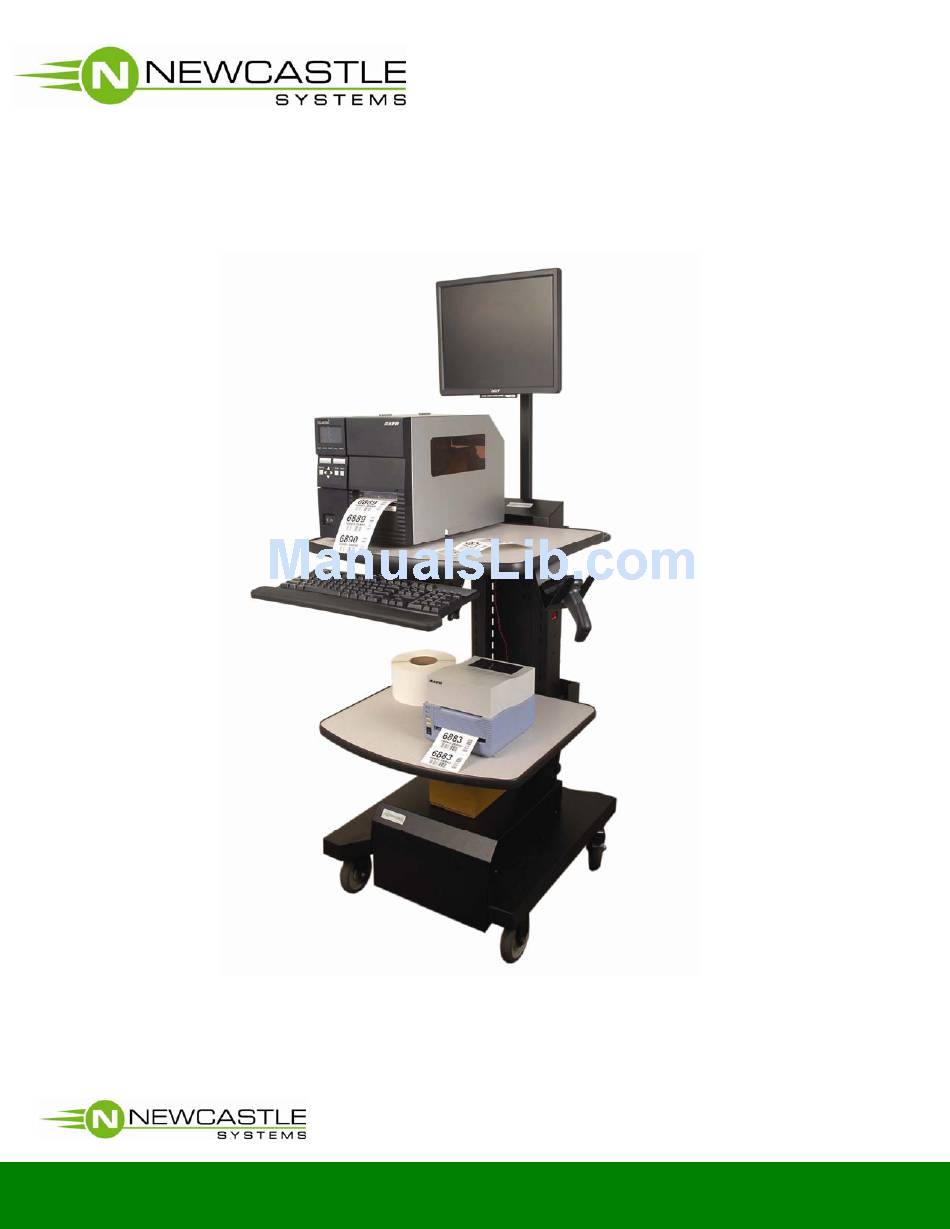

- Page 1 NB Series Assembly Manual 15B Sylvan St. Middleton, MA ● ● 01949 ● ● 781.935.3450 ● www.newcastlesys.com...
- Page 2 NB Series Workstation Assembly Drawings ITEM NO. QTY. DESCRIPTION 24” x 26” Base Assembly Vertical Support Mast 3/8-16 Hex Nut & Washer Base Trim Plate (for non-powered version) 24” x 22” Work Surface Assembly Standard Push Handle Screw, Btn HD 3/8-16 x 3/4”...
-
Page 3: Optional Accessories
Screw, #10 x ¾” Phil, Washer Head Optional Accessories Newcastle Systems’ line of accessories can be integrated with any product series in seconds to create a highly functional mobile workstation that is customized to your specific application. For more information or additional accessories, call us at 781.935.3450 or visit www.newcastlesys.com... - Page 5 B259 Voltage Meter for 375 Watt Inverter Connection Instructions Connect (1) Red (+) and (4) Green to Battery Positive Terminal (+) Connect (2) Black to Battery Negative Terminal (-)
-
Page 6: Battery Set-Up
1 Battery Set-Up For NB Series Mobile Powered Cart Ground Wire Inverter Fuse Block Battery (+) on Inverter to Rear Fuse Block: 11” Long 2 AWG, 5/16 Ring Both, Red Wire (-) on Inverter to (-) on Battery: 16” Long 2 AWG, 5/16 Ring Both, Black Wire (+) on Battery to Front Fuse Block: 16”... - Page 7 2 Battery Set-Up For NB Series Powered Workstations Ground Wire Inverter Fuse Block Fuse Block Battery #2 Battery #1 (+) on Inverter to Rear Fuse Block: 11” Long 2 AWG, 5/16 Ring Both, Red Wire (-) on Inverter to (-) on Battery #1: 16” Long 2 AWG, 5/16 Ring Both, Black Wire (+) on Battery #1 to Front Fuse Block: 16”...
- Page 8 Assembly Instructions for NB Series Workstation Tools Required: 7/32, 1/8” long handled Allen wrench, 9/16” or 15MM deep socketed bit, power tool with Phillips head screw driver bit, adjustable wrench. Step 1. Match the threaded screws in the bottom of the mast to the holes in the cart base. The open section in the mast should face the front of the cart.
- Page 9 **For inverter, face cables to the back of the adjustable CPU base** Thank you for choosing Newcastle Systems to meet your mobile equipment requirements. Please call us at 781-935-3450 or email us at sales@newcastlesys.com if you have any questions or...
- Page 10 Tips to Extend Battery Life 1. Charge the battery before using it to ensure it is fully charged. 2. Monitor the battery status meter on the cart. as this will shorten Batteries SHOULD NOT be discharged below 11.5 volts the life of the battery. Batteries SHOULD NOT be stored in a discharged state for more than 1 They should be charged as soon as possible after each use or 2 days.
