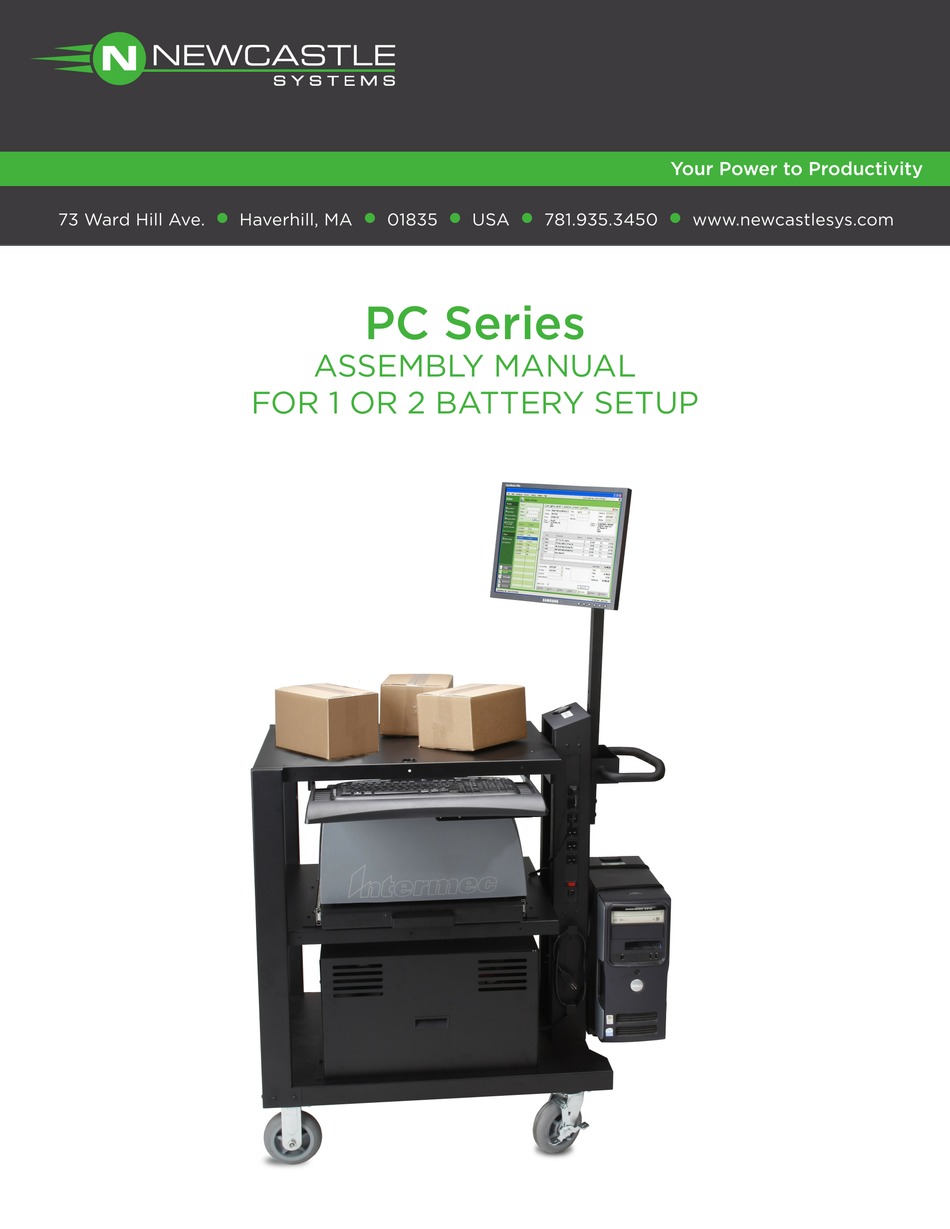

- Page 1 Your Power to Productivity 73 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 www.newcastlesys.com PC Series ASSEMBLY MANUAL FOR 1 OR 2 BATTERY SETUP...
- Page 2 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Standard Contents: - Cart (Assembled) - Battery & Hardware - Wastebasket and Bracket & Hardware Optional second shelf and optional keyboard tray shown in picture above. If second shelf was purchased, remove it to gain access to battery box (Allen wrench required).
- Page 3 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Remove front battery panel by loosening the thumb screws. Carefully lift the battery box and make sure cables stay positioned through the plastic wire grommet. Place battery box on its side as shown below.
- Page 4 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger One Battery Set-Up (Skip to Page 6 for 2-Battery systems) Place Battery here Remove battery and hardware from packaging. Wire A (red) comes pre- connected from remote battery meter to fuse block.
- Page 5 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger One Battery Set-up cont. Wire A (red) comes pre- connected from remote battery meter to fuse block. Wire B (black) connects remote battery meter to black negative (-) battery terminal.
- Page 6 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger One Battery Set-up cont. Wire A (red) comes pre- connected from remote battery meter to fuse block. Wire B (black) connects remote battery meter to black negative (-) battery terminal.
- Page 7 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Two Battery Set-up (proceed to page 10 if only 1 battery set-up) Place Battery Place Battery #1 here #2 here Remove batteries and hardware from packaging. Wire A (red) comes pre-connected...
- Page 8 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Two Battery Set-up cont. Wire A (red) comes pre-connected from remote battery meter to fuse block. Wire B (black) connects remote battery meter to black negative (-) terminal of Battery #1.
- Page 9 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Two Battery Set-up cont. Wire A (red) comes pre-connected from remote battery meter to fuse block. Wire B (black) connects remote battery meter to black negative (-) terminal of Battery #1.
- Page 10 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Two Battery Set-up cont. Positive Connection, Battery 2: Take bolt and place flat washer, large red wire Negative Connection, Battery 2: Take bolt and (F) onto bolt (as shown above); insert bolt place flat washer and black connector wire (D2) onto through positive (+) battery terminal;...
- Page 11 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger 2-Battery Configuration Plug the power strip into the Fully Connected inverter/charger. Make sure all fittings are tight and that the batteries Run charger cord through cable opening are strapped down.
- Page 12 PC Series 1 & 2 Battery Systems with 1000W Inverter/Charger Testing the Battery Function Turn the unit on by pressing the green power button. Turn the power strip on. The switch should light red. Place the front battery panel as shown above.
-
