Status Indicators

Status Indicators
This section explains the status indicators of the radio.

Status Icons

The liquid crystal display (LCD) of your radio shows the radio status, text entries, and menu entries.

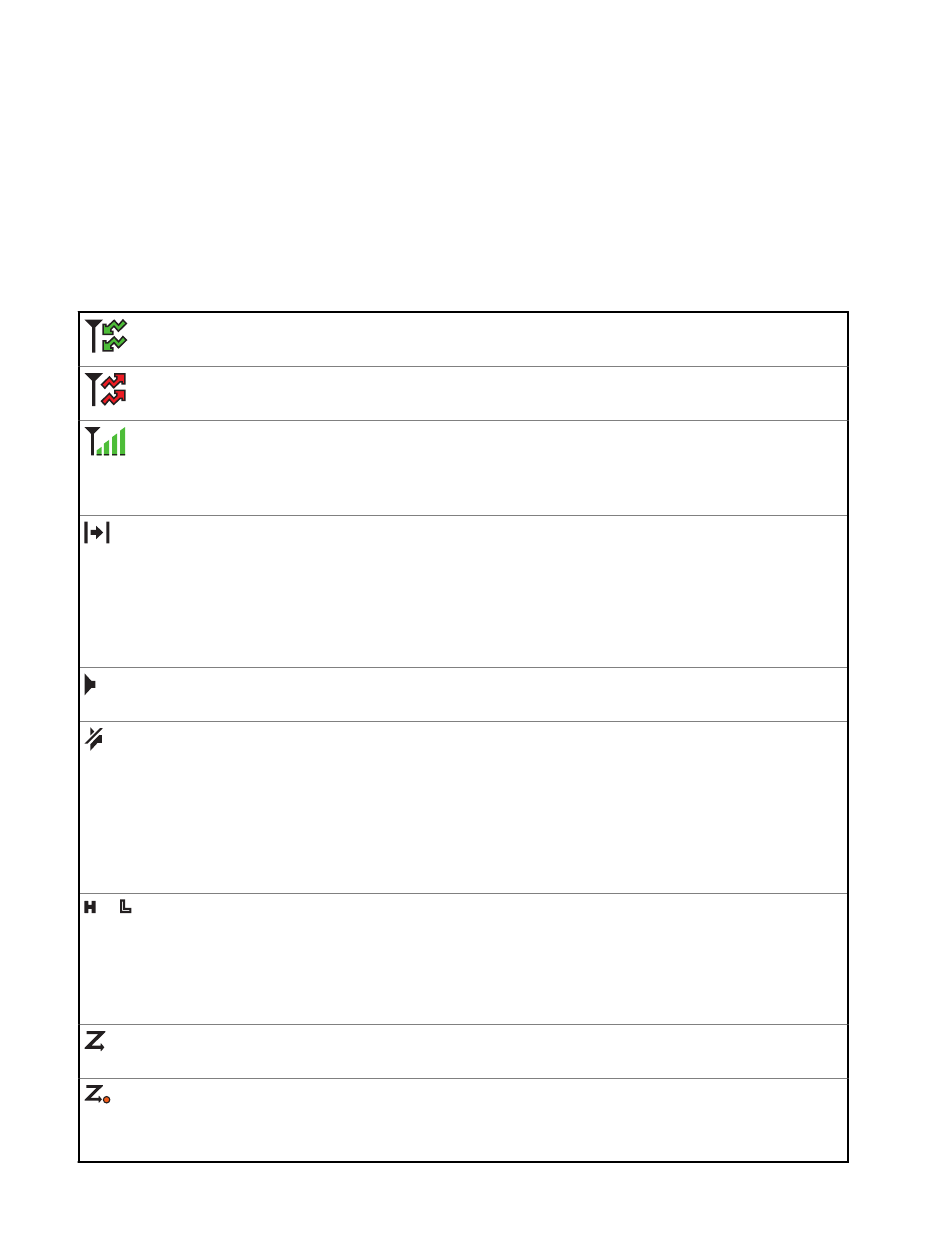

The following are the icons that appear on the display of the radio.
Receiving
Transmitting
Received Signal Strength Indicator (RSSI)
Direct
On
Off
Monitor (Carrier Squelch)
In-Call User Alert
On
Off
or Power Level
L
H
Scan
Priority Channel Scan
Blinking dot
32
Radio is receiving a call or data.
Radio is transmitting a call or data.
The number of bars displayed represents the received signal strength for
the current site (trunking only) The more stripes in the icon, the stronger
the signal.
Radio is currently configured for direct radio-to-radio communication (dur-
ing conventional operation only).
Radio is connected with other radios through a repeater.
Selected channel is being monitored (during conventional operation only).
The feature is enabled. Voice muting of the affiliated trunking talkgroup or
selected conventional channel is activated.
The feature is disabled. Voice muting of the affiliated trunking talkgroup or
selected conventional channel is deactivated.
Radio is set at Low power.
Radio is set at High power.
Radio is scanning a scan list.
Radio detects activity on channel designated as Priority-One.
