Fire Sense LIP-09A-TGG Manual

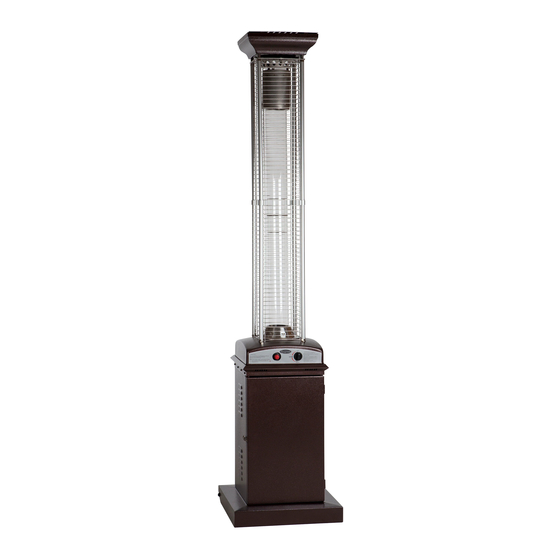

Outdoor patio heater with infrared burner
Hide thumbs Also See for LIP-09A-TGG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Comfort, Quality & Style Since 1998
Outdoor Patio Heater with Infrared Burner
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877 Monday – Friday 9 a.m. – 6 p.m., EST, email us
at cservice@welltraveled.net, or go online and live chat at www.wtliving.com.
DANGER
FOR YOUR SAFETY: If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
DANGER
Failure to comply with the precautions and
instructions provided with this heater can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons who can
understand and follow the instructions should
use or service this heater.
WARNING
This product can expose you to chemicals including
Carbon Monoxide, Lead, Chromium (hexavalent
compounds), Di(2-ethylhexyl) phthalate (DEHP) and
Diisononyl phthalate (DINP), which are known to the
State of California to cause cancer and birth defects
or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Item #:
62224 | Model # LIP-09A-TGG
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP cylinder not connected for
use shall not be stored in the vicinity of this or
any other appliance.
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR OUTDOOR USE ONLY!
ATTACH YOUR RECEIPT
Keep a copy of your proof of
purchase or order confirmation
which will be required if you need
to contact us about warranty
coverage.
Serial No.
Purchase Date
WARNING
WARNING
WARNING
Manual updated Apr 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIP-09A-TGG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fire Sense LIP-09A-TGG

Summary of Contents for Fire Sense LIP-09A-TGG

  • Page 1 Comfort, Quality & Style Since 1998 Outdoor Patio Heater with Infrared Burner Item #: 62224 | Model # LIP-09A-TGG DANGER WARNING FOR YOUR SAFETY: If you smell gas: Do not store or use gasoline or other flammable 1. Shut off gas to the appliance.

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN TABlE OF CONTENTS Before You Begin Page 2 Safety Information Page 3-4 Package Contents Page 4 Hardware Contents Page 4 Assembly Page 5-8 Operating Instructions Page 9-12 Care and Maintenance Page 13 Troubleshooting Page 14 Warranty Information Page 15 BEFORE YOU BEGIN Please read and understand this entire manual before attempting to assemble, operate or install this appliance.

  • Page 3: Safety Information

    SAFETY INFORMATION DANGER DANGER CAUTION CAUTION indicates an imminently EXPLOSION—FIRE HAZARD CARBON MONOXIDE HAZARD hazardous situation which, if not avoided, • Keep solid combustibles, such as building • This heater is a combustion appliance. may result in minor or moderate personal materials, paper, or cardboard All combustion appliances produce carbon injury, or property damage.

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Top Cap Reflector Emitter Upper Supports Lower Supports Mesh Guards Glass Tube Connector Glass Tube Burner Tank Housing/Base Regulator/Hose Assembly Cylinder Holder HARDWARE CONTENTS M8 Nut M8 Spacer M6x12 Bolt Qty: 4 Qty: 4 Qty: 3 Mesh Guard Connectors Qty: 4...
  • Page 5 ASSEMBlY PREPARATION Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on page 4 of this manual. If any part is missing or damaged, do not attempt to assemble this product.
  • Page 6 ASSEMBlY Fit the Emitter down over the threaded end of the assembled Supports by aligning the holes in the corners of the Emitter with the Supports and sliding the Emitter down over the Supports. Secure Emitter to Supports using 4 Spacers Tighten with an open-end wrench.

  • Page 7: Assembly

    ASSEMBLY Place Top Cap into Reflector Assemble Glass Tube . Locate Glass Tube Connector and both pieces of Glass Tube. Insert one end of Glass Tube Connector into open end of one Glass Tube and then repeat with other Glass Tube. Carefully insert Glass Tube into bottom of Emitter and then into hole on top of the Tank Housing/Base...
  • Page 8 ASSEMBlY Attach Mesh Guards to Supports . (HINT: It is best to begin with bottom pieces of Mesh Guards.) Locate one Mesh Guard. Slide the Mesh Guard Connectors up the Support and hold them in the center of the Support. Insert the longer tabs at the bottom of the Mesh Guard into the holes on Tank Housing/Base.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS A minimum supply pressure of .5 psi is required for the purpose of input adjustment of propane gas. Storage of an appliance indoors is permissible • Do not store a spare LP-gas only if the cylinder is disconnected and removed from the appliance. A cylinder cylinder under or near this must be stored outdoors in a well-ventilated area out of the reach of children.
  • Page 10 OPERATING INSTRUCTIONS lEAK TEST BEFORE TURNING GAS SUPPlY ON: WARNING 1. Make 2-3 oz. of leak test solution 1. Your heater was designed and • Perform all leak tests outdoors. (one part liquid dish washing approved for OUTDOOR use • Extinguish all open flames. only.
  • Page 11 OPERATING INSTRUCTIONS lIGHTING WHEN HEATER IS ON: NOTE: For initial start or after any cylinder change, hold the control knob in for 2 Emitter screen will become bright minutes to purge air from all gas lines before proceeding. red due to intense heat. The color NOTE: This heater has an Electronic Ignition and requires installation of 1 - AAA is more visible at night.
  • Page 12 Operating Instructions OPERATION CHECKlIST: For a safe and pleasant heating experience, perform this check before each use: BEFORE OPERATION: AFTER OPERATION: I am familiar with entire owner’s manual and understand all o Gas control knob is in precautions noted. OFF position. All components are properly assembled, intact and operable.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: KEEP EXTERIOR SURFACES ClEAN. STORAGE: 1. Use soapy water for cleaning. Never use flammable or corrosive Between uses: cleaning agents.

  • Page 14: Troubleshooting

    TROUBlESHOOTING PROBlEM POSSIBlE CAUSE CORRECTIVE ACTION Gas valve may be off Turn gas valve ON Fuel tank may be empty Refill LPG tank Orifice blocked Clean or replace orifice Purge air from lines. Open gas lines and depress control Air in supply system knob for 2-3 minutes.

  • Page 15: Warranty Information

    THE PURCHASER. EXTEND YOUR WARRANTY When you purchase a Fire Sense, Patio Sense, or Avalon Home product, you have the peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you write a review of your purchase on www.wtliving.com within 365 days of purchase.
