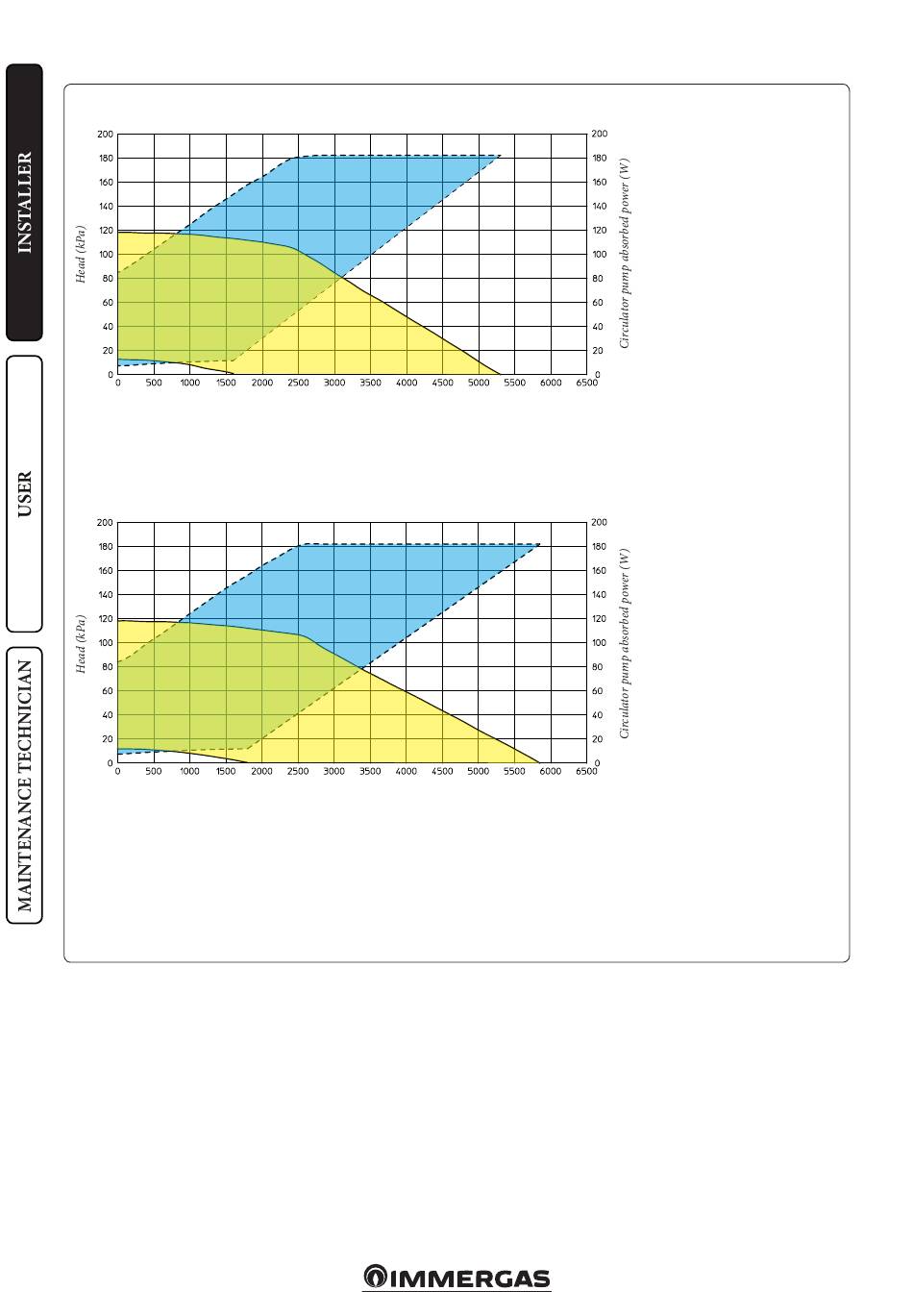

Head available to the system.
Victrix PRO 100 2 ErP
Victrix PRO 120 2 ErP
Key:
A = Available head
B = Power absorbed by the circulator pump (dotted area)
B
A
Flow rate (l/h)
B
A
Flow rate (l/h)
18
1-24-B
