Assembling The Mount - Nexus 21 Transcend Pro Installation Instructions Manual

For these steps you will need the following parts:
• Swivel Pivot Bolt
• Swivel Pivot Nut
• (2) Swivel Pivot Washers
• (2) 5 x 35mm BHMS Screws
• (4) #10 x 0.25" Phillips Screws

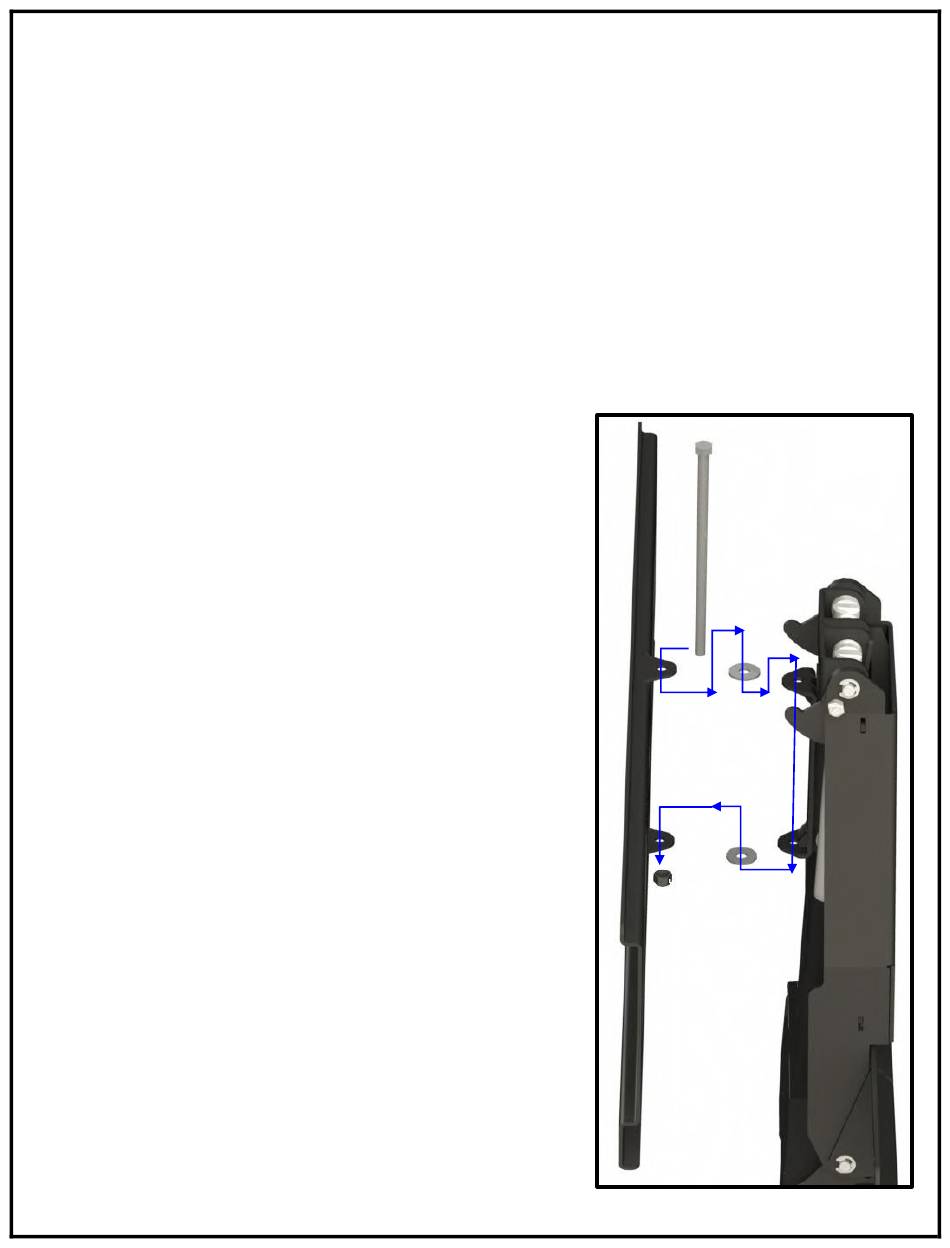

Step 7: Attach the Screen Back Plate to the Mount using the
Swivel Pivot Bolt, Swivel Pivot Nut, and (2) Washers using the
diagram shown to the right. Ensure the thinner washer
remains on top.
Step 8: Adjust the Swivel Tension, by loosening or tightening the
Swivel Pivot Nut while holding the head of the Swivel Pivot Bolt
with a Wrench.

Assembling the Mount

9
Swivel Pivot Bolt
Swivel Pivot Nut
