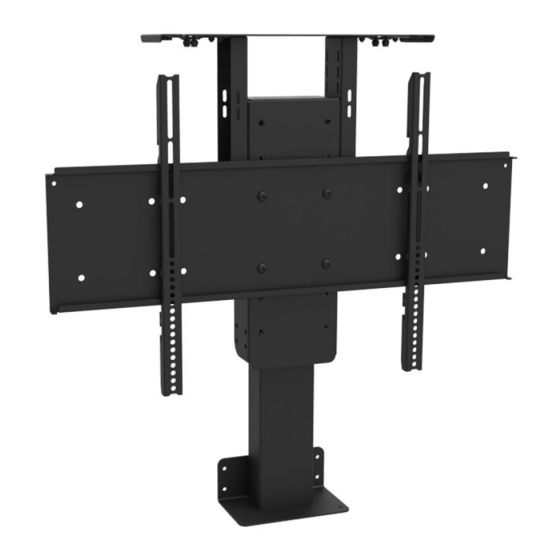

- Page 1 TV Lift System Model L-50s Installation Instructions...
- Page 2 Revised: 3/21/18 Below is a parts list describing all of the items included with the Model L-50s Lift System. You may also wish to refer to the dimensional diagram shown on “Supplemental Page A” (at the end of this document).
- Page 3 Parts List, continued Control Box Swivel Mechanism Assorted TV Mounting Screws Cables • Motor Cable 2.5m (1) – Black cable with white, six-pin plugs. Use this cable to connect the Lift Column to the Control Box. • Power Cable – Connects Control Box to power outlet. Three feet long. •...
- Page 4 Nexus 21 disclaims any liability for modifications, improper installations, or installations over the specified weight range. Nexus 21 will not be liable for any damages arising out of the use of, or inability to use, Nexus 21 products. Nexus 21 bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the servicing of Nexus 21 products performed by anyone other than Nexus 21.
- Page 5 Instructions for setting the Lift System travel limit are on Page 30. TIP: Planning to integrate the TV Lift with your UNIVERSAL REMOTE CONTROL? The RF version of the Nexus 21 controls won’t do it. Switch to IR. These are the parts included with RF controls: Backup Switch...
- Page 6 - The Lift Column is ONLY designed and rated for VERTICAL, NON-INVERTED USE. DO NOT MOUNT THIS LIFT SYSTEM UPSIDE DOWN or SIDEWAYS (HORIZONTALLY)! TIP: Inverted (drop-down) lift systems are available from Nexus 21. Contact Customer Service at (866) 500-5438 Space requirements for the L-50s Lift System are as follows: Depth = TV Depth + 6.625”...
-
Page 7: Table Of Contents
Assembling and Installing TV Mounting System Important Information About the Floating Lid Installing the Tapered Pins in the Floating Lid Installing the Lid Catch Setting a Height Limit L-50s Dimensional Drawing Supplemental Page C: Connect the Lift to Home Control System... -
Page 8: Assembling And Installing The Actuation System
Assembling and Installing the Actuation System For these steps you will need the following parts: • Lift Column • Base Mount • Column Clamp Extension • Column Clamp Base • (4) 6 x16 FHMS • (2) #10 x ¾” THWS Step 1: Attach the Lift Column to the Base Mount using the (4) 6 x 16 FHMS. - Page 9 Step 3: Fasten the Base Mount to both the bottom and rear panel of the enclosure using (8) #10 x ¾” THWS Step 4: Slide the Column Clamp Extension around the front of the Lift Column and place it right below the slots located on the left and right side of the Lift Column.
-
Page 10: Connecting The Lift
Connecting the Lift For these steps you will need the following parts: • Control Box • Power Cord • Wired Backup Switch • Interface Cable • Swivel Mechanism • CSI Control Kit (If IR was ordered) • RF Control Kit (If RF was ordered) •... - Page 11 Step 10: Connect the Power Cord to Port AC on the Control Box then connect the cord to a power receptacle. Step 11: Connect the RF Receiver to Port A2 on the Control Box, if you are using RF Controls. Leave Port A2 blank if you are using IR Controls. Step 12: Using the Wired Backup Switch or IR Receiver, press the DOWN button once, then press and hold it again for 5 seconds to “Initialize”...
-
Page 12: Assembling And Installing Tv Mounting System
Assembling and Installing TV Mounting System For these steps you will need the following parts: • Screen Support • Swivel Mechanism • (2) Top Support Brackets • Top Plate • Screen Back Plate • (2) Vertical Mounting Bars • Screen Locks •... - Page 13 Step 16: Measure the Interior Height of the Cabinet and subtract 29.625” from it. This will be the distance you will need to attach the Top Support Brackets above the Screen Support. Step 17: Attach both Top Support Brackets to the sides of the Screen Support using (8) 6 x 12mm BHMS, (4) per side.
- Page 14 Step 20: Attach the Vertical Mounting Bars to the back of the TV using the provided Large Assorted TV Hardware. The following Diagrams show information on how to attach the Vertical Mounting Bars to the TV in 2 Scenarios. All hardware mentioned in these diagrams is inside the Large Assorted TV Hardware Pack, however other hardware may be necessary based on TV model.
- Page 15 Step 21: Mount the TV to the Lift System by hanging the Vertical Mounting Bars on the Screen Back Plate. Step 22: Insert the Screen Locks into the lower section of hooks the rest right below the Screen Back Plate and fasten them using a Phillips Screw Driver.
-
Page 16: Important Information About The Floating Lid
Important Information About the Floating Lid What Are the Tapered Pins, and Why Use Them? The two 1½” x ¼” Steel Threaded Tapered Pins are used IN PLACE OF SCREWS to hold your cabinet top (lid) in place on the Lift System Top Plate (Part #8). -
Page 17: Installing The Tapered Pins In The Floating Lid
Installing the Tapered Pins in the Floating Lid For these steps you will need the following parts: • Threaded Tapered Pins • 7/32” Drill Bit • Phillips Screw Driver • Cabinet Lid • (Optional) Wood Glue • (Granite Only) Epoxy Step 23: Fully retract the lift by pressing the DOWN button on the Remote or Wired Backup Switch. - Page 18 Step 26: Using a pencil, sharpie, or felt-tipped pen, mark the position for the Tapered Pins from the underside of the Top Plate. Step 27: Remove the Lid, and drill two holes ½” deep in the two marked positions using a 7/32” drill bit. Step 28: Thread the provided Tapered Pins into the holes using a phillips screwdriver.
- Page 19 Step 29: Place the Lid on top of the Lift System, lining the Tapered Pins up with the holes used to locate the pins in step 22. Step 30: Run the lift down then up to test and ensure the position of the lid is correct. If the position of the pins are off, loosen the nuts for Pin Nests located on the underside of the lid and position the lid so that it is centered within the enclosure cutout.
-
Page 20: Installing The Lid Catch
Installing the Lid Catch In order for the Lid to always rest flush with the surrounding cabinet or countertop, you must install a Lid Catch. A Lid Catch functions similar to a “manhole cover” in the it catches lid allowing the Lift System to breakaway and allow gravity to ensure the lid sits flush. -
Page 21: Setting A Height Limit
Setting a Height Limit This lift system has 39.25” of travel [extension or stoke], if your installation requires less than the maximum travel of the system, follow the steps below to limit it: 1. Extend the lift to your desired position. 2. -
Page 23: Supplemental Page C: Connect The Lift To Home Control System
Supplemental Page C: Connect the Lift to Home Control System... - Page 24 866-500-5438...
