Nexus 21 L-65 HTG Installation Manual

Hide thumbs Also See for L-65 HTG:

Advertisement

Quick Links

Download this manual

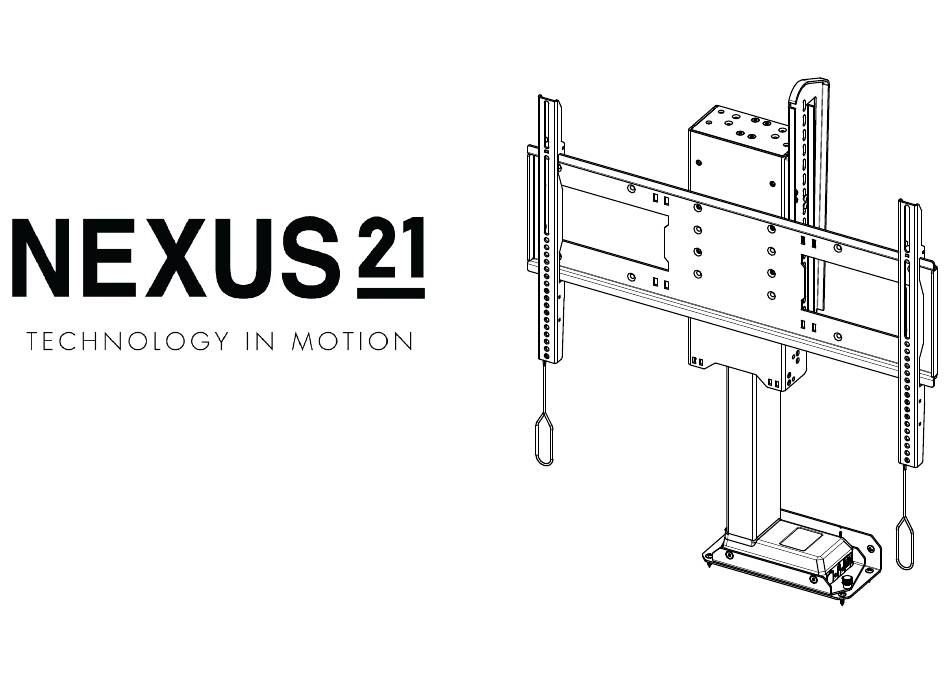

Installation Manual for
L-65 HTG

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-65 HTG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexus 21 L-65 HTG

Summary of Contents for Nexus 21 L-65 HTG

  • Page 1 Installation Manual for L-65 HTG...

  • Page 2: Table Of Contents

    Table of Contents Page 3 Safety Information Page 4 Parts & Hardware List Page 6 Warranty & Return Policies Page 8 Assembly & Installation Page 13 Connecting the Lift System Page 16 Assembly & Installation Continued Page 21 TV Mounting Page 26 Lid Testing Version:...

  • Page 3: Safety Information

    Nexus 21 products. Nexus 21 bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the servicing of Nexus 21 products performed by anyone other than Nexus 21. Nexus 21 intends to make this and all documentation as accurate as possible.

  • Page 4: Parts & Hardware List

    Parts List Control Box Base Mount Column Clamp Base & Lift Column Mount Column Clamp Extension Lift Column Motor Cable Backup Switch Power Cable Screen Support Hinged Top Guide Adapter Hinged Top Guide TV Mounting Template...
  • Page 5 Parts List Continued (2) Vertical Mounting Bar Screen Backplate Hardware Pack Control Kit Hardware Pack Contains: (8) - M6 x 12 BHMS (1) - Hinge Top Guide Hardware Pack (4) - Snakeskin Ties (10) - #8 x 3/4 FHWS (14) - M6 x 12 FHMS (1) - M4 Small Hex Key (4) - Plastic Ties (2) - #10 x 1-3/4 FHWS...
  • Page 6 In the event that you do need a replacement part or system, we’ll ship it to you right away, along with a prepaid UPS return shipping label and a package for the defective part or system to be returned to our offi ce. Nexus 21 will cover the shipping cost of the replacement part or system within the continental United States and Canada (excludes Hawaii, Alaska and Puerto Rico).
  • Page 7 Within 30 Days of Delivery: Customers may return a Nexus 21 product(s) for any reason within 30 days of the date it is received for a full refund of the purchase price. Shipping charges associated with your order are not eligible for refund. To initiate a product-return request, please review the following conditions: •...

  • Page 8: Assembly & Installation

    Assembly & Installation This section of the manual will walk you through how to assemble and install your lift system. Before you begin: Ensure your cabinet has been designed to block the lift system 2” away from your hinge point. Failure to block the lift forward will result in inconsistent operation and damage to the lift system.
  • Page 9 A u d i o V i d e o ( A V ) S i d e C o n t r o l B o x ( C B ) S i 1a. Identify which side of your TV the AV ports are on; this will be the AV Side of the Cabinet. The other side will be where you mount your control box; this will be the CB Side. For Illustration purposes, the rest of this manual will show an installation with the AV side on the left and the CB side on the right.
  • Page 10 Center 2. Attach the Base Mount to the base and rear panels of the cabinet using (6) #10 x 3/4 THWS by aligning the center line on the Base Mount with the center of the cabinet. Note: If your CB Side is on the right, align the center line with the arrow pointing to the right with the center of your cabinet. If your CB side is on the left, align the center line with the arrow pointing to the left.
  • Page 11 23.5” 3. Attach the Column Clamp Base to the rear of the cabinet 23.5” [59.7cm] from the top of the Base Mount using (4) #10 x 3/4 THWS. Note: Use the Center line Cutout on the Base Mount and Column Clamp Base to assist with locating them on the inside of your cabinet.
  • Page 12 5. Slide the Column Clamp Extension around the front of 4b. Attach the Lift Column Assembly to the Base Mount using (2) 4a. Attach the Lift Column Mount to the base of the lift column and secure it to the Column Clamp Base Thumb Screws.

  • Page 13: Connecting The Lift System

    Connecting the Lift System This section of the manual will walk you through how to connect your lift system.
  • Page 14 Lift Column - Port 1 Contact Closure/IR/RF/IP Controls - Port A2 Backup Switch - Port A1 To Power Outlet 6a. Connect one end of the Motor Cable to the Lift Column and the other end to Port #1 on the Control Box. 6c.
  • Page 15 8. Test the function of the lift system by pressing the Up button on the Wired Backup 7. Press the Down button on the Backup Switch, release, then press and hold it for 5 Switch to raise the system fully. seconds to perform an ‘Initialize’.

  • Page 16: Assembly & Installation Continued

    Assembly & Installation Continued...
  • Page 17 9. If your cabinet does not have a built in Lid-Catch, install the provided Lid Corner Catches from the Hardware Pack in each corner of the cabinet using (8) #10 x 3/4 THWS.
  • Page 18 10a. Partially extend the lift system by pressing the Up button on the Wired Backup Switch. Once the system reaches an appropriate height, press the Down button to stop it. 10b. Attach the Screen Support to the top of the Lift Column using (4) M6 x 16 FHMS.
  • Page 19 11a. Install the Hinged Top Guide Adapter on the right side of the Screen Support using (2) M6 x 12 FHMS in the countersunk holes. 11b. Lower your lift system by pressing the Down button on the Wired Backup Switch. 11c.

  • Page 20: Tv Mounting

    TV Mounting This section will walk you through mounting your TV to your L-65 Lift System.
  • Page 21 1/2” 13a. Raise your lift, align the template with the holes on the screen support, then fold or cut the template to be flush with the top of the Hinged Top Guide. 13b. Measure 1/2” [1.3cm] from the new top of the template and draw a line. This line indicates the position for where the top of the TV will be.
  • Page 22 TV VESA Holes TV VESA Holes 14a. Align the line you just drew with the top of the TV. 14b. Attach the Vertical Mounting Bars to the Screen Backplate, ensuring the spring-loaded latch on each Vertical Mounting Bar is engaged against the Screen Backplate. 14c.
  • Page 23 15a. Disconnect the Screen Backplate from the Vertical Mounting Bars. Note: You can disengage the spring-loaded latch on the Vertical Mounting Bars by pulling the straps at the bottom. 15b. Attach the Screen Backplate to the holes on the Screen Supports that correspond with the marked holes on your TV Mounting Template using (4) M6 x 12 FHMS.
  • Page 24 16a. Attach the Vertical Mounting Bars to your TV using the marked holes. If you are using a soundbar, follow the information sheet included with it first. 16b. Hang your TV on the Screen Backplate, ensure the spring-loaded latch on each Vertical Mounting Bar is engaged with the Screen Backplate. Then, press the Down button on the Wired Backup Switch to lower your lift system.

  • Page 25: Lid Testing

    Lid Testing This section will walk you through testing the lid placement on your L-65 Lift System to ensure it has been properly installed. Note: Install your lid using your hinge of choice prior to performing this test.
  • Page 26 17. Starting with your lift in the retracted position, press the Up button on the Wired Backup Switch and raise the lift. Note: If the lift system will not raise, or stops moving shortly after the up button is pressed, this indicates that the Hinged Top Guide is positioned too low. Manually move the lid and raise the Hinged Top Guide, then repeat this test.
  • Page 27 Less than 90º 18a. With the lift system fully raised, first check to ensure your lid rests at an angle less than 90º. Then, press the Down button on the Wired Backup Switch to begin lowering the lift system. Note: If the lift system raises after it has reached the bottom, this indicates the Hinged Top Guide is positioned too low. If your lid does not reach a fully flush state at any point, this indicates the Hinged Top Guides are positioned too high.
