Chore-Time 108 FLEX-AUGER Installation Instructions Manual page 11

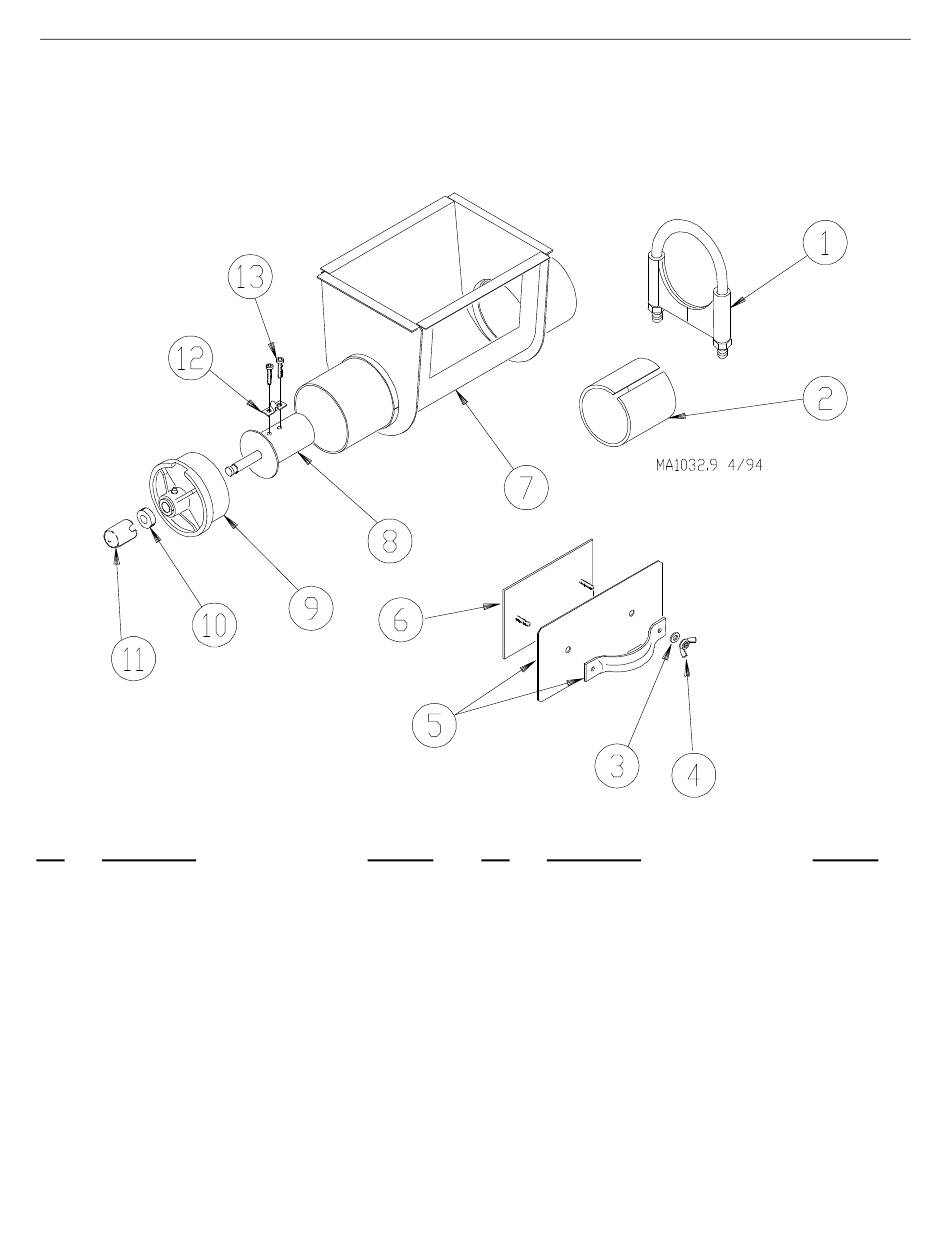

KEY DESCRIPTION
1 Tube Clamp
2 Tube Insert
3* Sealing Washer
4* 5/16-18 Wing nut
5* Cover Weldment
6* Back Plate Assembly
7 Boot Body Weldment
*Indicates components of 6197 Clean-Out Cover Assembly
Note: The Extension Boot components (less the Control Unit) may be ordered as an assembly under
Chore-Time Part No. 34372.
EXTENSION BOOT KIT
Part No. 34633-1 (1 Phase)
Part No. 34633-3 (3 Phase)
PART NO.
34338
34337
8491
2146
6301
6298
30386
Model 108 Extension Boot Installation Instruction
KEY DESCRIPTION
8 Anchor Weldment
9 Bearing Cap Assembly
10 5/8" Set Collar
11 Safety Cap
12 Anchor Clamp
13 5/16-18 x 7/8" Socket Hd Cap Screw
-- Adapter Plate Assembly
-- Direct Drive Control Unit for 34633-1
-- Direct Drive Control Unit for 34633-3
11
PART NO.
34369
30314
1386
29703
7703
6850-1
7856
6500-22
25770-6
