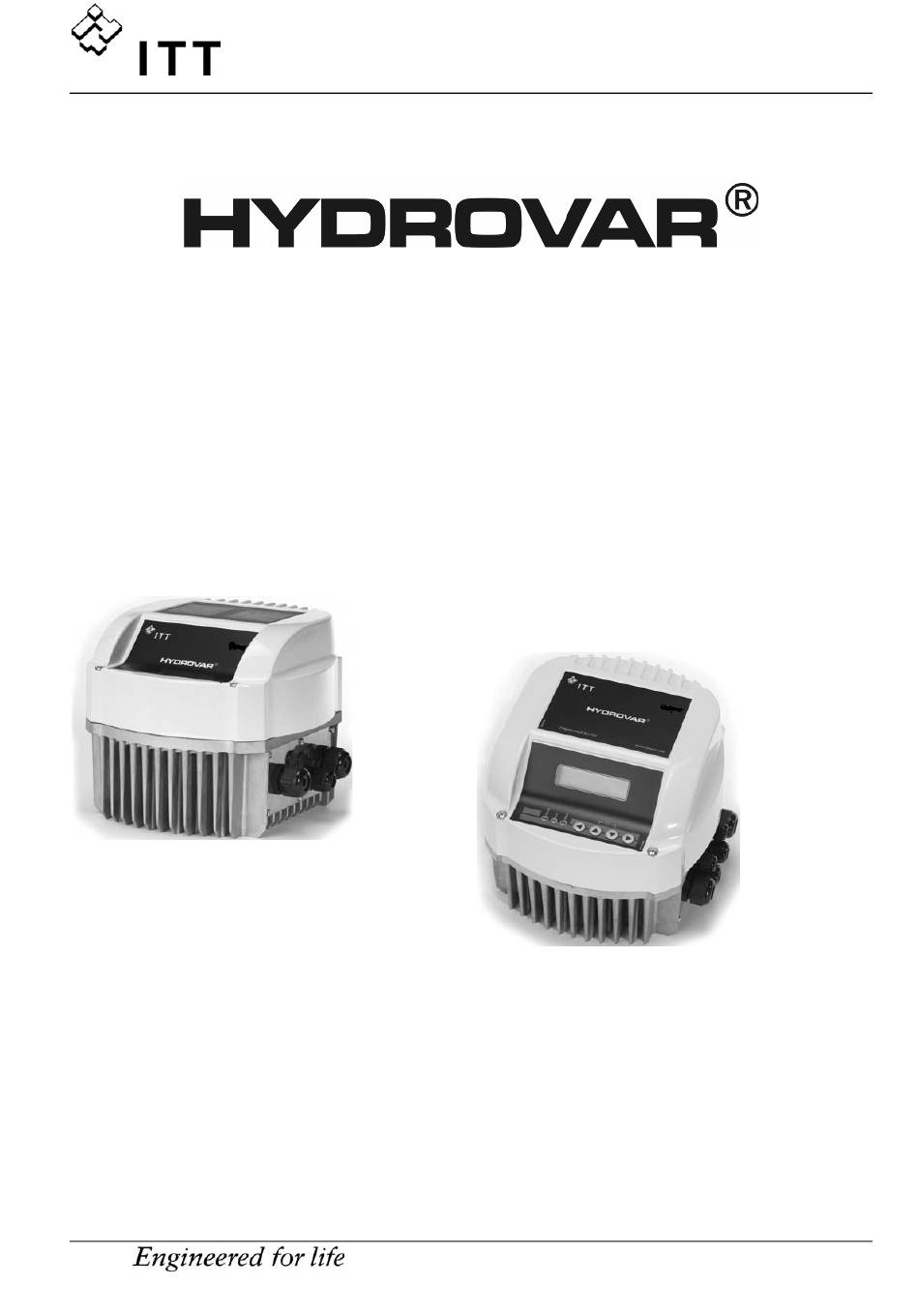

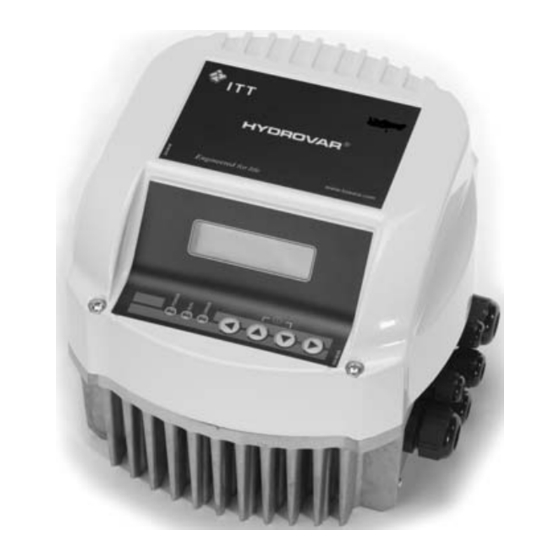

  • Page 1 HV 2.015 / 2.022 HV 4.022 / 4.033 / 4.040 HV 4.055 / 4.075 / 4.110 ENGLISH Motor-mounted GERMAN-DEUTSCH Motormontage ITALIANO Montaggio su motore FRANÇAIS Montée sur moteur NEDERLANDS Montage op de motor PORTUGUÊS Montada em motor ESPAÑOL Motor-Instalado 771079402 Manual HV 2.015-4.110-VL-A...
  • Page 2 Operating Instructions HV 2.015 / 2.022 HV 4.022 / 4.033 / 4.040 HV 4.055 / 4.075 / 4.110 Motor-mounted English...

  • Page 4: Table Of Contents

    Index Important safety instructions ................5 System Design......................8 Pressure tank....................8 Product Overview....................9 Hardware Configurations ................9 Operation Modes ..................9 3.2.1 Actuator (for single pump operation only!) ............9 3.2.2 Controller........................ 9 3.2.3 Cascade Relay ....................... 10 3.2.4 Cascade Serial ....................... 11 Type designation code ..................13 Technical Data ......................14 General Technical Data ................15 EMC (Electromagnetic compatibility) requirements ......16...
  • Page 5 10 Programming .......................47 10.1 Display – Control panel of the Master / Single Inverter ......47 10.2 Function of the push buttons ..............47 10.3 Display of the Basic Inverter ..............48 10.4 Software Parameters ................49 00 Main Menu ..................49 20 Submenu Status................54 40 Submenu Diagnostic .................57 60 Submenu Settings................58 0100 Submenu Basic Settings ............59...

  • Page 6: Important Safety Instructions

    Important safety instructions Read and follow the operating instructions and safety instructions carefully before starting operations! All modifications must be done by qualified technicians! Warns that failure to observe the precaution may cause electric shock Warns that failure to observe the precaution may cause personal injury or damage to property.
  • Page 7 All work, carried out at opened HYDROVAR, may only be performed by qualified and authorized staff. Furthermore, care must be taken not to short circuit the neighbouring components when connecting the external control wires and all cable ends which are not in use are isolated. The HYDROVAR contains electronic safety devices which switch off the control element in the event of faults, whereby the motor has zero current but remains energised and comes to a halt.
  • Page 8 Transport, Handling, Storage, Disposal: • Check the HYDROVAR immediately upon delivery/receipt of dispatch for damage or missing parts • The HYDROVAR unit must be transported carefully and by competent personnel. • Avoid serious impacts NOTICE! The use of the WEEE Symbol indicates that this product may not be treated as household waste.

  • Page 9: System Design

    System Design The following diagrams show typical single pump and multi-pump systems using the HYDROVAR control unit. Connection can be made directly to a water supply. In such a case, a pressure switch on the suction side should be used. Single Pump Layout Multi Pump Layout pump with HYDROVAR...

  • Page 10: Product Overview

    Product Overview 3.1 Hardware Configurations The HYDROVAR Modul Concept consists mechanically of two main parts, the Power Unit and the Control Card. In its basic configuration (consists only of the Power Unit) the HYDROVAR can be used as “Basic Inverter” without the need of the Control Card. In that form the HYDROVAR can be used as a sequence pump in a multi pump system, but also as a simple soft starter for single pump applications.

  • Page 11: Cascade Relay

    3.2.3 Cascade Relay One pump is fitted with a HYDROVAR “Master Inverter” and up to 5 full speed slave pumps can be switched ON and OFF on demand. For this purpose an additional relay card with 5 relays is used in the “Master Inverter”. Each Relay can be activated or deactivated depending on how many pumps are connected.

  • Page 12: Cascade Serial

    3.2.4 Cascade Serial In this mode there are various possibilities to combine the different versions of the HYDROVAR, which will be explained on the following pages. In general each of the pumps is equipped with a HYDROVAR unit. All units are connected via the RS485 interface and are communicating via standard MODBUS-Format (fixed with 9600 Baud, RTU, N81).
  • Page 13 To increase the operating safety of such a system, also a second “Master Inverter” could be used: RS 485 extended up connection to 8 pumps Full-featured Possibility: Each pump is equipped with a “Master Inverter” RS 485 extended up connection to 8 pumps In this mode it is possible to run all pumps in multi-controller mode and synchronous mode as well!

  • Page 14: Type Designation Code

    Type designation code Software Version Language A = Western Europe B = Eastern Europe C = Northern Europe Hardware Version Optional Components Optional Card Relay Card (0= without / R= included) Bus Card Display (0= without / 1= included) EMC Protection Filter A = A- Filter (industrial environment) B = B- Filter (domestic environment) Enclosure Class (IP Class)

  • Page 15: Technical Data

    Technical Data HYDROVAR Power Supply Type Rated Voltage limits Rated current Recommended Maximum line protection connection output 48-62 Hz input [kW] [mm²] 2.015 14,0 1~230 ± 15% 2.022 20,0 4.022 3~380-460 ± 15% 4.030 4.040 11,4 4.055 15,1 3~380-460 ± 15% 4.075 19,6 4.110...

  • Page 16: General Technical Data

    5.1 General Technical Data 0° C ... +40°C Ambient temperature: At higher temperatures a reduction of the output current or the use of the next HYDROVAR type is necessary. max. ambient temperature [°C] o Protect the HYDROVAR against direct sunlight! o Outdoor installation without protection of the HYDROVAR is not permitted! Storage temperature:...

  • Page 17: Emc (Electromagnetic Compatibility) Requirements

    5.2 EMC requirements (Electromagnetic compatibility) The EMC requirements differ between two environments which depending on the intended use. • First environment – class B (EN 61800-3: Class C2) Environment that includes domestic premises, it also includes establishments directly connected without intermediate transformers to a low-voltage power supply network which supplies buildings used for domestic purposes.

  • Page 18: Dimensions And Weights

    Dimensions and Weights HV 2.015 / 2.022 HV 4.022 / 4.030 / 4.040 All dimensions in millimetres! Drawings are not in scale! Lifting aids must have the proper dimensions. Type Weight [kg] Master/ Basic Single HV 2.015 HV 2.022 4,00 4,40 HV 4.022 HV 4.030...
  • Page 19 HV 4.055 / 4.075 / 4.110 All dimensions in millimetres! Drawings are not in scale! Lifting aids must have the proper dimensions. Type Weight [kg] Master/ Basic Single HV 4.055 7,70 8,10 HV 4.075 HV 4.110 a … minimum centre-distance between the HYDROVAR 430 [mm] b …...

  • Page 20: Modules

    Modules Regarding to your application the needed configuration which is available for the HYDROVAR can be selected. Due to this possibility the HYDROVAR can be configured regarding the operation safety and cost effectiveness for your specific application. HV 4.022 / 4.033 / 4.040 HV 4.055 / 4.075 / 4.110...
  • Page 21 Relay Card The optional Relay Card allows to control up to 5 fixed speed pumps (can be only used in combination with the Master Inverter). Control Card The control card is used for the Master/Single Inverter and includes the I/O’s for the digital and analogue signals (i.e.

  • Page 22: Mechanical Components

    Mechanical Components 8.1 Included mounting material Included Cable gland Closing gland Motor PTC Mounting Center- Terminals components clamps piece for max. [mm²] Cable diameter 3,5-7 4,5-10 7-13 9-17 [mm] 2.015- 2.022 2 (3) 4.022- 4.040 2 (3) 4.055- 4.110 2 (3) ( ) max.

  • Page 23: Assemble Instruction

    8.3 Assemble Instruction HV 2.015 – HV 4.110 4 screws (to fix the cover) HYDROVAR - cover 4 Screws M5x60 Display Centre bit 4 Mounting clamps Motorcable Motor fan cover Motor Motor conduit box Pressure transmitter...
  • Page 24 To remove the HYDROVAR – cover, the 4 fastening screws must be opened. o Ensure that there is no water on the unit before you open the cover. • The HYDROVAR has to be positioned on the motor fan cover (check if the mounting of the motor fan cover is done properly).

  • Page 25: Electrical Installation And Wiring

    Electrical installation and wiring All installations and maintenance have to be performed by properly trained and qualified personnel with proper tools!! Use personally protection equipment. In case of a failure, the electrical power has to be disconnected or switched off. Wait at least 8 minutes for capacitor discharge before servicing the HYDROVAR.

  • Page 26: Emc-Electromagnetic Compatibility

    9.2 EMC-electromagnetic compatibility To ensure the electromagnetic compatibility the following points must be observed for cable installation: Earth / ground to ensure EMC • Protection earth It is important to connect the HYDROVAR to PE, because of the earth leakage current.

  • Page 27: Recommended Cable Types

    Motor cables To ensure the EMC compatibility and minimize noise level and leakage currents, keep the motor cable as short as possible. Additional component line choke (coil) Line coils are available as an option and should be mounted between the HYDROVAR and the main fuse.

  • Page 28: Wiring And Connections

    Wiring and connections Remove the screws holding the top cover of the HYDROVAR. Lift off the top cover. The following parts can be seen on a HYDROVAR Master / Single Inverter: HV 2.015 / 2.022 HV 4.022 / 4.033 / 4.040 (A) Power supply (D) Status-Relays (F) Terminal block:...

  • Page 29: Main Voltage Terminals

    9.4.1 Main Voltage Terminals The power supply is connected to the power section: terminal L1 + N (1 x 230 VAC, single-phase) terminal L1+ L2 + L3 (3 x 400 VAC, three-phase) HV 2.015 / 2.022 HV 4.022 / 4.033 / 4.040 L1-L2-L3 3x400 VAC L1-N...

  • Page 30: Motor Connection

    9.4.2 Motor connection Mounting of the PTC Variant A : Variant B : Motor block Terminal block Rubber gasket Cover of the conduit box 1. The cover of the conduit box must be opened and the terminal block inside removed 2.

  • Page 31: Power Unit

    9.4.3 Power Unit The Power unit in its basic form, which is used as Basic Inverter in multi-pump systems or as a simple soft starter in a single pump application, is fitted with two control terminal- blocks. HV 2.015/2.022 HV 4.022 / 4.033 / 4.040 HV 4.055 / 4.075 / 4.110 X1 Control Terminals –...

  • Page 32: Solo Run

    9.4.3.1 Solo Run The Terminals X1/SL are used to release a Basic Inverter (when used in a multi-pump application) when the communication to the Master Inverter fails, or even the Master Inverter itself fails, or in case the Basic Inverter is just used as simple soft-starter. •...
  • Page 33 If the HYDROVAR is used as Basic Inverter in a multi-pump system, the internal interface on the power unit is used for the serial RS-485 connection to the other HYDROVAR in the system. (Be careful: Internal Interface is not active for Single Inverter configuration!) X2 RS485-Interface –...

  • Page 34: Addressing

    9.4.3.2 Addressing When using the Cascade Serial Mode in a Multi-pump-application where more than one Master Inverters, or additional to Master Inverters also Basic Inverters are used, the right Address must be set to guarantee the correct function of this system. Master Inverter –...
  • Page 35 HV 2.015 / 2.022 HV 4.055 / 4.075 / 4.110 HV 4.022 / 4.033 / 4.040 Basic Inverter Basic Inverter Dip-switch Dip-switch...

  • Page 36: Control Unit

    9.4.4 Control Unit Regarding the Hardware configuration of your HYDROVAR there are available two different Control Cards. The control unit of the HYDROVAR Master Inverter basically consists of the Control Card and the additional boards which are connected to the Control Card via slot connectors. This configuration is able to support all special software features and optional Boards.
  • Page 37 Control Terminals All control cables connected to the control-unit have to be screened (See chapter 9.3 Recommended Cable Types). NOTE: If unscreened control cables are used, signal interference may occur and could interfere the incoming signals and the function of the HYDROVAR. Don’t connect the ground of the Control Card to different voltage potentials.
  • Page 38 Additional Power supply ** max. 100 mA Current signal input (Required Val. 2) 0-20mA / 4-20mA [Ri=50Ω] To determine the required value or the offset Analogue Output 2 4-20mA [Ri=500Ω] Analogue Output 1 0-10 VDC Current signal input (Required Val. 1) 0-20mA / 4-20mA [Ri=50Ω] To determine the required value or the offset...
  • Page 39 Connection examples: • Sensor–Actual-value-signal Input Connection of a 2-wire transducer Connection of an active actual-value-signal (e.g. standard pressure transducer PA22) Standard Pressure Possible connections: Transducer PA22: Actual-value-signal input 0/4-20mA: X3/4 … Sensor 2 +24VDC Sensor Supply: X3/3 brown Actual-value-signal input 0/4-20mA: X3/2 …...
  • Page 40 • Switching between two different required values Manual switching between two connected required value signals (e.g.:1voltage and 1 current signal input) by closing Digital Input 1 (X3/9-10). In ACTUATOR Mode it is possible to switch between two different frequencies by the Digital Inputs.
  • Page 41 X4 RS485-Interface User SIO-Interface: SIO- User Interface User SIO-Interface: SIO+ for external usage GND, electronic ground Internal SIO-Interface: SIO- Internal Interface Internal SIO-Interface: SIO+ for multi-pump-systems GND, electronic ground RS-485 – Internal Interface RS-485 - User Interface The internal RS-485 Interface is used for the communication between up to 8 HYDROVARs in a multi-pump application.
  • Page 42 X5 Status-Relays Status Relay 1 [Max. 250VAC] [0,25A general use] [Max. 220VDC] [0,25A general use] [Max. 30VDC] [2A general use] Status Relay 2 Status Relay 1 Status Relay 2 Please Note: When using the relay contacts for driving an external relay, a corresponding RC-snubber-circuit is recommended, to prevent disturbances arising during a switching action of the...

  • Page 43: Relay Card

    9.4.4.2 Relay Card Optional Component can be used only in combination with a HYDROVAR Master Inverter. The Relay Card is connected to the Control Card using connection slot X6 (See chapter 9.4.4.1). Terminal Block Please Note: When using the relay contacts for switching external contactors, a corresponding RC-snubber- circuit is recommended, to prevent disturbances Connector to...
  • Page 44 Connection example: The following wiring diagram shows a standard cascade control system where the HYDROVAR is fitted with an additional Relay card, in selected mode “Cascade Relay”. To switch the fixed speed pumps via the internal relay card, an external panel for the contactors of the D.O.L or STAR/DELTA starters (and optional A/0/M –...

  • Page 45: Control Card - Hydrovar Single Inverter

    9.4.4.3 Control Card – HYDROVAR Single Inverter The Control Card is connected to the power unit with a ribbon cable on terminal X8. • The display is connected to terminal X9 (The connection depends to the installation position). X5- Status- Relays X3- Digital / Analogue –I /O RS485 - Terminal...
  • Page 46 Control Terminals All control cables connected to the control-unit have to be screened (See chapter 9.3 Recommended Cable Types). NOTE: If unscreened control cables are used, signal interference may occur and could interfere the incoming signals and the function of the HYDROVAR. Don’t connect the ground of the Control Card to different voltage potentials.
  • Page 47 X5 Status-Relays Status Relay 1 [Max. 250VAC] [0,25A general use] [Max. 220VDC] [0,25A general use] [Max. 30VDC] [2A general use] Status Relay 2 Status Relay 1 Status Relay 2 Please Note: When using the relay contacts for driving an external relay, a corresponding RC-snubber-circuit is recommended, to prevent disturbances arising during a switching action of the...

  • Page 48: Programming

    10 Programming Read and follow the operating instructions carefully before start programming to prevent incorrect settings which will cause malfunction! All modifications must be done by qualified technicians! 10.1 Display – Control panel of the Master / Single Inverter Power Run Fault LEFT DOWN RIGHT...

  • Page 49: Display Of The Basic Inverter

    10.3 Display of the Basic Inverter Status LED - green Constant Motor stopped (Standby) Blinking Motor run Error LED - red The Type of shown error which occurred is indicated by the Blinking-code of the ERROR LED. 1 blink Undervoltage 2 blinks Overcurrent / Overload 3 blinks...

  • Page 50: Software Parameters

    10.4 Software Parameters In the following chapters all available parameters of the secondary menu are listed. On the Index window there is shown the factory setting and in the line below the possible settings. The general parameter description is written for the HYDROVAR Master Inverter (Full featured HYDROVAR including the high level control card which supports also the optional modules like the optional “Relay Card”...
  • Page 51 b) Active MODE [0105] = Cascade Relay / Cascade Serial * ADR X XX.X Hz display at Mode Cascade Serial and Cascade Relay STOP X.XX Bar This window shows the status of the HYDROVAR. ADR X Pump address Cascade Relay Mode: Indicates the number of pumps which are running e.g.: P3 ….
  • Page 52 03 EFF REQ VAL Effective Required Value X.XX Bar Shows the current required values which is calculated regarding to ACTUAL VALUE INCREASE [0505], ACTUAL VALUE DECREASE [0510] and LIFT AMOUNT [0330]. Even if the required value is recalculated by an offset signal (SUBMENU OFFSET [9000]) the current active required value is shown in this window.
  • Page 53 Non –valid for Mode - Actuator 04 START VALUE Regulation Restart Value Possible settings: 0 – 100 % – OFF This parameter determines the start value after pump stop in percentage of the required value. e.g. REQUIRED VALUE [02]: 5.0 bar START VALUE [04]: 80 % -->...
  • Page 54 With the following two parameters the current date and time, has to be set. That is necessary to save and display failure messages with the accurate date and time when the failure happened. 06 DATE Current Date DD.MM.YYYY Set the date by pressing ►...

  • Page 55: Submenu Status

    20 SUBMENU Status of all units in a pump group STATUS Using this submenu it is possible to check the status (including failures and motor hours) of all connected units. 21 STATUS UNITs Status of all Units 00000000 This parameter gives a quick overview beyond the status of the connected units In Cascade Serial mode the status of all (max.
  • Page 56 Mode CASCADE RELAY: Device enabled by Master Inverter fixed speed pump Relay 1 X10 / 1 fixed speed pump Relay 2 X10 /2 fixed speed pump Relay 3 X10 /3 fixed speed pump Relay 4 X10 /4 fixed speed pump Relay 5 X10 /5 not used not used...
  • Page 57 25 MOTOR HOURS Motor-Runtime of the selected device XXXX h Total time how long the motor is being powered by the HYDROVAR and basis for the switching order of the follow up pumps. How to reset see Parameter CLR MOTORH. [1130]. Error memory All errors, including these of the Basic Inverter are shown and saved at the Master Inverter in this menu.

  • Page 58: Submenu Diagnostic

    40 SUBMENU DIAGNOSTICS 41 PROD. DATE Production Date of the HYDROVAR XX.XX.XXXX In this parameters the current temperature, voltage and current of the chosen inverter can be monitored even during operation of the HYDROVAR. These parameters are only readable! 42 SEL. INVERTER Selection of the desired unit Possible settings: 43 TEMP.

  • Page 59: Submenu Settings

    60 SUBMENU SETTINGS Before entering the submenu Settings these instructions must be read carefully to prevent incorrect settings which will cause malfunction. All parameters can also be set during operation. Therefore different parameters in the extended submenu should be used only by trained and qualified persons. It is suggest stopping the HYDROVAR by pressing ▼...

  • Page 60: 0100 Submenu Basic Settings

    0100 SUBMENU 0100 BASIC SETTINGS 0105 MODE 0105 Selection of the Operation Mode Controller Possible settings: Controller, Cascade Relay, Cascade Serial, Actuator Controller (Default Setting): This mode should be selected if only one HYDROVAR Master-Inverter is in operation and no connection to any other HYDROVAR via RS-485 interface has been done.
  • Page 61 Actuator: (For single pump operation only!) The Actuator mode has to be used if an external speed signal is connected and the HYDROVAR is just used like a standard frequency converter. In this case, the internal controller is shut off, so the HYDROVAR won’t control the set value but it is responsible for running the connected motor at a frequency proportional to the input signal connected to the analogue inputs: X3/13: Voltage signal input (Required value 1) ⇒...
  • Page 62 0110 SET PASSW. 0110 Set Password by pressing ▲ ▼ 0066 Possible settings: The pre-set password (0066) can be changed if necessary. After the password has been changed, it is recommended to make some notes about the new password. 0115 LOCK FUNCT. 0115 Possible settings with ▲...

  • Page 63: 0200 Submenu Configuration Inverter

    0200 SUBMENU 0200 CONF INVERTER 0205 MAX. UNITS 0205 Maximum number of units Possible settings: 01 - 08 Select: The maximum number of units which can operate at the same time. For example: Cascade Serial: 1 Master- and 2 Basic Inverters are installed in a multi-pump-system -> Max. Units = 3 Cascade Relay: 1 Master Inverter and 3 fixed speed pumps ->...
  • Page 64 Ramp settings: • Time setting of the Ramps influence the control of the pump and shouldn’t be changed at standard operation. • The fast Ramps 1 and 2 are determined by the type (power) of the HYDROVAR and the type of the pump. (Default = 4 sec.;...
  • Page 65 0215 RAMP 1 0215 Ramp 1: Fast acceleration time 4 Sec Possible settings: 1 – 250 sec o Excessively fast running up time may cause an error (OVERLOAD) during the HYDROVAR starts up. o Excessively slow running up time may cause a drop of the outgoing pressure during operation.
  • Page 66 0235 RAMP FMIN A 0235 Ramp Fmin Acceleration 2.0 Sec Possible settings: 1.0 – 25.0 sec Fast running up time to start up the HYDROVAR till the selected MIN. FREQUENCY [0250]. Above the Minimum Frequency, RAMP1 [0215] (fast acceleration ramp) starts to work. o Excessively fast running up time may cause an error (OVERLOAD) during the HYDROVAR starts up.
  • Page 67 0255 CONF. FMIN 0255 Operation at Minimum Frequency f -> 0 Possible settings: f->0 or f->f f->0: After reaching the required pressure the frequency will go down to the selected MINIMUM FREQUENCY [0250] and the HYDROVAR will keep running for the selected FMIN TIME [0260].
  • Page 68 0270 KNEE FRQ. 0270 Knee Frequency 50.0 Hz Possible settings: 30.0 – 70.0 Hz In this parameter you can set the frequency, at which the HYDROVAR should deliver its maximum output voltage (for special applications only!). For standard applications this frequency should be set according the MAX. FRQ. [0245] (Default Setting 50Hz).

  • Page 69: 0300 Submenu Regulation

    0300 SUBMENU 0300 REGULATION 0305 JOG 0.0Hz Both current output frequency and actual value are 0305 X.XX Bar shown. • By pressing ▲ ▼ in this menu, the internal controller of the HYDROVAR will be shut off and the inverter changes to manual mode. •...
  • Page 70 0325 FRQ. LIFT 0325 Frequency limit for required lift value 30.0 Hz Possible settings: 0.0 Hz – 70.0 Hz Control according to a system curve (increase of the set pressure, depending upon the delivery rate or speed to cover friction loses). The setting determines the output-frequency where the set pressure starts to be increased.

  • Page 71: 0400 Submenu Sensor

    0400 SUBMENU 0400 SENSOR Within this submenu all sensors which are connected to the HYDROVAR can be configured. (Either two transducers with current signal input or voltage signal input) It isn’t possible to install two different transducer types because configurations are the same for all connected sensors.
  • Page 72 0415 SENSOR TYPE 0415 Selection of the sensor type and input terminal 4 – 20mA Possible settings: - analog I 4-20mA - analog I 0-20mA - analog U 0-10V For correct operation the suitable signal input type regarding to the connected sensor has to be selected.
  • Page 73 0430 SENS 1 CAL0 0430 Sensor 1 zero value calibration 0% = 00.00 bar Possible settings: - 10% up to +10% of the sensor range This parameter is used to calibrate the minimum value of Sensor 1. After setting the Dimension Unit and the Sensor range the minimum value for this sensor can be adjusted.

  • Page 74: 0500 Submenu Sequence Control

    0500 SUBMENU 0500 SEQUENCE CNTR. Using the parameters in this submenu, all necessary settings can be done for running a multi-pump system (even in Cascade Relay and Cascade Serial Mode). Application Example: 1) Lead pump reaches its ENABLE FREQUENCY [0515] 2) Actual value falls and reaches the cut in-value of the 1 follow up pump Cut in-value = REQUIRED VALUE [02] –...
  • Page 75 The following 3 parameters are responsible for starting the lag pumps and for calculation of the new required value as well. 0505 ACT.VAL.INC. 0505 Lift Value 0.35 Bar Possible settings: 0.00 – to the pre selected sensor range 0510 ACT.VAL.DEC. 0510 Fall Value 0.15 BAR...
  • Page 76 0530 DISABLE FRQ 0530 Disable Frequency (For Cascade Relay Only!) 30 Hz Possible settings: 0.0 – 120.0 Hz The Frequency to switch off the fixed speed pumps in Cascade Relay-Mode can be set by this parameter. If the Master Inverter goes below that frequency for longer than the pre-selected DISABLE DLY [0535] and the system pressure is higher than the EFFECTIVE REQ.
  • Page 77 0550 OVERVAL DLY 0550 Overvalue Delay 0 sec Possible settings: 0.0 – 10.0 sec Delay time to switch-off a follow-up-pump in case the actual value exceeds the OVERVALUE [0545] Limit. 0555 SWITCH INTV Switch Interval for cyclic changeover 0555 24 hours (For Cascade Serial only!) Possible settings: 0 –...
  • Page 78 0565 SYNCHR. WND. 0565 Frequency window for synchronous regulation 2.0 Hz Possible settings: 0.0 – 10 Hz Frequency limit for switching off the next follow-up pump. e.g. Switching of the 3 pump: All 3 pumps are running at a frequency < SYNCHR. LIM. [0560] + SYNCHR. WIN. [0565] or: Switching of the 4 pump: All 4 pumps are running at a frequency <...

  • Page 79: 0600 Submenu Errors

    0600 SUBMENU 0600 ERRORS 0605 MIN. THRESH. 0605 Minimum Threshold limit disabled Possible settings: disabled - max. SENSOR RANGE • An adjusted value >0.00 has to be reached within the programmed DELAY TIME [0610] • If this value can’t be reached, the HYDROVAR stops and indicates the Failure Message ”MIN.

  • Page 80: 0700 Submenu Outputs

    0700 SUBMENU 0700 OUTPUTS 0705 ANALOG OUT1 0705 Analogue Output 1 Output Frequency Analogue output 0 – 10V = 0 - 100% Terminal: X3/20 Possible settings: - Actual value For wiring see chapter 9.4.4! - Output frequency (0 - fmax) 0710 ANALOG OUT2 0710 Analogue Output 2...

  • Page 81: 0800 Submenu Required Values

    0800 SUBMENU 0800 REQUIRED VALUES The changeover between 1 and the 2 required value can be done internally or externally via the digital inputs. With the following parameters the source of the required values and the change over can be configured. 0805 C.REQ.VAL 1 0805 Configuration Required Value 1...
  • Page 82 0815 SW REQ. VAL 0815 Switching between required value 1 and 2 Setpoint 1 Possible settings: - Setpoint 1 - Setpoint 2 - Switch Dig 1 - Switch Dig 2 - Switch Dig 3 - Switch Dig 4 Setpoint 1: Only Required value 1 is active (No switching possible) Setpoint 2: Only Required value 2 is active (No switching possible)
  • Page 83 0830 ACTUAT.FRQ 1 0830 Required frequency 1 for Actuator (digital) XX.X Hz Possible settings: 0.0 – MAX. FREQ. [0245] ▲ ▼ Set the frequency with either The selected frequency in this parameter is only active in the Actuator mode if Parameter C.REQ.VAL.1 [0805] is set to digital, and Parameter SW REQ.VAL [0815] is set to Setpoint 1 or the ACTUATOR FREQUENCY 1 is selected via digital input.

  • Page 84: 0900 Submenu Offset

    0900 SUBMENU 0900 OFFSET All analogue inputs can also be used to connect an Offset-signal used for the recalculation of the required value. 0905 OFFS. INPUT 0905 Selection of the Offset Input Possible settings: analog U1 0-10V analog U2 0-10V analog I1 0-20mA / 4-20mA analog I2 0-20mA / 4-20mA Offset deactivated analog U 1...
  • Page 85 0920 INTENSITY 1 0920 Only in combination with Level 1! +XX.X % Possible settings: -500.0% up to +500.0% of the sensor range Intensity of the 1 Offset of the required value at the zero point of the second analogue input. 0925 INTENSITY 2 0925 Only in combination with Level 2!
  • Page 86 Example for using the Offset function: 20mA ≙ 10 bar SENSOR RANGE: REQUIRED VALUE: 5 bar LEVEL 1: 30% of the Offset signal LEVEL 2: 80% of the Offset signal -100% ≙ -10bar (refer to the sensor range) = -5bar INTENSITY 1: +20% ≙...

  • Page 87: 1000 Submenu Testrun

    1000 SUBMENU 1000 TEST RUN 1005 TEST RUN 1005 Automatic test run after 100 hrs Possible settings: OFF – 100 h. The Automatic Test Run starts up the pump at the set time after the last stop to prevent the pump from blocking. Test Run Time, Frequency and Boost could be chosen in the parameters below.

  • Page 88: 1100 Submenu Setups

    1100 SUBMENU 1100 SETUPS 1120 PASSWORD 2 1120 Enter password by pressing ▲ ▼ 0000 The below mentioned parameters are just available after entering the password! For more information, contact your distributor! 1125 CLR ERRORS Clear Error Memory of selected unit 1125 UNIT X or ALL units (Cascade Serial)

  • Page 89: 1200 Submenu Rs485-Interface

    1200 SUBMENU 1200 RS485-INTERFACE How to connect the RS485-Interface correctly, see chapter 9.4.4 Control Unit User Interface The following 3 Parameters are necessary for communication between the HYDROVAR and an external device (e.g. PLC) via standardized Modbus-protocol. Set desired Address, Baudrate and Format according the system requirements.

  • Page 90: Failure Messages

    11 Failure Messages If the HYDROVAR is being stopped by an error (warning), both the HYDROVAR and the motor remains under voltage. So before any work can be carried out on the electrical or mechanical part of the system, the HYDROVAR must be disconnected from power supply. It has to be differed between warnings and errors: •...

  • Page 91: Basic Inverter

    11.1 Basic Inverter If the HYDROVAR is used as Basic Inverter (consists only of the Power unit), the following errors are indicated by a failure code: Red Led Code Error Probability cause 1 blink UNDERVOLTAGE DC voltage of the HYDROVAR too low OVERCURRENT or Current rise at the output too high or 2 blinks...

  • Page 92: Master / Single Inverter

    11.2 Master / Single Inverter Each error is shown on the display in plain text and saved in the Error Memory including date and time when the failure occurred. The errors can be reset automatically, depending on the setting in parameter ERROR-RESET [0615], or manually after the cause has been remedied in different ways: o cutting the power supply for >...
  • Page 93 Error Probability cause Solution • check Parameter RAMP 1/2 [0215/0220] (too short) and BOOST [0265] (too low) • check motor connection (star/delta) and cable • Pump blocked OVERLOAD Power limit of the HYDROVAR • Motor turns in the wrong direction ERROR 12 is exceeded before running...
  • Page 94 o cutting off the power supply for >60 seconds o manual reset by closing External ON/OFF (Terminals X3/7-8) Reset: o manual reset by pressing ◄ ► simultaneously for about 5 seconds o Auto-reset possible if ERROR-RESET [0615] is set to ON •...

  • Page 95: Internal Errors

    • check external analogue signal on Current signal input of required SETPOINT 2 I<4mA terminals X3/22-23 values is active, but no signal • check configuration of the required 4-20mA is connected SETPOINT 2 I<4mA values in Submenu REQUIRED WARNING (20 sec.)-> ERROR ERROR 26 VALUES [0800] o cutting off the power supply for >60 seconds...
  • Page 96 Examples: Booster unit Problem: no stop of the HYDROVAR Parts to check Solution • existing demand • check pipes and valves • non return valve is not closed • change non return valve • pre charge pressure in the pressure tank •...

  • Page 97: Maintenance

    Look at the pump- and motor-instruction. Please take your personal protection equipment. For further information, please ask your distributor! “ITT” and „Engineered for life“ are registered trademarks of ITT Industries, Inc. All other trademarks or registered trademarks are property of their respective owners.
