Summary of Contents for ITT Dia-Flo

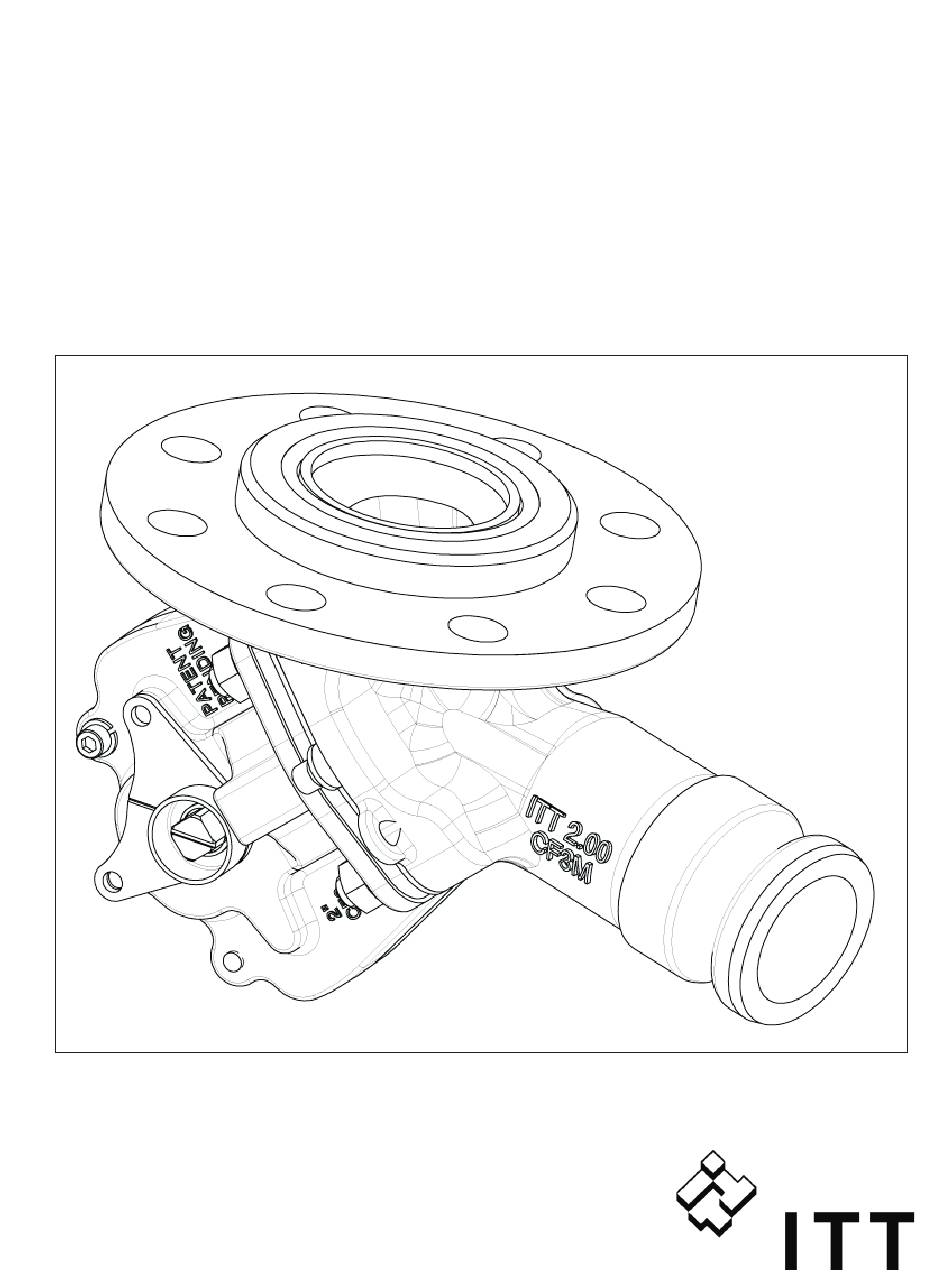

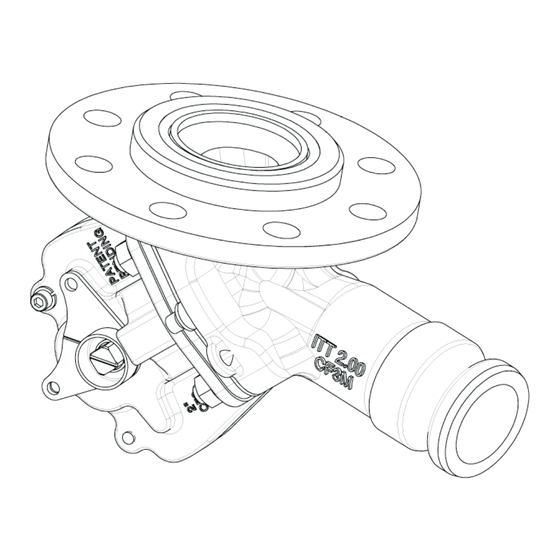

- Page 1 ® Dia-Flo Instruction Manual Paint Tote Valve, Quarter Turn...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE SECTION 0.0 GENERAL INFORMATION 1.0 INSTALLATION 2.0 OPERATION 3.0 MAINTENANCE 4.0 ACCESSORIES Figure 1 Tote Valve Assembly Figure 2 Tote Valve Dimensional Data DV-1/4 Turn IOM - 11/06... -
Page 3: General Information
0.0 GENERAL INFORMATION OPERATOR The latest edition of this manual can be found on the website listed within this manual. If hot or cold components of the valves are a source of danger, these components must be WARNING secured against contact by operating company. Contact guard for moving parts may not be The safety precautions in these operating instructions are specially marked with the... -
Page 4: Installation
0.2 TRANSPORT AND STORAGE Storage over a longer period may necessitate WARNING individual moisture proof packing. This is dependent The universally recognized technical standards on the local conditions. and the regulations regarding prevention of accidents must be observed at all times when 0.2.4 DISPOSAL, RECYCLE OR RETURN handling. -
Page 5: Operation
1.2 TOTE VALVE TO TOTE TANK INSTALLATION This section to be followed when assembling a 1.2.3 Position the tote valve over the studs mounted in the tote valve to a tote tank. tote tank’s flange. Make sure that the valve’s outlet port does not extend beyond the footprint of the tote tank. -
Page 6: Maintenance
2.3 The valve position is visible based on the position 2.4 The valve shall lock itself in the open or closed of the groove at the end of the input shaft and lock position. If a secondary lock is desired in the open or plate as shown below. - Page 7 3.4 LEAKAGE THRU THE OUTLET WHEN CLOSED If leakage is occurring thru the body’s outlet when the bonnet assembly is in the closed position the diaphragm may be worn. The diaphragm must be replaced per Section 3.6. 3.5 EXCESSIVE TORQUE TO ACTUATE VALVE If more than 60 ft-lbs (81.3 N-m) of torque is required CAUTION to actuate the valve verify that the bonnet nuts are...
-
Page 8: Accessories
3.8 BONNET ASSEMBLY - DISASSEMBLY / ASSEMBLY PROCEDURE Bonnet assembly is not intended to be disassembled nor assembled in the field. Contact manufacturer at the address listed on the back page for specific instructions. 4.0 ACCESSORIES 4.1 NO ACCESSORIES ARE AVAILABLE FOR THIS PRODUCT. DV-1/4 Turn IOM - 11/06... - Page 9 TOTE VALVE ASSEMBLY Figure 1: Item Description Material Quantity Item Description Material Quantity Stainless Lock Plate Stainless Body Steel Steel Stainless Washer, Spring Stainless Bonnet Half Steel Lock Steel Bronze Tube Nut Brass Bushing, Flanged Bronze Nut, Hex Stainless Bushing, Sleeve Steel Copper Infitrated...
- Page 10 TOTE VALVE DIMENSIONAL DATA Figure 2: (Dimensions shown below are in inches) DV-1/4 Turn IOM - 11/06...
- Page 11 THIS MANUAL PROVIDES INSTRUCTIONS FOR THE DIA-FLO® 1/4-TURN TOTE VALVE. IF ADDITIONAL INFORMATION IS REQUIRED, PLEASE CONTACT: ITT INDUSTRIAL & BIOPHARM GROUP 33 CENTERVILLE ROAD P.O. BOX 6164 LANCASTER , PA 17603-2064 USA OR CALL: (800) 366-1111 (717) 509-2200 FAX: (717) 509-2336 WEBSITE: WWW.ENGVALVES.COM...
