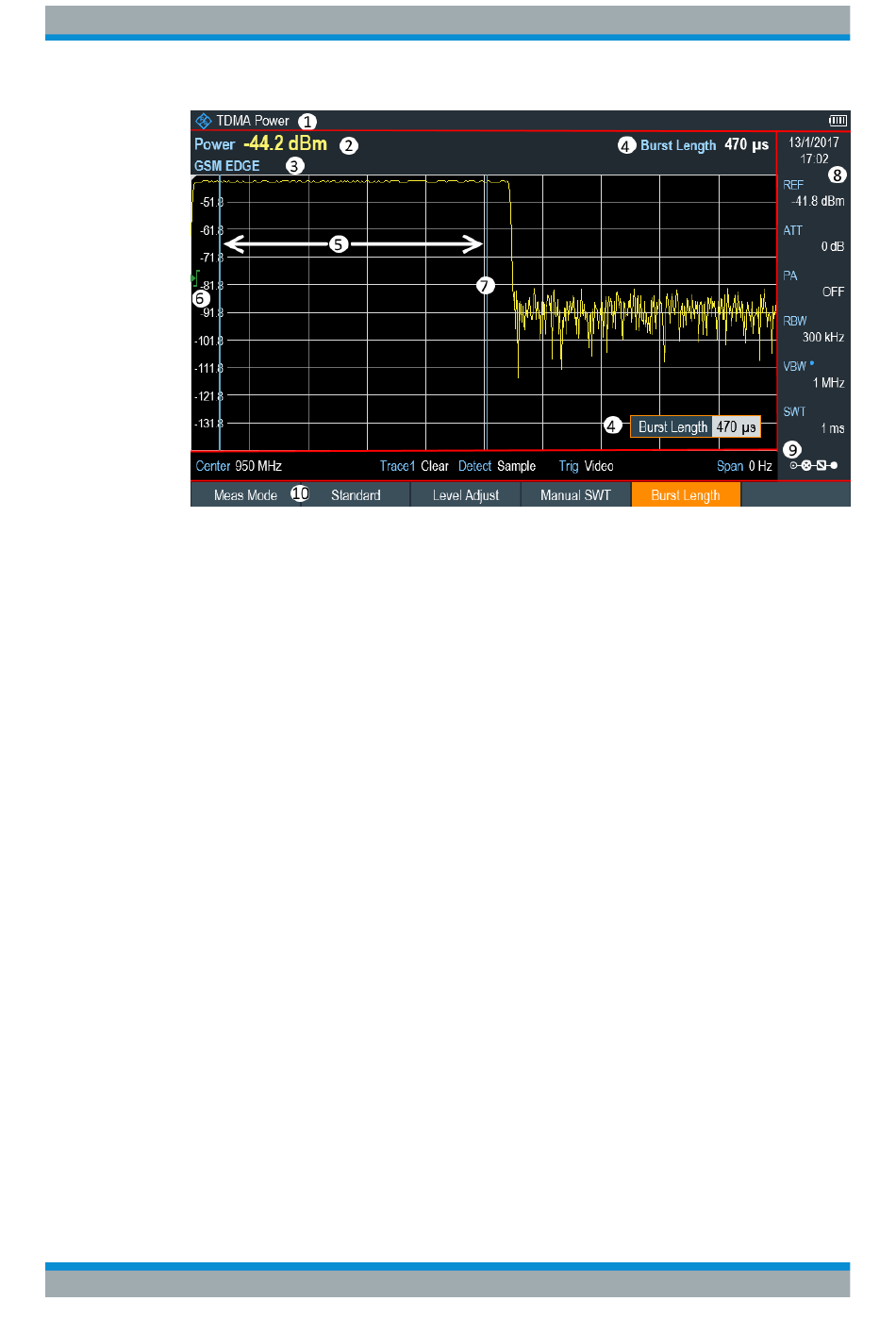

Figure 6-3: Screen layout for TDMA power measurements
1 = TDMA power measurements mode
2 = TDMA power
3 = Measurement standard
4 = Measurement time
5 = Measurement limits
6 = Trigger level
7 = Trigger delay
8 = Parameter view
9 = Configuration overview
10 = TDMA power measurement softkey
6.1.4.1

Selecting a Standard

For more information on selecting a standard, see
dard",
6.1.4.2

Setting the Burst Length

The burst length is the measurement time that the R&S Spectrum Rider used to per-
form the TDMA power measurement. The burst length can be equal or less than the
sweep time.
1. Press the [MEAS] key.
2. Select the "Burst Length" softkey.
The R&S Spectrum Rider opens an input field to define the burst length.
3. Enter the length of the burst you need.
The R&S Spectrum Rider performs the measurement over the time you have
entered.
User Manual 1321.1011.02 ─ 06.00
on page 122.
Spectrum Analyzer Mode
Performing Spectrum Measurements
Chapter 6.1.3.1, "Selecting a Stan-
