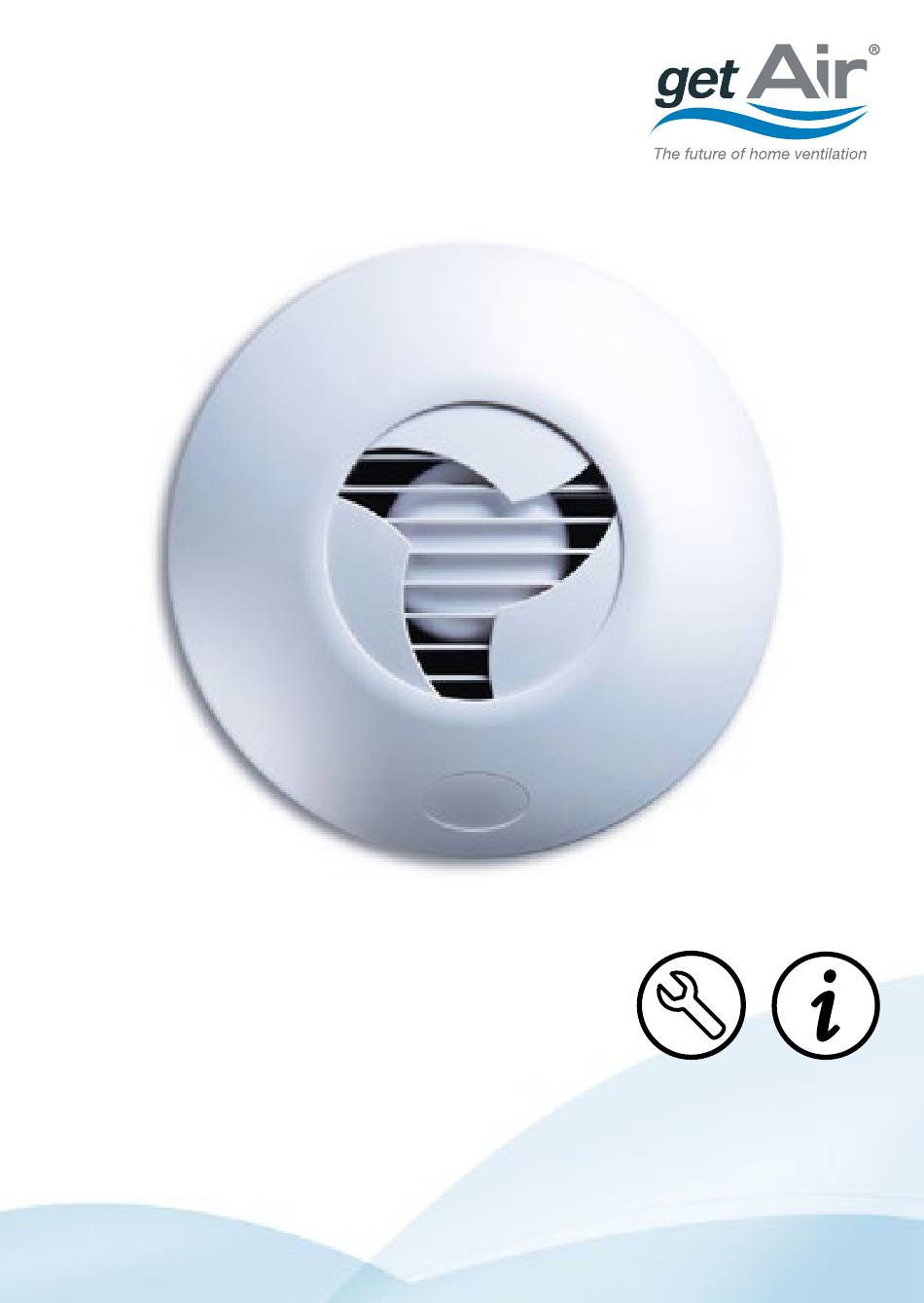

- Page 1 SmartFan X Installation and operating instructions v 1.1_08/2016...
- Page 2 All information contained in these documents is the property of getAir GmbH & Co. KG. Any publishing thereof, whether in part or in whole, requires the written consent of getAir GmbH & Co. KG. Copying the instructions within the same company for the purpose of evaluating the product or for other product-related uses is permitted and not subject to prior approval.
-
Page 3: Table Of Contents
Content 1 General remarks ..........................4 1.1 Use instructions ........................4 1.2 Safety information ........................4 2 Installation preparations .........................6 2.1 Contents SmartFan X ......................6 2.2 Dimensions ..........................7 2.3 Module overview ........................7 2.4 Positioning ..........................8 3 Electrical installation ........................9 3.1 Cabling and wiring ........................9 3.2 Connecting a module ......................9... -
Page 4: General Remarks
Use instructions The SmartFan X is an exhaust fan for installation in the wall or ceiling. For each fan, a hole has to be drilled in the wall or ceiling, through which a connection to a ventilation duct leading outwards can be established. - Page 5 • Please ensure that a suitable condensate outlet is installed. • The SmartFan X may only be used with ventilation ducts up to 4 metres in length and is not suitable for venting shafts. • Pay attention to the safety instructions when installing the fan.
-
Page 6: Installation Preparations
Installation preparations Before starting installation, please check that all components are present, as otherwise it will not be possible to complete the installation. Contents SmartFan X Article name Item Content Number SmartFan X Sensor module (dependent on the selected version) -
Page 7: Dimensions
Dimensions 197 mm 108 mm 68 mm 99 mm 40 mm Module overview The control modules are packaged separately and need to be assembled. Module Timer module Humidity module A, B Infrared timer module A, B Infrared humidity module 2 min. delayed- actiontimer module 2 - 45 minutes passive infrared... -
Page 8: Positioning
Zone 0 Zone 2 The SmartFan X is designed for installation in a wall or ceiling. It is only to be used in Installation Zone 3. Make sure there is sufficient free space around the fan. Ensure that airflow in the vicinity of the SmartFan X is not blocked. -
Page 9: Electrical Installation
Electrical installation All electrical work must be performed by a qualified electrician. Cabling and wiring Wiring a SmartFan X with a remote control module [A] Wiring a SmartFan X without a remote control module [B] Connecting a module Remove the cover by unscrewing the screw at the bottom end of the cover (1). - Page 10 Holding clip (5) Notch (1) Lustre terminal (4) Terminal (2) Connector pins (3) Lift the lustre terminal (4) out of the fan casing and press the two connector pins (3) at one end of the module into the lustre terminal (4). Tighten with a suitable screwdriver. Make sure that the connector wires are underneath the holding clip (5).
-
Page 11: Programming The Modules
Replace the front cover. As the SmartFan X is a double-insulated electrical appliance (Protection Class II), the earth conductor is not used. The T-connector may only be connected at the same voltage as the I-connector. -
Page 12: Installation
1 - 3° Inside When installing the SmartFan X in a wall, a hole has to be core-drilled for the mounting tube with an outward gradient of 1-3%, allowing any condensate to drain off. When installing the SmartFan X in a ceiling, a condensate trap must be used to prevent any condensate from flowing back. -
Page 13: Cabling
When using a foam sealant, make sure that it is not so expandable that it deforms the mounting tube. Cabling Cable connection top left Inside Lay the power cable to the hole in the wall/ceiling for the mounting tube. To connect the cable without problems, it should be laid up to the top left (10 o‘clock position) side of the hole. -
Page 14: Installing The Fan
Installing the fan Cable connection in the casing Inside Align the fan so that it sits straight, with both screw-holes in a horizontal line. The fan can be fixed to the wall/ceiling using the supplied rawlplugs and screws. Carry out the cabling as described (see Electrical Installation). -
Page 15: Installing The Outside Grille
Installing the outside grille Outside Install the outside grille on the outside wall, using the supplied rawlplugs and screws. Make sure that the grille sits straight and that the louvres are shut when the fan is not running. -
Page 16: Operating The System
Operating the system When the SmartFan X is switched on, it takes about 45 seconds before the iris diaphragm opens. When it is switched off, the motor stops and, about 25 seconds later, the iris diaphragm shuts. The reaction speed of the iris diaphragm is due to technical reasons and completely normal. -
Page 17: Troubleshooting
Troubleshooting Should the SmartFan X not work properly after taking the following measures, please contact the installer. Fault What is to be done The device is not functioning Check that the device has been properly wired. Also at all. check the fuse. Check that the module is functioning. -
Page 18: Maintenance
Maintenance Always disconnect the fan from the mains before removing the cover. To ensure the device‘s long-term functioning and to maintain the warranty, we recommend cleaning the fan once a year. Accumulations of dirt on the fan wheel and the inside of the fan will cause the motor to overheat. -
Page 19: Technical Data
Technical data Airflow volume [m³/h] Sound pressure level dB (A) Power consumption (W) 13.8 Phase current (A) 0.06 Input voltage (V) 230 AC / 50 Hz Type of protection IPX4 Air intake free of aggressive gases, dust and oil Permissible operating temperature [°C] 0 ... -
Page 20: 10 Warranty
10.1 Warranty conditions getAir GmbH & Co. provides a 24-month warranty on the SmartFan X, as of the date of purchase Warranty claims apply solely to material and/or construction faults which occur during the warranty period. Under the warranty conditions, repairs may only be carried out with getAir‘s prior written consent. - Page 21 10.4 Documentation The above documentation describes the functionality of the standard configuration. To maintain clarity, we are unable to take account of every possible installation, operating or maintenance configuration. The diagrams in this documentation may deviate slightly from the design of the product you have purchased.
-
Page 22: 11 Attachment
11 Attachment 11.1 Notes...
