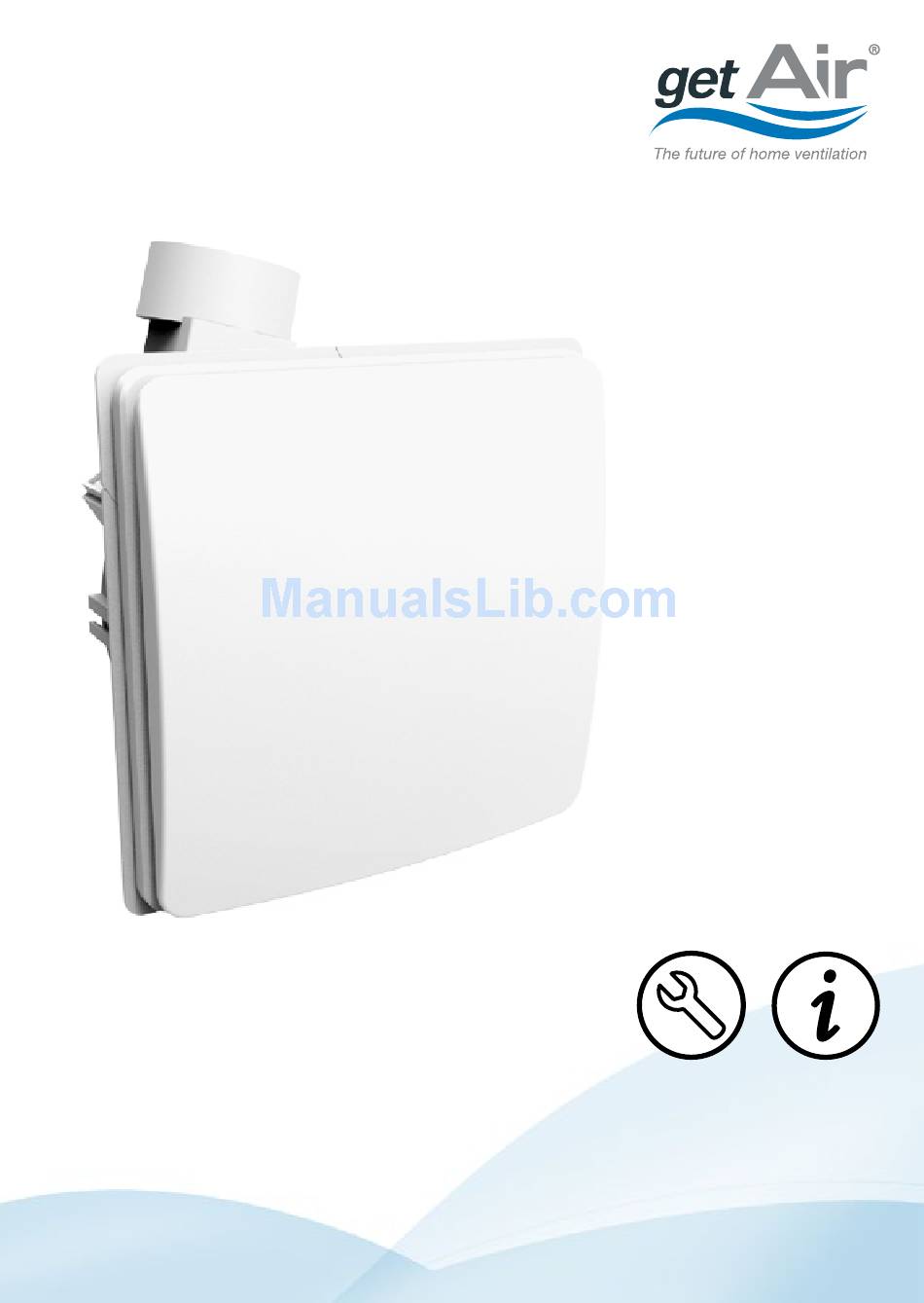

SmartFan XR
Installation and operating instructions
v 1.0_03/2017
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartFan XR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for getAir SmartFan XR

Summary of Contents for getAir SmartFan XR

  • Page 1 SmartFan XR Installation and operating instructions v 1.0_03/2017...
  • Page 2 All information contained in these documents is the property of getAir GmbH & Co. KG. Any publishing thereof, whether in part or in whole, requires the written consent of getAir GmbH & Co. KG. Copying the instructions within the same company for the purpose of evaluating the product or for other product-related uses is permitted and not subject to prior approval.

  • Page 3: Table Of Contents

    Content 1 General remarks ..........................4 1.1 Usage .............................4 1.2 Safety information ........................4 1.3 Installation prerequisites ......................5 1.4 Rated airflow volumes pursuant to DIN 18017 Part 3 ............5 1.5 Air inflows and outflows ......................6 1.6 Connection to the building‘s piping system .................6 1.7 Piping system ..........................6 1.8 Plan for dimensioning the riser pipes..................7 2 Installation preparations ........................9...

  • Page 4: General Remarks

    1 General remarks 1.1 Usage The units are designed for ventilating living rooms, wetrooms and kitchens pursuant to DIN 18017 Part 3. Their use is limited to the described use cases and only in association with the recommended components listed in this document. Other usages are not permitted. The system is unsuitable for extracting smoke or drying buildings, for rooms containing aggressive and/or caustic gases or extreme levels of dust.

  • Page 5: Installation Prerequisites

    The following list contains descriptions of the symbols and terms used in these instructions: This hazard symbol warns about the Caution danger of injury. Hazard symbol This hazard symbol warns about the danger Electricity of electrocution. Please This warning symbol indicates important Warning symbol note information...

  • Page 6: Air Inflows And Outflows

    1.5 Air inflows and outflows Every interior room needing to be ventilated must have an unobstructed opening with a section of 150 cm² through which air can flow. The exhaust should be close to the ceiling, and lead into the riser pipe.

  • Page 7: Plan For Dimensioning The Riser Pipes

    1.8 Plan for dimensioning the riser pipes Preconditions: 2.75 m ceiling height, 1.50 m roof exit Flush-mounted units 2 units per floor 1 unit per floor Airflow volume 60 m³/h Airflow volume 60 m³/h Pressure difference 118 Pa Pressure difference 118 Pa 100 125 140 160 180 200 225 250 280 100 125 140 160 180 200 225 250 Nominal pipe diameter...
  • Page 8 Surface-mounted units 2 units per floor 1 unit per floor Airflow volume 60 m³/h Airflow volume 60 m³/h Pressure difference 88 Pa Pressure difference 88 Pa 100 125 140 160 180 200 225 250 280 100 125 140 160 180 200 225 250 Nominal pipe diameter Nominal pipe diameter 2 units per floor...

  • Page 9: Installation Preparations

    2 Installation preparations 2.1 Contents please check the contents of the supplied goods immediately after delivery by the carrier for any damage. should you find any damage, please contact the carrier or your dealer. reporting damage too late may lead to you being unable to make a claim.

  • Page 10: Dimensions

    2.2 Dimensions Flush-mounting cases Fan element Fan cover...

  • Page 11: Versions With Fire Protection According To Din 18017 Part 3

    2.3 Versions with fire protection according to DIN 18017 Part 3 Flush-mounted wall installation without fire Flush-mounted wall installation with fire protection protection Fixing screw Trigger console Shut-off element Flush-mounted ceiling installation without fire Flush-mounted ceiling installation with fire protection protection...

  • Page 12: Electrical Installation

    3 Electrical installation the wiring must be carried out by an authorised electrician. during all installation work, the system must be disconnected from the mains. 3.1 Electrical cabling The units are IPX5-rated (water jet protected) and can thus be installed in wetrooms. They are rated as a Class II appliance and comply with Directive 89/336/EEC.

  • Page 13: Control Module Wiring Diagrams

    The second mains connection is for locally-connected partial load devices. The wiring diagrams are to be found on each individual control module. Time lags and intervals are either set to stan- dard settings or can be individually set. Multi-stage fans are connected via double-pole switches. 3.3 Control module wiring diagrams devices or installations operated in conjunction with the fan can lead to malfunctioning.
  • Page 14 Single room installation Mains 230 V/ 50 Hz IP X5 CE Fan terminal block 230 V/AC 50Hz 0,15 A Room 1 C M N Double-pole Motor switch Electrical connection for types: 60 P 60 P VN 100 P VNE 100 P Electrical connection for types: VNE 60 P...
  • Page 15 Single room installation Mains 230 V/ 50 Hz IP X5 CE Fan terminal block 230 V/AC 50Hz 0,15 A Room 1 C M N Double- Single- Motor pole switch pole switch Electrical connection for types: VNE 40 / 60 HS P Electrical connection Light fitting for types:...
  • Page 16 Second room installation Mains 230 V/ 50 Hz IP X5 CE Fan terminal block 230 V/AC 50Hz 0,15 A Room 1 Room 2 C M N Double-pole Double-pole switch switch Motor Full load Full load Electrical connection for types: G 60 G 100 Fitting light Electrical connection...
  • Page 17 Second room installation Mains 230 V/ 50 Hz IP X5 CE Fan terminal block 230 V/AC 50Hz 0,15 A Room 1 Room 2 C M N Double-pole Single-pole Double-pole switch switch switch Motor Full load Base load Full load Electrical connection for types: 30 / 60 30 / 60 Light fitting...
  • Page 18 Second room installation Mains 230 V/ 50 Hz IP X5 CE Fan terminal block 230 V/AC 50Hz 0,15 A Room 1 Room 2 C M N Double-pole Single-pole Double-pole switch switch switch Motor Full load Base load Full load Electrical connection for types: G 30 / 60 G 30 / 100 Light fitting...

  • Page 19: Installation

    4 Installation please read the instructions carefully before beginning the installation. The units can be installed and operated in any position, but the exhaust pipe must not face down- wards. Flush-mounted units without fire protection are not suitable for installing in ceilings. When installing units with fire protection, the exhaust pipe must face upwards.

  • Page 20: Installation Without The Mounting Clamp

    make sure the screws do not penetrate the steel exhaust pipe! Now attach the mounting clamp and the casing to the ceiling or wall using the supplied screw anchors. Wall installation Ceiling installation 25 mm 25 mm Push the alu-flex connector pipe onto the riser junction and seal with textile or cold-shrink tape.

  • Page 21: Fire Protection Outside Duct Walls With A Shut-Off Device

    4.1.3 Fire protection outside duct walls with a shut-off device For units requiring fire protection, use the Type BA fire protection device. The shut-off device is mounted on the fire wall. To install the unit in a drylined ceiling, a mounting clamp must be used (see Installation using a mounting clamp).

  • Page 22: Second Room Installation

    4.1.5 Second room installation Use a flush-mounting case with a connection for a second room. Position it in relation to the second room to achieve a direct connection. Connect the connection for a second room to the side connector of the flush-mounting case using alu-flex pipe and seal properly using textile or cold-shrink tape.
  • Page 23 Turn off the power supply. Remove the plastering cover from the flush-mounting case. Check the correct installation of the casing and cables [A]. Remove any dirt (plaster, cement, etc.). Remove the packaging from the fan element. Hang in the fan element through inserting the fan exhaust head into the guide slot in the bracket holding the steel exhaust pipe.

  • Page 24: Installing The Surface-Mounted Fan

    4.3 Installing the surface-mounted fan only remove the fan element from the carton immediately before installing it to prevent damage and stop (transport or building site) dirt getting into it. in the case of the fan element being dropped or otherwise damaged, stop the installation work, as there can now be no guarantee that the unit will function properly.
  • Page 25 The connection to the 8-pole plug is done in line with the wiring diagram [B] on each control module (see the control module wiring diagrams). Then plug in the control module and fix with the two supplied screws [C]. Exhaust opening Exhaust opening Central fixing screw Exhaust opening...

  • Page 26: Maintenance

    5 Maintenance 5.1 Maintenance intervals Component Interval Action Fan cover Once every • Wipe the surface with a damp cloth. three months Filter unit Once every • Check whether the fan unit is dirty. three months • Replace if dirty. BU fire protection device Once every six •...

  • Page 27: Filter Maintenance

    5.2.1 Filter maintenance the filter unit must be checked and replaced once every three months, as a dirty/clogged up filter can cause performance degradation. a dirty/ clogged-up filter makes the unit louder and can cause overheating, eventually leading to the system not functioning at all. Disconnect the unit from the mains.

  • Page 28: Maintenance Of The Type Ba Shut-Off Device

    To replace the plate, slide it into the opening sideways and press it in, exerting slight pressure on the upper half. The remaining components are replaced in the same order as they have been removed. 5.2.3 Maintenance of the Type BA shut-off device See Maintenance of the Type BU shut-off device Disconnect the unit from the mains.

  • Page 29: Technical Data

    7 Technical data 7.1 Flush-mounted units Airflow volume [m³/h] Sound pressure level [dB(A)] Energy consumption [W] 19.5 24.4 Electric current (A) 0.03 0.08 Pressure difference (Pa) Input voltage (V) 230 AC / 50 Hz Type of protection IPX5 Air intake free of aggressive gases, dust and oil Permissible operating temperature [°C] 0 ...
  • Page 30 7.2 Surface-mounted units Airflow volume [m³/h] Sound pressure level [dB(A)] Energy consumption [W] Electric current (A) 0,13 0,17 Pressure difference (Pa) Input voltage (V) 230 AC / 50 Hz Type of protection IPX5 Air intake free of aggressive gases, dust and oil Permissible operating temperature [°C] 0 ...

  • Page 31: Ec Conformity Declaration

    7.3 Performance curve A 90 Kitchen / Second room A 60 Ceiling installation Wall installation 100 110 Airflow volume (m³/h) Airflow volume (m³/h) Flush-mounted fan Surface-mounted fan 8 EC Conformity declaration The fan systems, consisting of a universal fan unit as well as surface-mounted fans and control modules meet the requirements and specifications of §...

  • Page 32: Warranty

    10 Warranty A two-year warranty is given on the fan unit. The warranty will expire in the following cases: • Damage caused by the incorrect / improper handling and use or through non-compliance with the installation and operating instructions. • The use of components or accessories not recommended or approved by the manufacturer.

  • Page 34: Attachment

    11 Attachment 11.1 Notes...
