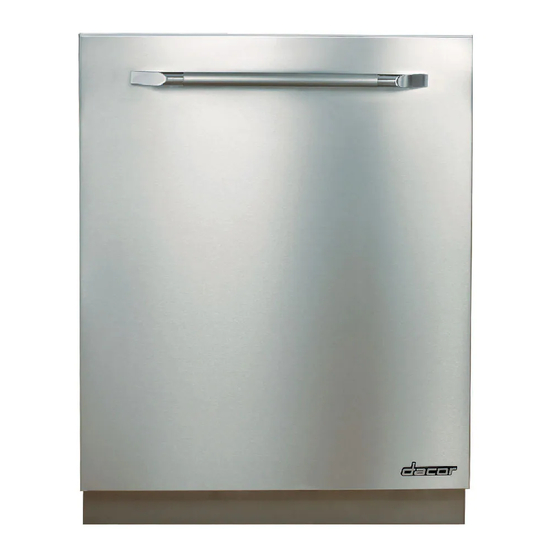

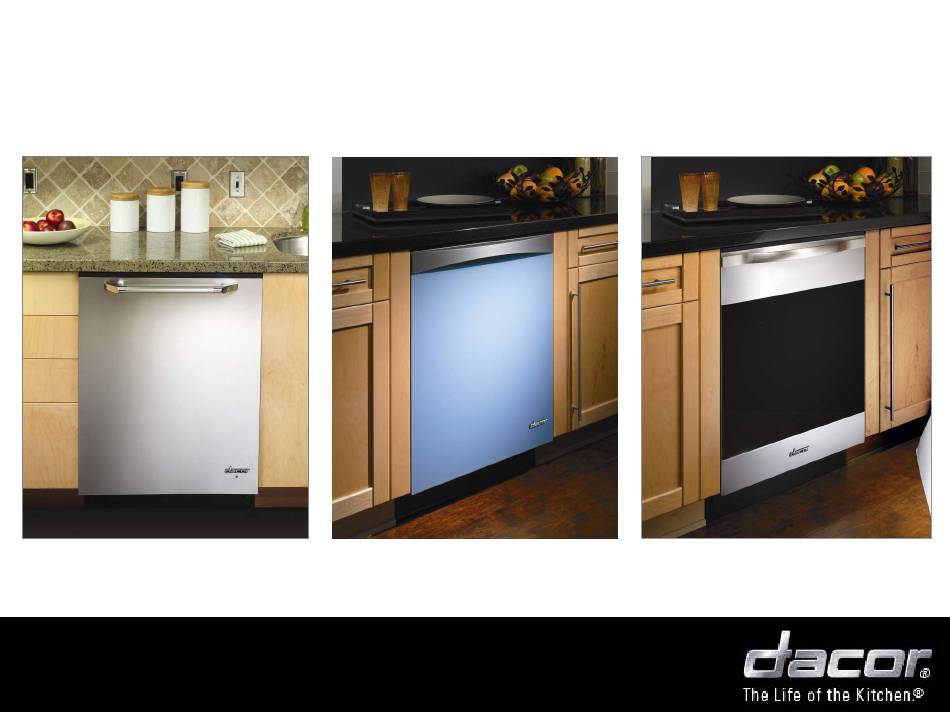

- Page 1 ED,MD, PD 24 Dishwasher Intro...
- Page 2 AGENDA Installation Hands On Testing of Product • Diagnostics Feature and Benefits • Fail Codes Dishwasher Sub Systems Tear Down Of Product • Tub & Structure • Safety • Door Assembly • Interior • Upper & Lower Racks • Door & Cabinet •...
-
Page 3: Dishwasher Installation
Systems Dishwasher Installation Utility Requirements... - Page 4 Systems Dishwasher Installation...
- Page 5 Systems Dishwasher Installation...
-
Page 6: Features And Benefits
Features and Benefits • In-line water heater • New 24” Dishwasher models: – Epicure® and Integrated • 158°F Sani-Rinse – Millennia® horizontal and • 14 Place settings vertical • Hidden touch control electronic – Preference®: all 6 colors panel • Superior cleanability with AHAM •... - Page 7 Systems Dishwasher Sub Systems • Tub & Structure • Door Assembly • Upper & Lower Racks • Wash • Filtration • Water & Fill • Cycle & Option...
- Page 8 Tub & Structure Side Mounting Cabinet Fixing Tabs...
- Page 9 Tub & Structure LATCH STRIKE • Adjust strike position by loosening screw • Push the strike in to stop tub gasket leaks • Pull the strike out to to lower door closing force • Run water test to ensure no tub leaks...
-
Page 10: Door Assembly
Door Door Assembly Assy. Control Board Hinge Assembly Outer Door Panel... - Page 11 Door Assy. Door Assembly Latch Dispenser Dispenser Inner Door Latch...
- Page 12 Door Hinge & Tension Cable hook Attachment point Front of Dishwasher Two Wheel Pulley System Spring Tension Adjustment Points...
- Page 13 Upper Rack Assembly Racks Rear basket seal upper and lower position Locking tabs Easy Lift Mechanism Upper Spray Arm...
- Page 14 Lower Rack Assembly Racks...
- Page 15 WASH SYSTEM Upper Spray Arm Sprayer, upper tub Lower Spray Arm Filtration...
- Page 16 Sump / Filter System The in-line filter system is composed of three layers. An inner basket, a fine screw down tube and an upper mesh strainer. This system will need to be cleaned regularly to maintain the utmost efficiency. Drain Filter Wash Filter...
- Page 17 Water Temperature Control The water temperature is controlled at set points, shown in the following table for different wash cycles. MODE PROCESS NORMAL HEAVY CRYSTAL RINSE SANI Pre Wash B 124° F WASH 133° F 158° F 104° F CYCLE RINSE 155°...
- Page 18 Water Fill System Water Fill is primarily sensor Fill Quantities: dependent. When filling the • Pre-wash 590 pulses / 0.75 Gal control board will allow 590 or 905 pulses per fill depending • Purge 315 pulses / 0.4 Gal on that fill process •...
- Page 19 Memorize Cycle and Option The control system saves and remembers the last cycle and options at the conclusion of the cycle. This Information will be used as a default for the next user interface. Press the Start/Stop Key a first time to recall the last cycle and turn on the previous cycle LEDs.
-
Page 20: Dishwasher Components
Systems Dishwasher Components • Control Board • WPS • Wash Pump • Drain Pump • Flow Meter • Water Valve • Heater • Pressure Switch... -
Page 21: Control Board
Control Board Electrical Located attached to the inside of the outer door Each terminal is labeled with the component they control... - Page 22 Wash Process Sensor TURBIDITY (SOIL) / TEMPERATURE SENSOR Sensors controls wash cycle & heating time based on temperature & turbidity of water The advanced control algorithm using the information from the WPS sensor increases the cycle length. The soil level of the water will be assessed and decisions will be made to determine the optimal wash and rinse cycle length and number of purge sequence.
- Page 23 Wash Process Sensor TURBIDITY (SOIL) / TEMPERATURE SENSOR Sensors controls wash cycle & heating time based on temperature & turbidity of water When Temperature or Turbidity sensors fail, the system will default to time schedule and a failure code will be logged, “F4”, in the Diagnostic Test Mode Only, indicating the sensor (WPS) failure.
-
Page 24: Circulation Pump
Circulation Pump Located on the base pan centre rear. Held in placed by attached hoses. This view shows the 24 inch twist off circulation pump. This unit can easily be removed, cleaned, cleared and put back into place... -
Page 25: Drain Pump
Drain Pump Located on base pan in the front right of centre Resistance 26 Ω... -
Page 26: Flow Meter
Flow Meter Located on the left side following the inlet water valve • Determines level of fill The flow meter will not allow more • than 80 seconds fill time. If greater than 80 seconds fill time “F2” will be displayed After 30 seconds of fill, the flow •... -
Page 27: Inlet Water Valve
Inlet Water Valve Screwed on the left frame behind lower front panel Flowrate Coil Resistance 1126 Ω 1.08 GPM... -
Page 28: Inline Heater
Inline Heater 1200W heater wrapped around a stainless steel tube While checking the heater, do not apply power to it until the tub has filled with water and the motor is operating Heater can only be energized during a wash cycle, while the pump is running. - Page 29 Inline Heater 1200W heater wrapped around a stainless steel tube The heater ON and OFF time is primarily a function of the temperature sensor located on the WPS. Time will be used as a secondary condition for Heater ON/OFF time. If a WPS fault is present, Heater regulation is based on time only.
-
Page 30: Pressure Switch Assembly
Pressure Switch Assembly Located mounted to the front of the sump to the upper left of the WPS Senses the absents of water during the drain cycle. Produces the drain failure code F-1 The drain will be primarily time dependent then pressure dependent. - Page 31 Rear View / Mechanical Area Water Valve Flow meter Heater Start Capacitor Motor Circ Pump Assembly...
- Page 32 Front View / Mechanical Area Cover Removed Junction Box / Water Valve Motor Circ Pump Assembly Main Power Pressure Switch WPS Sensor Drain Pump Door Springs, Adjustable...
- Page 33 Service & Diagnostic Test • Diagnostic Test • Fail Codes Intro...
-
Page 34: Diagnostic Test
Diagnostic Test Enter the Diagnostic test mode: First: Entering the secure mode by pressing the SECURE key for three (3) seconds. Then press the SECURE key again for three (3) seconds to exit the Intro secure mode. Second: Press DELAY and SANI RINSE keys simultaneously to start the Diagnostic test mode. - Page 35 Diagnostic Test All LEDs on the dishwasher will turn ON for about 15 seconds then turn OFF. • • Temperature measurement is taken one (1) minute after the circulation Pump is ON and immediately after the Heater turns OFF. • At the end of the test the In Process LED will be ON indicating that the Diagnostic test passed. •...
- Page 36 F-1 Drain Failure Cause: Pressure switch is in the closed position after two full drain procedures. Intro Effect: Three long beeps. F-1 will be displayed only during the diagnostic mode. Solution: Press cancel key twice to reset this fault. Possible failure to the pressure switch, drain pump, or restricted in the drain hose.
- Page 37 F-2 Over Fill Condition Cause: Inlet valve does not close. Effect: Three long beeps. F-2 will be displayed to the user and in Intro diagnostic mode. Drain pump will be on until door is opened. Solution: Press cancel key twice to reset this fault. Possible failure to the inlet water valve or control board.
- Page 38 F-3 Low Inlet Water Pressure Cause: Low inlet water pressure. Effect: Three long beeps. F-3 will be displayed to the user and in Intro diagnostic mode. Solution: Press cancel key twice to reset this fault. Possible failure to flow meter, Inlet water valve, or restriction in main water feed.
- Page 39 F-4 Wash Process Sensor (WPS) Failure Cause: No response signal from the WPS. Effect: Wash cycle will go into a default time table. F-4 will be Intro displayed during the Diagnostic Only. Solution: Possible failure to WPS sensor or related wiring.
-
Page 40: Heating Failure
F-9 Heating Failure Cause: Heater Failure. Effect: Temperature does not increase. Intro • F-9 will be displayed only during the Diagnostic Mode. • Wash cycle will go into a default time table for heat on. Solution: Possible failure to inline heater, WPS, or control board. - Page 41 Review / Check on learning Dishwasher Sub Systems Service & Diagnostics • Tub & Structure • Diagnostic Test • Door Assembly • Fail Codes • Upper & Lower Racks • Electrical • Filtration Dishwasher Components Intro • Control Board • WPS •...
- Page 42 Questions Intro...
