Dacor Epicure ED24 Installation Instructions Manual

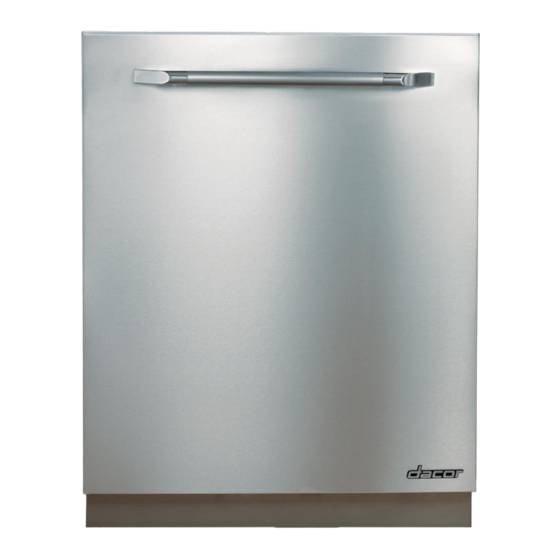

24-inch dishwasher
Hide thumbs
Also See for Epicure ED24:
- Use and care manual (32 pages) ,
- Installation instructions manual (17 pages) ,
- Installation instructions manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dacor Epicure ED24
Summary of Contents for Dacor Epicure ED24
-
Page 1: Installation Instructions
Installation Instructions 24 - Inch Dishwasher For use with models: ED24, ID24, MDH24, MDV24 and PD24 Part No. 101891 Rev. L... -
Page 2: Table Of Contents
If You Need Help... If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the Dacor Distinctive Service line. Whenever you call, have the model and serial number of the appliance ready. -
Page 3: Important Safety Instructions
A qualified technician must complete the installation of this built-in appliance. The owner is responsible to make sure the dishwasher is properly installed. Improper connection of the electrical wiring may create an electric shock or fire hazard and may result in damage to the dishwasher’s electrical system. -
Page 4: General Safety Precautions
The customer should not install, repair or replace any part of the dishwasher unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other service. Contact the nearest Dacor authorized service representative for examination, repair or adjustment. -
Page 5: Design Specifications
Design Specifications Product Specifications Technical Dimensions 23 7/8” (60.6 cm) Door style varies with model number. Water Pressure 20 to 120 psi (138 - 827 kPa) Water Temperature 120 °F, minimum Electrical Circuit 15 Amp. 120 Vac, 60 Hz dedicated, grounded, circuit. Requirements Total Connected 12 Amp. -
Page 6: Preparing For Installation
(see page 3). Dimensions shown provide minimum clearances, unless otherwise noted. The floor must be solid, level and all cut-out surfaces must be at right angles. The dishwasher must be secured to the adjacent cabinets using the anti-tip brackets for safety and proper operation. -
Page 7: Important
• The water pressure must be between 20 and 120 psi (138-827 kPa). The household hot water heater must supply a minimum of 120 °F water to the dishwasher location for best results. • Install a valve for the hot water supply line where it is easily accessible after the dishwasher is installed. -
Page 8: Installation Instructions
• With the assistance of at least one person, remove the dishwasher from the shipping carton. Place the unit to the side of the cabinet opening. • Remove all of the packing materials from inside and outside of the unit. -
Page 9: Electrical Connection
Before connecting the wiring and the plumbing, push the dishwasher into position with the back of the unit about six (6) inches in front of the cut-out. Remove the two (2) screws that hold the toe kick assembly in place and remove it. - Page 10 With power turned off at the circuit breaker or fuse box, remove the house junction box cover. • Feed the dishwasher wiring into the junction box. Secure the wire with a UL/CSA approved strain relief. • Strip and connect the wires according to one of the wiring diagrams below.
-
Page 11: Plumbing Connections
A level unit is very important to proper operation. Be sure to level the unit front to back and side to side. Level the dishwasher using the adjustable legs on the front and back before sliding the unit into the cut-out. - Page 12 Pull the electrical wiring and both hoses (drain and water supply) through the utility access hole(s) in the side(s) of the cabinet as you slide the dishwasher into the opening. Stop when the dishwasher contacts the back wall or aligns with the front cabinet opening.
-
Page 13: Cabinet Panel Installation
12 lbs. (5.4 kg). • Install the custom panel and/or custom toe kick according to the instructions on the included template (Dacor PN 101934). If the panel requires decorative door hardware, attach it before panel installation. CAUtION •... -
Page 14: Drain Line Installation
Drain Line Installation CAUtION • For proper dishwasher operation and drainage, the drain line must be routed through the bottom of the cabinet and up to the drain or air gap connection. The drain hose or air gap outlet must connect above the sink trap. -
Page 15: Verifying Proper Operation
If you need service, be sure to have the model and serial numbers available when you call. See the inside cover for location. Dacor is not responsible for the cost of correcting problems caused by a faulty installation. - Page 16 Dacor ● Phone: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
