6

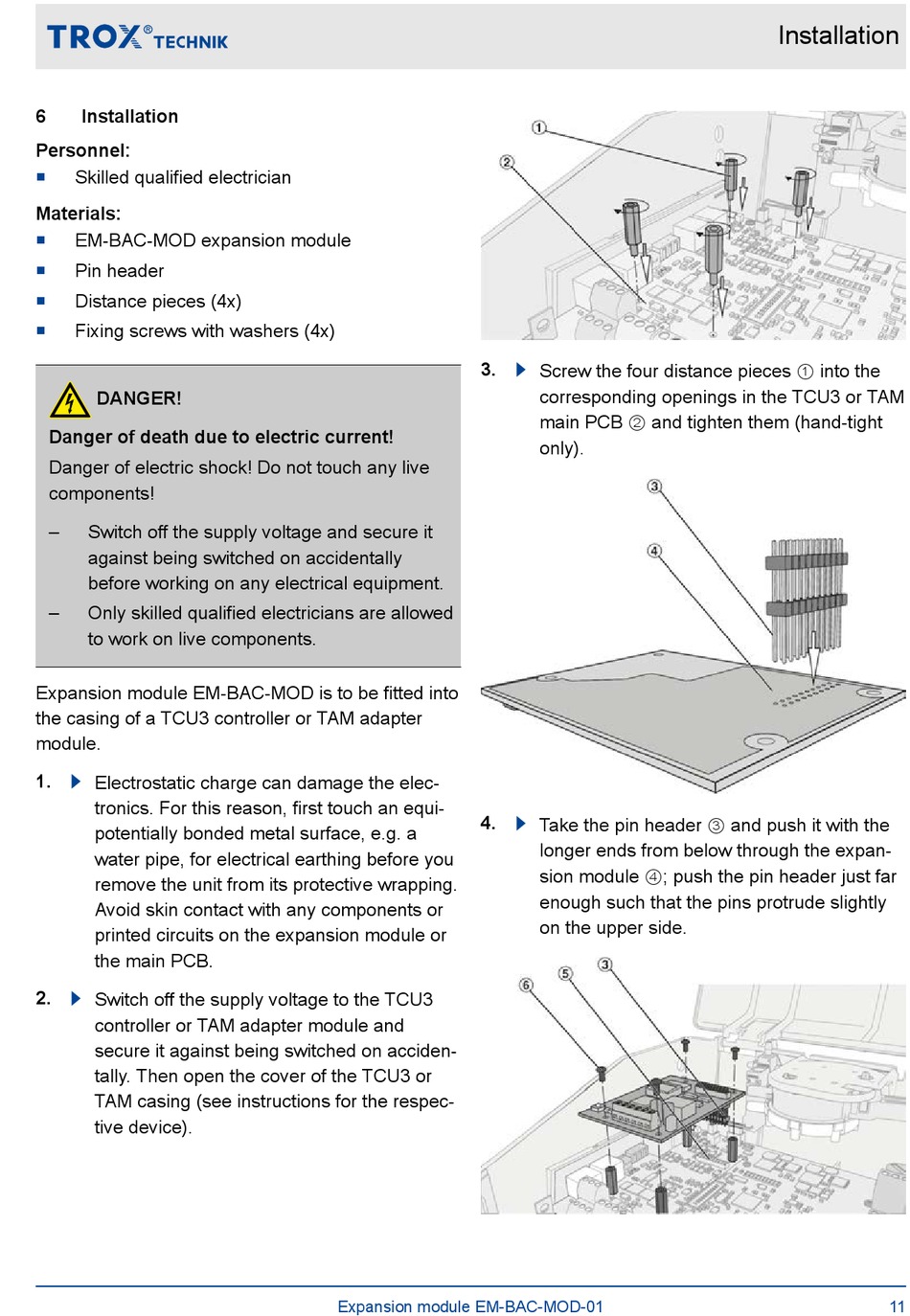

Installation

Personnel:
Skilled qualified electrician

Materials:
EM-BAC-MOD expansion module

Pin header

Distance pieces (4x)

Fixing screws with washers (4x)

DANGER!
Danger of death due to electric current!
Danger of electric shock! Do not touch any live
components!
– Switch off the supply voltage and secure it
against being switched on accidentally
before working on any electrical equipment.
– Only skilled qualified electricians are allowed
to work on live components.
Expansion module EM-BAC-MOD is to be fitted into
the casing of a TCU3 controller or TAM adapter
module.
1.
Electrostatic charge can damage the elec-
tronics. For this reason, first touch an equi-
potentially bonded metal surface, e.g. a
water pipe, for electrical earthing before you
remove the unit from its protective wrapping.
Avoid skin contact with any components or
printed circuits on the expansion module or
the main PCB.
2.
Switch off the supply voltage to the TCU3
controller or TAM adapter module and
secure it against being switched on acciden-
tally. Then open the cover of the TCU3 or
TAM casing (see instructions for the respec-
tive device).
3.
4.
Expansion module EM-BAC-MOD-01
Screw the four distance pieces ① into the
corresponding openings in the TCU3 or TAM
main PCB ② and tighten them (hand-tight
only).
Take the pin header ③ and push it with the
longer ends from below through the expan-
sion module ④; push the pin header just far
enough such that the pins protrude slightly
on the upper side.
